SCHENKER ZEN TWIN 200 NAUTICAL WATERMAKER 200 LT/H

The Schenker ZEN Twin 200 is a reverse osmosis watermaker equipped with two 4021 carbon vessels, capable of producing up to 200 L/h of fresh water.

The Schenker ZEN Twin 200 is a high-quality marine watermaker that offers excellent performance and operational flexibility. This system is based on two independent desalination units, both controlled by a single remote touch panel, allowing either both machines to run simultaneously or just one unit, providing maximum versatility and redundancy.

With a production capacity of 200 liters per hour, the Schenker ZEN Twin 200 can supply a significant amount of desalinated fresh water, making it ideal for various types and sizes of vessels, such as 55/65 ft sailing yachts, 50/60 ft catamarans, and 50/60 ft motorboats.

One of the distinctive features of this Schenker ZEN Twin 200 watermaker is its power supply flexibility. It can run on both direct current (12–24 VDC) and alternating current (AC), making it compatible with different onboard energy sources.

The reverse osmosis system is equipped with automatic pressure regulation, high-pressure shutdown, low-voltage protection, and cycling absence protection, ensuring safety and efficiency during all phases of operation.

The watermaker is supplied complete with:

• Pair of watermakers with Energy Recovery System

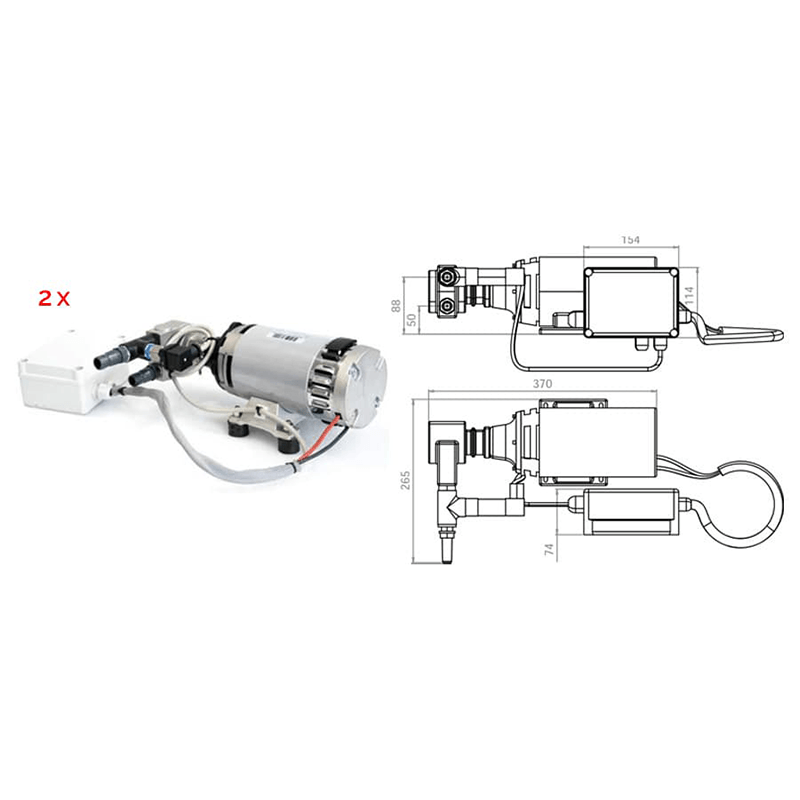

• Pair of feed pumps with filter
• Pair of activated carbon filters with solenoid valve
• Mesh filter
• Filter wrench
• Non-return valve
• Freshwater hose (20 m)
• Remote control panel
• Installation kit (fittings and screws)

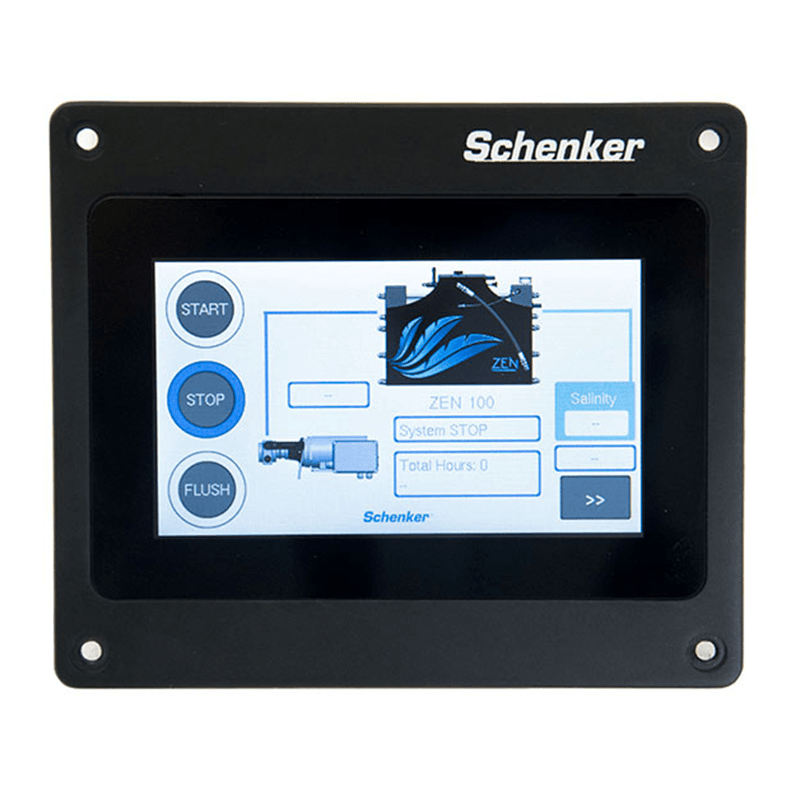

The remote touch panel allows intuitive management of the reverse osmosis system and provides numerous practical functions.

REMOTE PANEL FUNCTIONS

• Remote start/stop
• Timer
• Automatic flushing
• Intensive flushing
• Periodic flushing
• Hour counter
• Automatic start-up
• Maintenance assistance

TECHNICAL SPECIFICATIONS SCHENKER ZEN TWIN 200

Production: 200 L/h
Daily production: 4800 L/day
Number of vessels: 2
Vessel type: 4021
Membranes: High-performance tri-polyamide
Pressure regulation: Automatic
Salinity monitoring: Automatic
Power supply: 12 / 24 / 48 VDC - 230 VAC
Frequency: 50 Hz
Installed power: 0.8 kW
Length: 832 mm
Width: 400 mm
Height: 522 mm
Weight: 102 kg
