FENZI G4 Digital Tank 9000LT

The FENZI G4 Digitale Cisterna 9000LT is an innovative tank designed for the storage and dispensing of diesel,
approved by the Ministry of the Interior according to the D.M. of 22/11/2017. The FENZI G4 1000 LT
represents a versatile and safe solution for a wide range of needs, from small vehicle fleets to private uses.

Main Features of the FENZI G4 Digitale Cisterna 9000LT:

Capacity and Structure:

The FENZI G4 Digitale Cisterna 9000LT is ideal for those who need a compact and efficient tank.
Painted in standard green, it guarantees weather resistance and a pleasant appearance.

Included Accessories:

The FENZI G4 Digitale 9000LT comes with a series of accessories that ensure safe and efficient operation:

Containment basin at 110% to prevent fuel leaks.
Dispenser available in cube or column versions, depending on needs.
4-meter rubber hose with automatic nozzle.

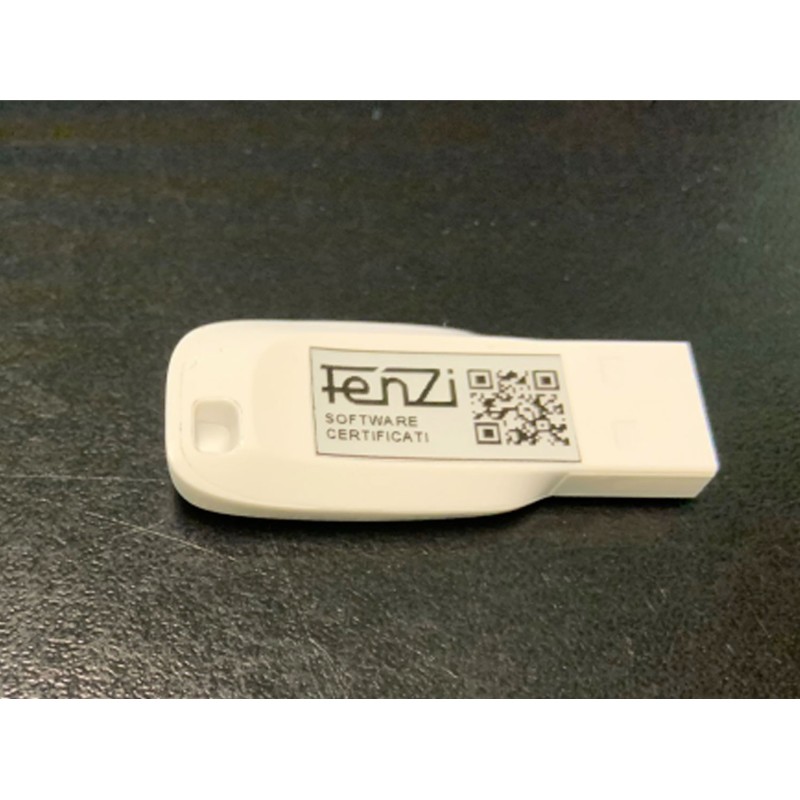

Control software for monitoring dispensing, essential for managing fuel use.
Cartridge filter to ensure fuel purity.
Various fittings and complete documentation for easy installation.

Technology and Safety:

The FENZI G4 Digitale 9000LT incorporates several advanced technical features to ensure safe and
reliable operation:

3” quick-connect loading cap in bronze, lockable for added security.
90% load limiter valve to prevent tank overloading.
1”1/2 bronze vent mushroom with flame arrester mesh for safe ventilation.
External visible level indicator with float for easy fuel monitoring.
420 mm manhole with bolts and gasket for easy internal access.
Lifting eyes for empty lifting, facilitating tank handling.
Bottom drain sleeve with safety cap for periodic cleaning.
Grounding and equipotential bonding to ensure electrical safety.
1” external suction connection with non-return valve.
1” ball valve for precise fuel flow control.
1” galvanized steel pipe for connection to the dispensing unit with flexible terminal.

Available Dispensers for FENZI G4 Digitale 9000LT:

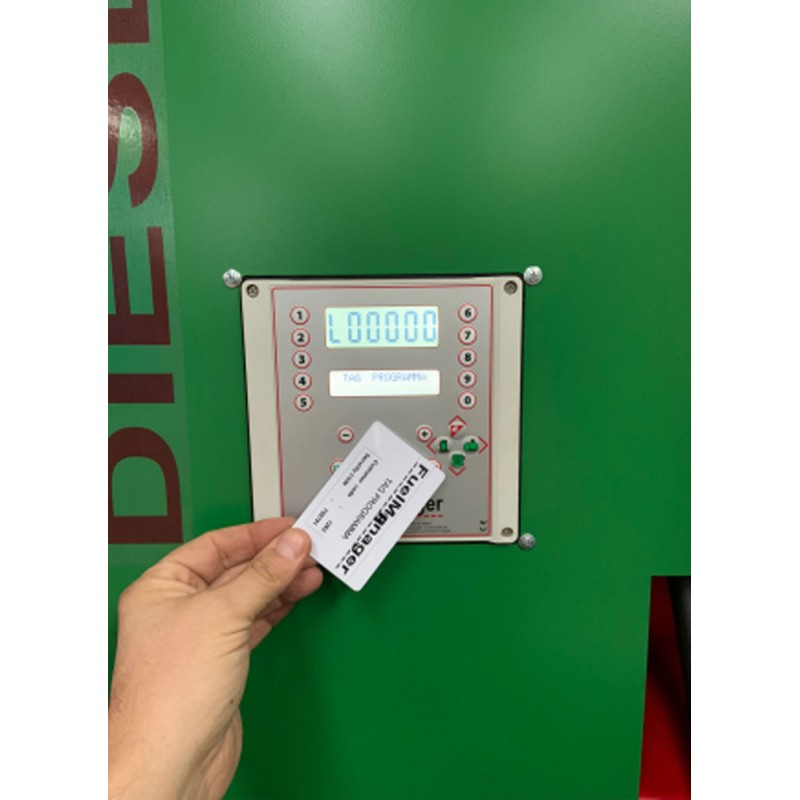

Cube: The cube dispenser unit is equipped with user management and can be integrated with
control software installable on a computer. It is available with flow rates of 50 or 70 lt/min at 220 Volts.

Columns: Columns are available in mechanical and digital versions, ideal for refueling small users or
private fleets. Available flow rates are 50, 70, and 90 lt/min, with power supply at 220/380 Volts.

Additional Accessories:

To further enhance the functionality of the FENZI G4 Digitale 9000LT, various accessories are available:

Sun protection canopy.
Side cover for the dispenser.
Interchangeable cartridge filter kit for easier maintenance.
Extension kit for all pump groups.

Dimensions of the FENZI G4 Digitale 1000 LT:

Capacity: 1000 liters Width: 1200 mm Length: 2000 mm Height: 2100 mm

In summary, the FENZI G4 Digitale Cisterna 9000LT is an innovative tank that provides a safe, complete,
and versatile solution for the storage and dispensing of diesel. With its advanced technology and
a wide range of accessories, the FENZI G4 Digitale 9000LT is an ideal choice for multiple applications,
always ensuring maximum efficiency and safety.

If you are looking for a product like FENZI G4 Digital Cistern 9000LT Cistern with different characteristics, check out HERE.

Images and data purely indicative.
