FENZI G4 Digital Tank 2300LT

The FENZI G4 Digital Tank 2300LT is an innovative tank designed for the storage and dispensing of diesel fuel,
approved by the Ministry of the Interior according to the decree of 22/11/2017. The FENZI G4 2300LT
represents a versatile and safe solution for a wide range of needs, from small vehicle fleets to private use.

Main Features of the FENZI G4 Digital Tank 2300LT

Capacity and Construction:

The FENZI G4 digital tank with a capacity of 2300 liters is perfect for those seeking a compact and
efficient solution. Painted in standard green, it offers weather resistance and an attractive appearance.

Included Components:

The 2300-liter FENZI G4 digital tank comes with a series of accessories that ensure safe and
efficient operation:

110% containment basin to prevent fuel leaks.
Dispenser available in cube or column version, depending on needs.
4-meter rubber hose with automatic nozzle.

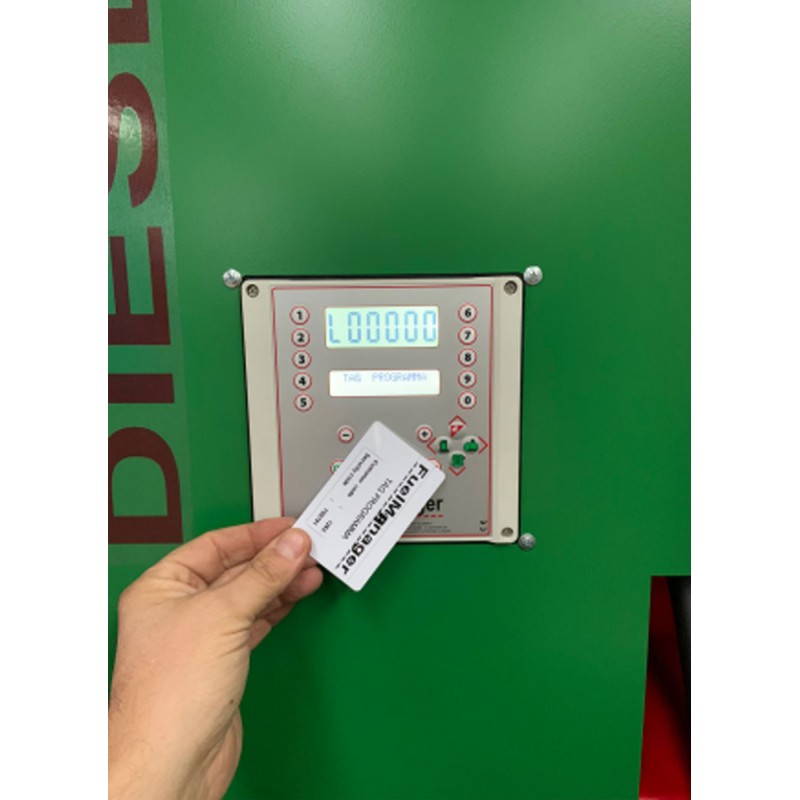

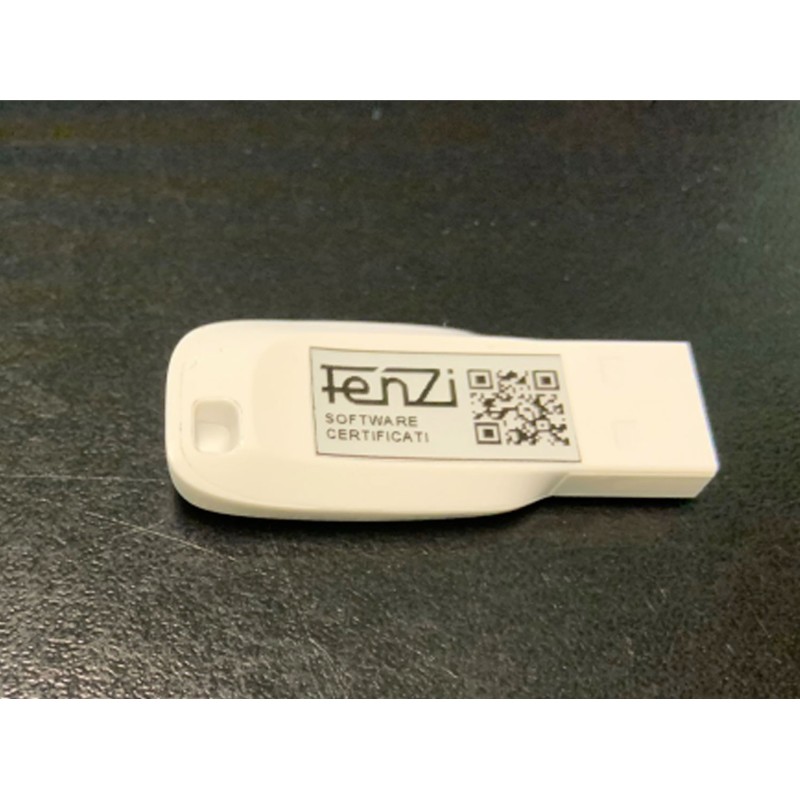

Control software to monitor fuel usage.
Cartridge filter to ensure fuel cleanliness.
Various fittings and complete documentation for easy installation.

Technology and Safety:

The FENZI G4 Digital 2300LT incorporates several advanced technical features to ensure safe and
reliable operation:

3” quick-release bronze loading cap, lockable for added security.
90% load limiter valve to prevent tank overloading.
1”1/2 bronze vent cap with flame arrestor for safe ventilation.
External float-level indicator for easy fuel monitoring.
420 mm manhole with bolts and gasket for easy internal access.
Eyebolts for empty lifting, facilitating tank handling.
Bottom drain sleeve with safety cap for periodic cleaning.
Grounding and equipotential bonding point for electrical safety.
1” external suction fitting with non-return valve.
1” ball valve for precise fuel flow control.
1” galvanized steel pipe for connection to the dispensing unit with flexible terminal.

Available Dispensers for FENZI G4 Digital 2300LT:

Cube:The Cube dispensing unit features user management and can be integrated with
control software installable on a computer. It is available with flow rates of 50 or
70 liters/min at 220 volts.

Columns:The columns are available in mechanical and digital versions, ideal for fueling small users or
private fleets. Available flow rates are 50, 70, and 90 liters/min, with power supply at 220/380 volts.

Additional Accessories:

To further optimize the performance of the FENZI G4 Digital 2300LT, several accessories are offered:

Canopy for sun protection.
Side cover for the dispenser.
Kit of interchangeable cartridge filters for easy maintenance.
Extension kit for all pump units.

Dimensions of the FENZI G4 Digital 2300LT:

Capacity: 2300 liters
Width: 1200 mm
Length: 2000 mm
Height: 2100 mm

In summary, the FENZI G4 Digital Tank 2300LT is an innovative tank that provides a safe, comprehensive,
and versatile solution for the storage and dispensing of diesel fuel. With its advanced technology and
a wide range of accessories, the FENZI G4 Digital 2300LT is an ideal choice for multiple applications,
always ensuring maximum efficiency and safety.

If you are looking for a product like FENZI G4 Digital Tank 2300LT Cistern with different characteristics, check out HERE.

Images and data purely indicative.
