FENZI G4 Digital Tank 1500LT

The FENZI G4 Digital Tank 1500LT is an innovative tank designed for the storage and
dispensing of diesel fuel, approved by the Ministry of the Interior according to the
D.M. of 22/11/2017. The FENZI G4 1500 LT represents a versatile and safe solution for
a wide range of needs, from small vehicle fleets to private uses.

Main Features of the FENZI G4 Digital 1500LT:

Capacity and Construction:

The FENZI G4 Digital 1500 liter tank is ideal for those who need a compact and
efficient solution. Painted in standard green, it offers resistance to weather conditions and
a pleasant appearance.

Included Components:

The FENZI G4 Digital 1500 liter tank is equipped with numerous accessories that
ensure safe and efficient operation:

Containment basin at 110% to prevent possible fuel leaks.
Dispenser option between cube or column, depending on use.
4-meter rubber hose with automatic nozzle.

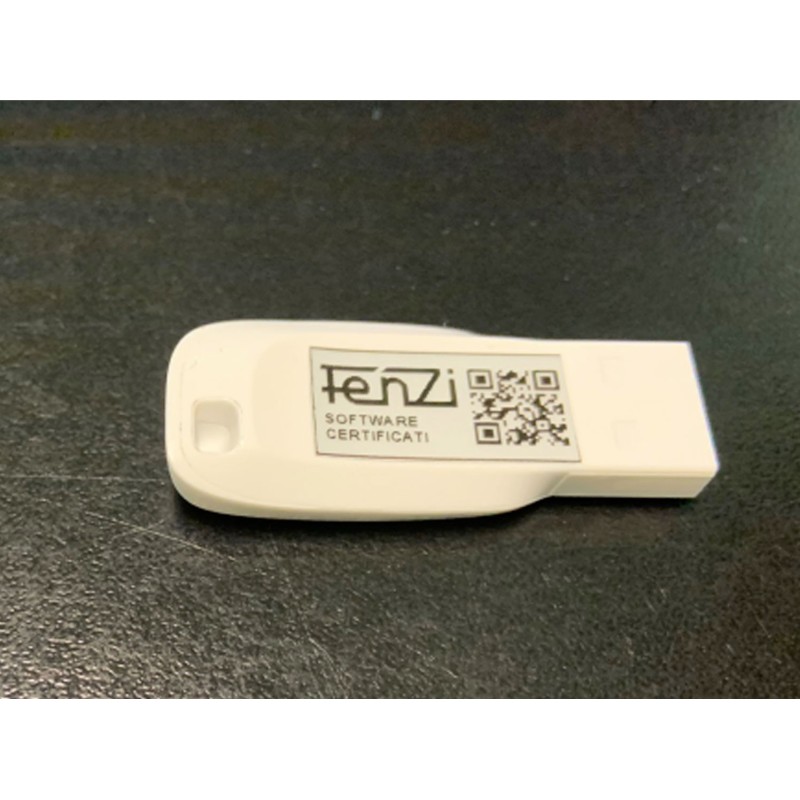

Software for dispensing control, essential for monitoring fuel usage.
Cartridge filter to ensure fuel cleanliness.
Various fittings and complete documentation for easy installation.

Technology and Safety:

The FENZI G4 Digital 1500LT incorporates several advanced technical features to
ensure safe and reliable operation:

3” quick-release bronze filling cap, lockable for added security.
90% load limiter valve to prevent tank overloading.
1”1/2 bronze vent mushroom with flame arrestor mesh for safe ventilation.
External floating level indicator for easy fuel monitoring.
420 mm manhole with bolts and gasket for easy internal access.
Eyebolts for empty lifting, facilitating tank handling.
Bottom drain sleeve with safety cap for periodic cleaning.
Grounding and equipotential bonding for electrical safety.
1” external suction connection with non-return valve.
1” ball valve for precise fuel flow control.
1” galvanized steel tube for connection to the dispensing unit with flexible terminal.

Available Dispensers for FENZI G4 Digital 1500LT:

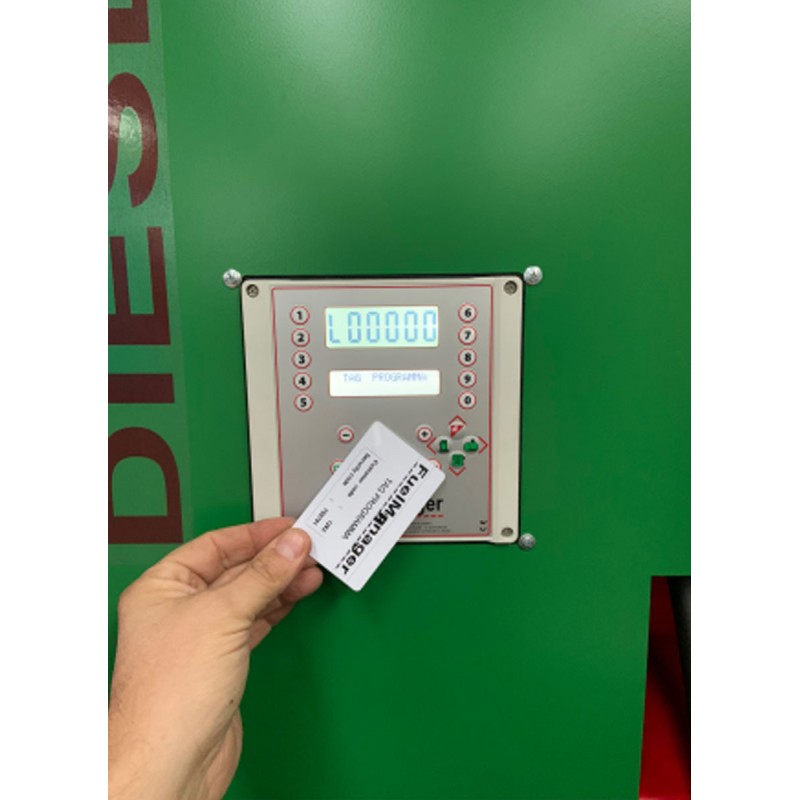

Cube:The cube dispenser unit is equipped with user management and can be integrated
with control software installable on a computer. It is available with flow rates of
50 or 70 lt/min at 220 Volts.

Columns:The columns are available in mechanical and digital versions, ideal for
refueling small users or private fleets. Available flow rates are 50, 70, and 90 lt/min, with
power supply at 220/380 Volts.

Additional Accessories:

To further enhance the performance of the FENZI G4 Digital 1500LT, various accessories
are offered:

Canopy for sun protection.
Side cover for the dispenser.
Interchangeable cartridge filter kit for easier maintenance.
Extension kit for all pump groups.

Dimensions of the FENZI G4 Digital 1500 LT:

Capacity: 1500 liters
Width: 1200 mm
Length: 2000 mm
Height: 2100 mm

In summary, the FENZI G4 Digital Tank 1500LT is an innovative tank that provides a safe,
complete, and versatile solution for the storage and dispensing of diesel fuel.
With its advanced technology and a wide range of accessories, the FENZI G4 Digital 1500LT is
an ideal choice for multiple applications, always ensuring maximum efficiency and safety.
