FENZI G4 Digital Tank 1000LT

The FENZI G4 Digital Tank 1000LT is an innovative tank designed for the storage and
dispensing of diesel, approved by the Ministry of the Interior according to the D.M. of 11/22/2017.
The FENZI G4 1000LT represents a versatile and safe solution for a wide range of needs,
from small vehicle fleets to private use.

Main Features of the FENZI G4 Digital Tank 1000LT:

Capacity and Construction:

The FENZI G4 Digital Tank 1000LT is perfect for those who need a compact yet efficient tank.
Painted in standard green, it offers resistance to atmospheric agents and a pleasant aesthetic.

Included Components:

The FENZI G4 Digitale 1000LT comes with numerous accessories that ensure safe and efficient operation:

110% containment basin to prevent any fuel spills.
Choice of cube or column dispenser, depending on usage.
4-meter rubber hose with automatic nozzle.
Software for dispensing control, essential for monitoring fuel usage.
Cartridge filter to ensure fuel cleanliness.
Various fittings and complete documentation for easy installation.

Technology and Safety:

The FENZI G4 Digitale 1000LT incorporates several advanced technical features to ensure safe and
reliable operation:

3” quick-release bronze loading cap, lockable for greater security.
90% load limiter valve to prevent tank overloading.
1”1/2 bronze vent with flame arrester for safe ventilation.
External visible level indicator with float for easy fuel monitoring.
420 mm manhole with bolts and gasket for easy internal access.
Lifting eyes for empty handling, facilitating tank movement.
Bottom drain sleeve with safety cap for periodic cleaning.
Grounding and equipotentiality socket to ensure electrical safety.
1” external suction port with non-return valve.
1” ball valve for precise fuel flow control.
1” galvanized steel pipe for connection to the dispensing unit with flexible terminal.

Available Dispensers for FENZI G4 Digital 1000LT:

Cube:

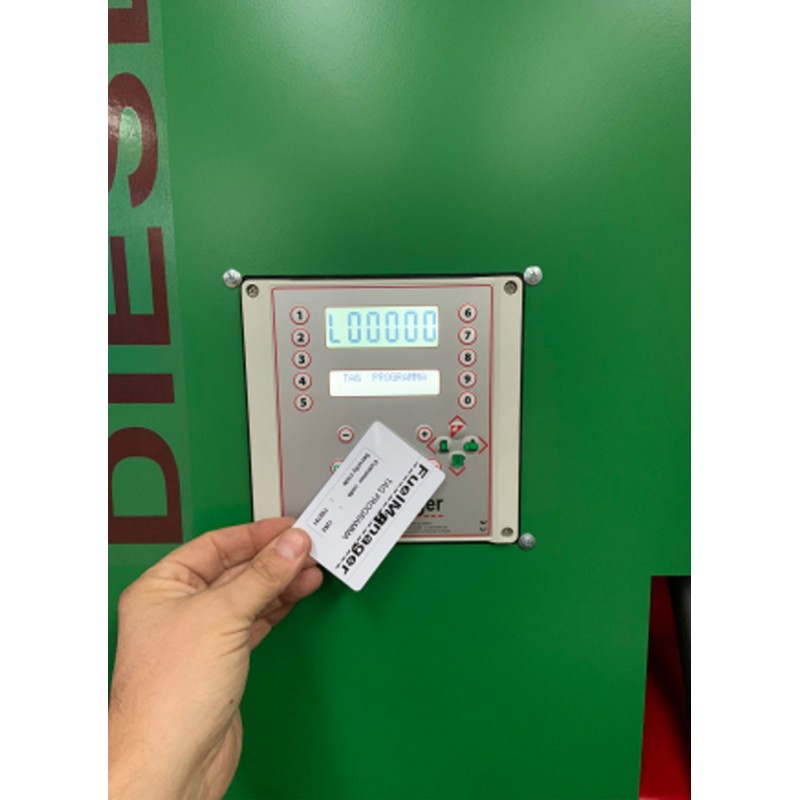

The cube dispenser unit has user management and can be integrated with control software installable
on a computer. It is available with flow rates of 50 or 70 lt/min at 220 volts.

Columns:
The columns are available in mechanical and digital versions, ideal for refueling small users or
private fleets. The available flow rates are 50, 70, and 90 lt/min, with power supply at 220/380 volts.

Additional Accessories:

To further enhance the functionality of the FENZI G4 Digital 1000LT, various accessories are available:

Sun protection canopy.
Side cover for the dispenser.
Interchangeable cartridge filter kit for easier maintenance.
Extension kit for all pump units.

Dimensions of the FENZI G4 Digital 1000LT:

Capacity: 1000 liters
Width: 1200 mm
Length: 2000 mm
Height: 2100 mm

In summary, the FENZI G4 Digital Cistern 1000LT is an innovative tank that provides a safe, complete,
and versatile solution for the storage and dispensing of diesel. With its advanced technology and
a wide range of accessories, the FENZI G4 Digital 1000LT is an ideal choice for multiple applications,
always ensuring maximum efficiency and safety.

If you are looking for a product like FENZI G4 Digital Cistern 1000LT Cistern with different characteristics, check out HERE.

Images and data purely indicative.
