Master Spray GOLD 4200 Electric Line Striping Pump 230V/50Hz

  • New
search
  • Master Spray GOLD 4200 Electric Line Striping Pump 230V/50Hz
  • Master Spray GOLD 4200 Electric Line Striping Pump 230V/50Hz
  • Master Spray GOLD 4200 Electric Line Striping Pump 230V/50Hz
Master Spray
PE4200

The standard equipment setup includes:

HP hose dia. 1/4″ – mt. 10
Paint suction system
Airless gun
Self-cleaning nozzle complete.

Frequency: 50 Hz

Voltage: 230 V

Version: Trolley-mounted

Motor: 1 HP electric

Maximum flow rate with nozzle: 2.5 l/min

Maximum flow rate: 4 l/min

Maximum nozzle size - 1 gun: 0.021

Maximum nozzle size - 2 guns: 0.013

Maximum working pressure: 200 Bar (2900 PSI)

Maximum hose length: 60 m

Weight: 19 Kg

Material inlet: M16x1.5 standard - 1/4″ on request


Technical features
Frequency (Hz)
50
Engine
electric 1 HP
Version
Trolley
Weight (Kg)
19
Voltaggio
230V
Max. flow rate with nozzle:
ltr/min 2,5
Max flow rate ltr/min
4
Max nozzle size
- 1 Pistol 0.021 - 2 Pistols 0.013
Max. Working Pressure Bar (PSI)
200 (2900)
Max. tube length mt.
60
Material Entry
M16x1.5 standard - 1/4″ on request
Details

Master Spray GOLD 4200 Electric Line Striping Pump 230/V 50 Hz

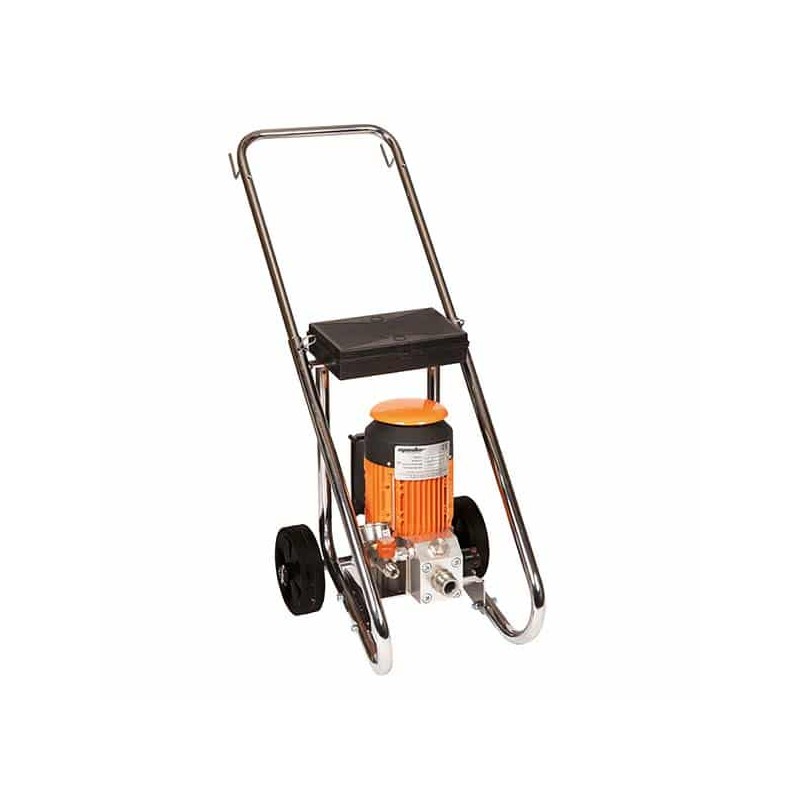

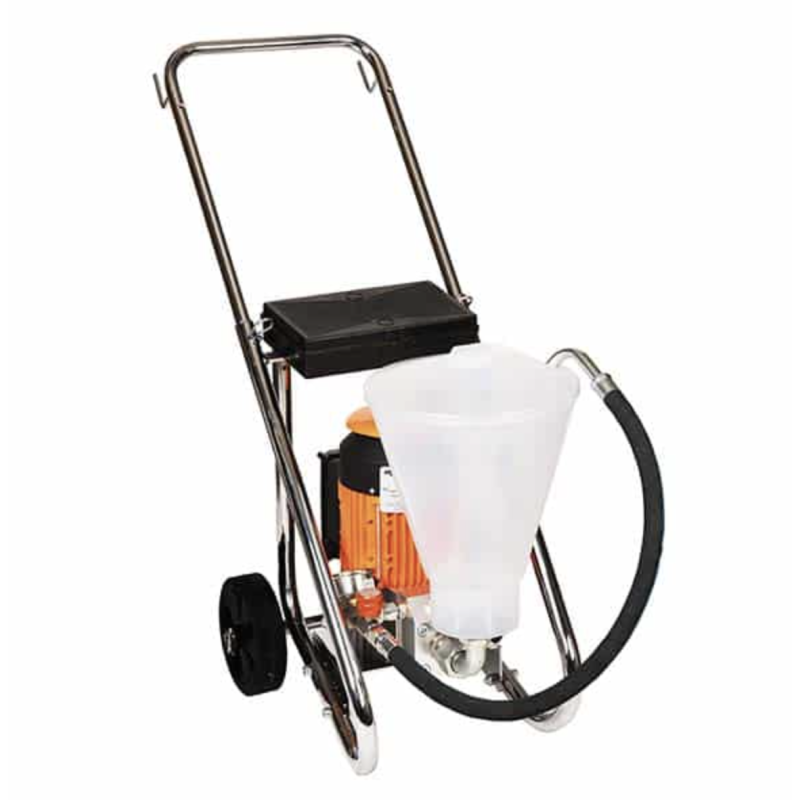

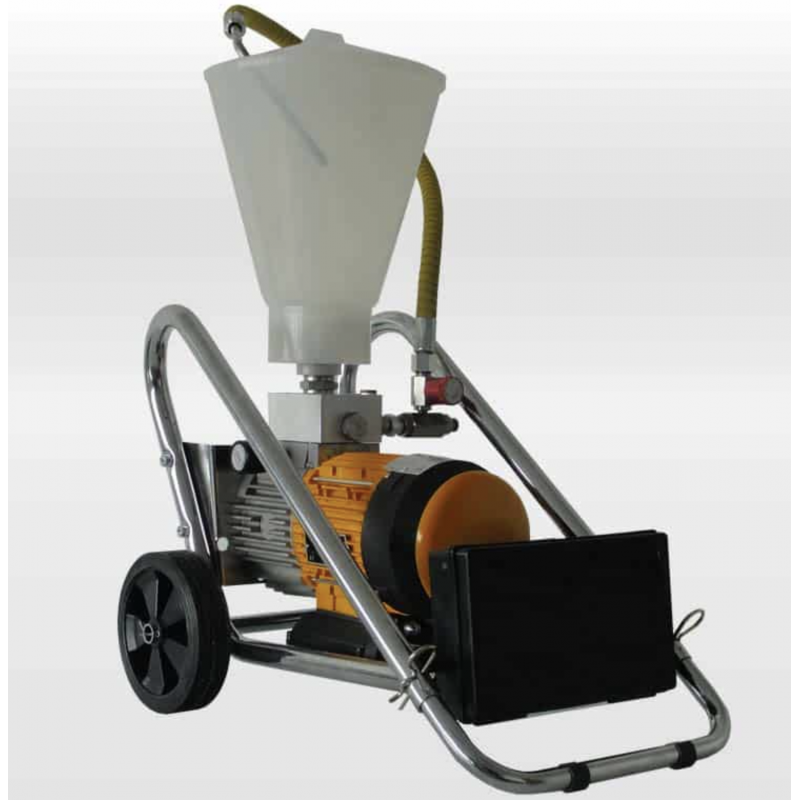

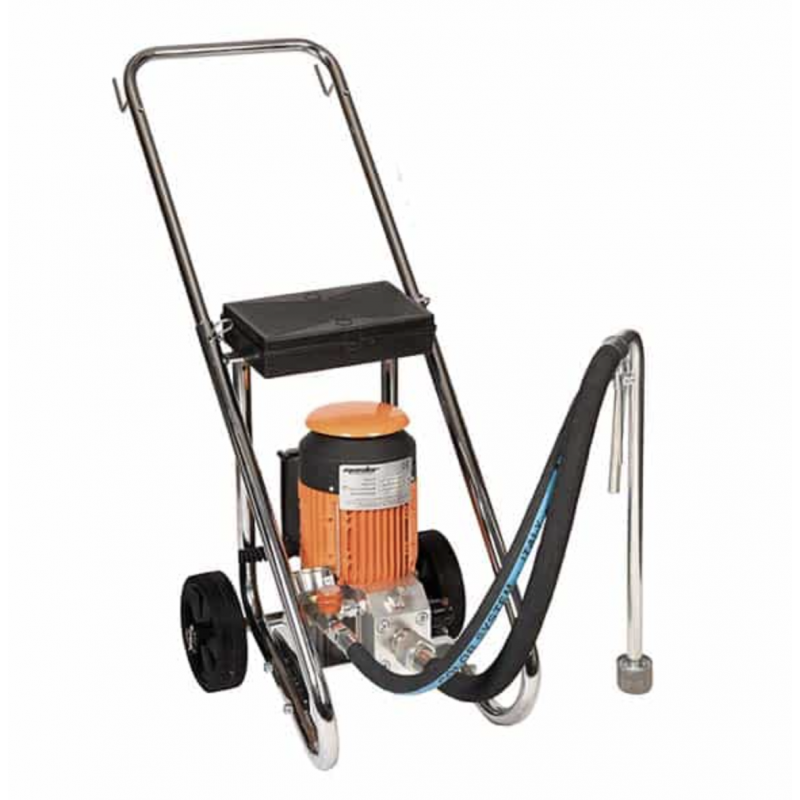

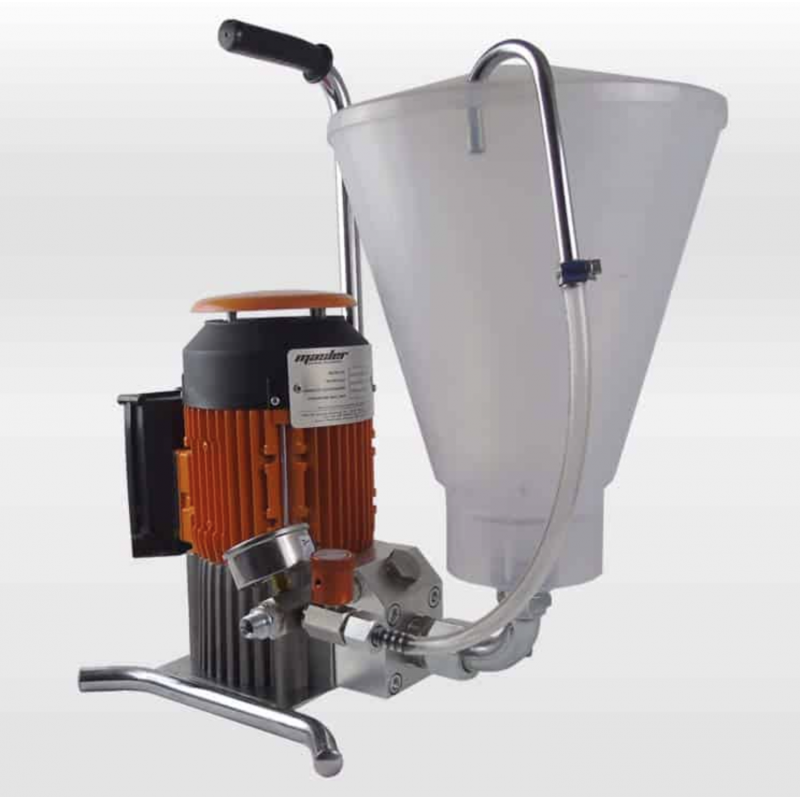

The Master Spray GOLD 4200 Electric Line Striping Pump 230/V 50 Hz is an airless diaphragm machine designed for small and medium-sized spray painting jobs. Its design makes it lightweight and easy to handle, making it easy to transport to the job site.


This model, the Master Spray GOLD 4200 Electric Line Striping Pump 230/V 50 Hz, has a 230V/50Hz power supply and is equipped with a 1 HP motor. The pump structure is wheeled, weighs 19 kg, and is designed to work with a maximum pressure of 200 bar (2900 PSI) and a maximum hose length of 60 metres. Its maximum flow rate is 4 l/min, which is reduced to 2.5 l/min when using the nozzle.


The standard setup of this Master Spray GOLD 4200 Electric Line Striping Pump 230/V 50 Hz includes:


A 1/4″ HP hose x 10 meters.

A paint suction system.

An Airless gun.

A self-cleaning nozzle.

Technical features:

Frequency: 50 Hz

Voltage: 230 V

Version: Trolley-mounted

Motor: 1 HP electric

Maximum flow rate with nozzle: 2.5 l/min

Maximum flow rate: 4 l/min

Maximum nozzle size - 1 gun: 0.021

Maximum nozzle size - 2 guns: 0.013

Maximum working pressure: 200 Bar (2900 PSI)

Maximum hose length: 60 m

Weight: 19 Kg

Material entry: M16x1.5 standard - 1/4″ on request

Are you looking for a professional and reliable solution for marking lines? The Master Spray GOLD 4200 Line Striping Pump is the answer you've been looking for.

Looking for an electric pump with different features? HERE you can find the entire Master Spray range or other specialized brands.



* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
List price
4.880,00 € tax incl.
4.000,00 € tax excl.
Discounted Price
2.903,60 € tax incl.
2.380,00 € tax excl.
