LARIUS DALI LINER PLUS ROAD MARKER WITH 2 GUNS

LARIUS DALI LINER PLUS 18382/1 ROAD TRACKER

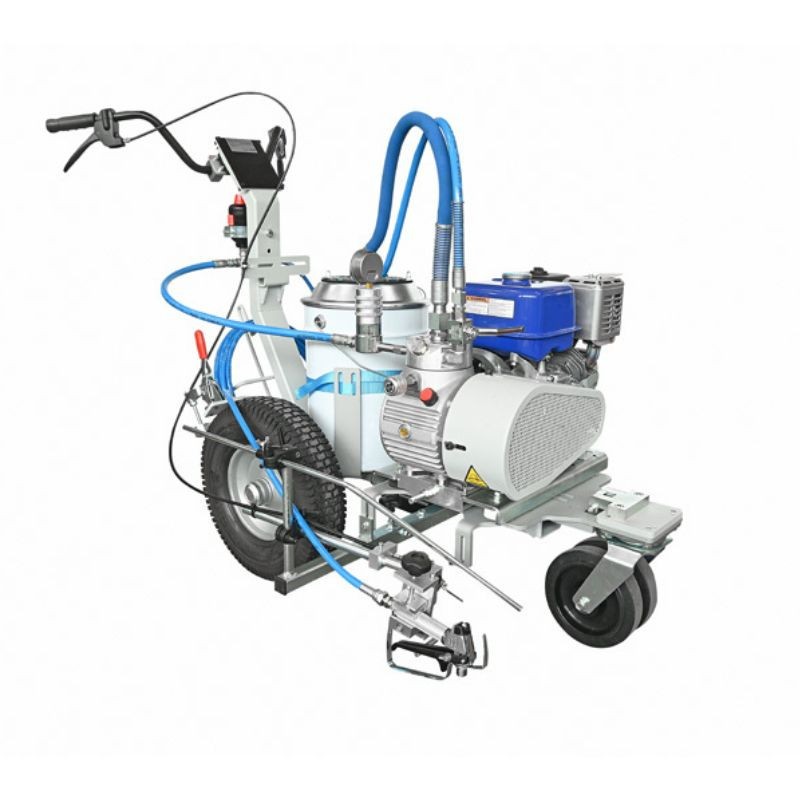

LARIUS DALI LINER PLUS 18382/1 is an airless road marker equipped with a Yamaha petrol engine, capable of delivering a maximum power of 4 KW.

LARIUS DALI PLUS is a self-propelled machine conceived and designed to realize road stripes on particularly tortuous paths with presence of differences in level otherwise difficult to overcome.

The internal combustion engine, mounted on board the trolley of LARIUS DALI PLUS, drives the alternative piston pump and the alternator used to charge the battery pack. Traction on the two front wheels is provided by an electric motor that allows the operator to move easily even on slopes of medium inclination.

LARIUS DALI PLUS allows the marking and the maintenance of all types of strips related to
of all types of stripes related to state roads, highways, pedestrian crossings, parking lots, squares
pedestrian crossings, parking lots, squares and everything that is required by
by the highway code in the field of horizontal signage.
The marking with airless operation has numerous and demonstrated
benefits compared to the line markers with pressurized tanks that
are obsolete compared to airless technology

The paint dries quickly and with just one pass the line is uniformly defined. LARIUS DALI PLUS requires the use of filtered paint specifically for airless applications, which in itself means homogeneous paint with a smooth, uniform consistency that will not crust or become gelatinous or thick.

With LARIUS DALI PLUS, the paint adheres tenaciously to all types of flooring, with excellent visibility and resistance to wear caused by both traffic and weathering.

Each model is complete with:
- Filter with anometer;
- High pressure hose Ø 1/4" connected M16x1.5 of 10 m;
- Suction and recirculation system;
- 2 Manual airless gun AT250;
- 2 Super Fast Clean base;
- Super Fast Clean nozzles 2 x 11-40 / 2 x 13-40 / 2 x 17-40
- Case with tools

TECHNICAL FEATURES LARIUS DALI LINER PLUS 18382/1:

Max. flow rate: 4 l/m
Max pressure: 210 bar
Airless gun: N°2 AT 250
Feeding: Gasoline
Engine power: 4 Kw - 5.5 Hp
Material tank capacity: 2 x 50 l
Engine: Yamaha
Nozzle sizes included: 2 x 11-40 - 2 x 13-40 - 2 x 17-40
Colors: 1
Hatching: manual
Applications: Medium duty road maintenance plotting work
Multipurpose: standard sprayer
Front drawbar with swivel and locking wheel
Length: 1600 mm
Height: 1100 mm
Width: 900 mm
Vibrations: L_eq(8h)=1.8 m/s²

Looking for a road marker with different features? Here you can find the whole range of LARIUS or other brands specialized in this field.

Images and technical data are not binding and may be subject to revisions by the manufacturer.
