BBC Blade stop control: Electromagnetic
Grass Catcher Bag Unloading: Manual
Positions and cutting: 7
Noise level: 100 dB(A)
Length: 2440 mm
Width: 970 mm
Height: 1230 mm
Dry weight: 218 kg
Cutting plate size: 92 cm
Number of blades: 2
Height adjustment: 30 - 80 mm
Grass catcher bag capacity: 280 Lt
Collection time per turf 100mq: 2 min 3 sec
Mulching time per turf 100mq: 0 min 48 sec
Power supply: Gasoline
Engine: Honda
Type: V-Twin OHC 4-stroke
Engine displacement: 530 cc
Engine model: GCV530
Rated motor power: 9.7 KW
Engine revolutions per minute: 2800
Fuel tank capacity: 5.4 Lt
Engine oil capacity: 1.3 Lt
Transmission type: Variable - hydrostatic
Feed speed: Progressive: from 0 to 8.2 Km/h
Tyres
Front wheels (diameter for width - edge): 13 x 5.0 - 6 (inches) (inches)
Rear wheels (diameter for width - edge): 18 x 8.5 - 8 (inches) (inches)
Radius of rotation: 1.8 m
Data sheet
Specific References

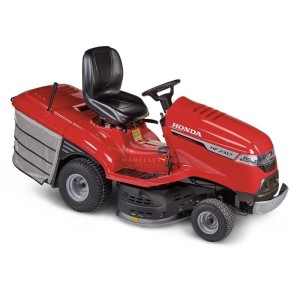

HONDA HF2317HME ltractor designed with a new type of engine, more docile, fluid and easy to drive. Beautifully finished, HONDA HF2317HME is built to give you a beautiful lawn. This sturdy mower is suitable for large lawns and gardens and offers a precise cut with 92 cm blades, hydrostatic control & 280 litre grass catcher bag.
Technical Specifications HONDA HF2317HME:
BBC Blade stop control: Electromagnetic
Grass Catcher Bag Unloading: Manual
Positions and cutting: 7
Noise level: 100 dB(A)
Length: 2440 mm
Width: 970 mm
Height: 1230 mm
Dry weight: 218 kg
Cutting plate size: 92 cm
Number of blades: 2
Height adjustment: 30 - 80 mm
Grass catcher bag capacity: 280 Lt
Collection time per turf 100mq: 2 min 3 sec
Mulching time per turf 100mq: 0 min 48 sec
Power supply: Gasoline
Engine: Honda
Type: V-Twin OHC 4-stroke
Engine displacement: 530 cc
Engine model: GCV530
Rated motor power: 9.7 KW
Engine revolutions per minute: 2800
Fuel tank capacity: 5.4 Lt
Engine oil capacity: 1.3 Lt
Transmission type: Variable - hydrostatic
Feed speed: Progressive: from 0 to 8.2 Km/h
Tyres
Front wheels (diameter for width - edge): 13 x 5.0 - 6 (inches) (inches)
Rear wheels (diameter for width - edge): 18 x 8.5 - 8 (inches) (inches)
Radius of rotation: 1.8 m
Performance so enjoyable you won't want to stop
HONDA HF2317HME lawn mower does everything possible to meet your needs because we know that mowing the lawn is not a job, it's a passion. HONDA HF 2317 HME lawn mower is robustly built with durability and strength in mind. Together with hydrostatically controlled transmissions for smooth & precise control, you'll care for your garden in the easiest and most pleasant way.
Maximum control
Comfort is at your fingertips on HONDA HF2317HME with new ergonomically designed steering wheel. HONDA HF 2317 HME mower also features a steering knob that allows you to quickly turn the steering wheel to operate & manoeuvre near trees & bushes.
Stay charged
Does your phone need charging? No problem when working with a HONDA HF2317HME. Just plug it in and place device in the convenient holder to charge it while you take care of your lawn.
First class comfort
Particular care and attention to detail has been paid to design of seat, which is now the most comfortable ever. The material is durable and soft to the touch and this new design features folding armrests which further increases comfort level of HONDA HF2317HME.
A secure pocket
Practicality is one of strengths of HONDA HF2317HME. This simple and practical accessory allows you to keep your mobile phone always at hand & avoid risk of it accidentally falling while you are working.
Fluid performance
Optiflow® is unique airflow management system created by HONDA that offers superior collection performance with no more clogging of collection duct. Versamow® is also present, a system that allows selective mulching. It allows mulching while mowing the grass, helping to create a natural fertilizer for a healthier lawn.
Built to last
Anti-corrosion paint adds an elegant finish to sturdy steel cutting deck to give HONDA HF2317HME a more pleasant appearance for longer.
If you are looking for a lawn tractor similar to the HONDA HF2417HME but with different features? you can find our entire range HERE.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
