GENSET PTO 20

Reference PTO 20

OUT OF PRODUCTION

Maximum three-phase power: 22.4 KVA

Maximum three-phase power: 17.92 KW

Maximum single-phase power: 7.4 KVA

Maximum single-phase power: 5.92 KW

Voltage: 230/400 V

Motor: Linz E1S13MF/4

Length: 1074 mm

Width: 945 mm

Height: 809 mm

Weight: 150 kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference PTO 20

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 2.88
Maximum power single phase (KVA): 3.6
Maximum power three phase (KW): 15.28
Continuous power three phase (KW): 13.92
Maximum power three phase (KVA): 19.1
Continuous power three phase (KVA): 20
Voltage (V): 230 / 400
Sockets configuration: Presa di corrente trifase CEE 400 V 16 A+ Presa di corrente monofase CEE 230 V 16 A
Engine: Yanmar L70N
Engine rpm (rpm): 1500
Alternator: Sincrono bipolare con spazzole
PTO speed (round/min): 440
Transmission ratio: 1 : 3.5
Length (mm): 720
Width (mm): 460
Height (mm): 510
Dry weight (Kg): 98
Inverter: No
AVR: No
Compound: Yes
Silenced: No
Super silenced: No

Specific References

AC gensets from 1 KVA to 2000 KVA with manual or automatic start.

Thanks to such a wide range, GenSet is able to offer specific solutions in the various fields of application of the generator set, both for continuous use and for emergency use in the event of a mains failure.

All GenSet gensets strictly comply with CE regulations regarding safety of use and control of polluting emissions.

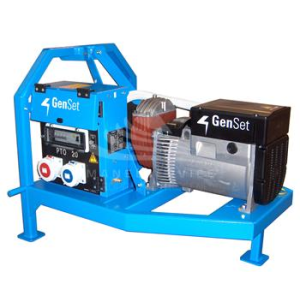

The image is purely indicative

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
