GREEN POWER GP 22 TR/S SINGLE-PHASE / THREE-PHASE PTO GENERATOR 20KVA AVR
      GREEN POWER GP 22 TR/S SINGLE-PHASE / THREE-PHASE PTO GENERATOR 20KVA AVR
      GREEN POWER GP 22 TR/S SINGLE-PHASE / THREE-PHASE PTO GENERATOR 20KVA AVR

      GREEN POWER GP 22 TR/S SINGLE-PHASE / THREE-PHASE PTO GENERATOR 20KVA AVR

      Phase type: Single-phase / Three-phase
      Maximum three-phase power: 22 KVA / 17.6 KW
      Continuous three-phase power: 20 KVA / 16 KW
      Maximum single-phase power: 14.7 KVA / 14.7 KW
      Single-phase continuous use power: 13.5 KVA / 13.5 KW
      Voltage: 400 - 230 V
      Frequency: 50 Hz
      Engine speed: 1500 rpm
      Necessary tractor power: 40 hp
      PTO revs: 430 rpm
      Alternator: MECC ALTE ECP28-M / 4
      Voltage regulator: AVR
      Length: 805 mm
      Width : 580 mm
      Height: 985 mm
      Weight: 175 Kg

      List price
      3,204.94 € tax incl.
      2,627.00 € tax excl.
      Discounted Price
      3,204.94 € tax incl.
      2,627.00 € tax excl.
      Shipping from 50.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: GREEN POWER GP 22 TR/S SINGLE-PHASE / THREE-PHASE PTO GENERATOR 20KVA AVR

      PERSONAL DATA


      Ask a question
      Product: GREEN POWER GP 22 TR/S SINGLE-PHASE / THREE-PHASE PTO GENERATOR 20KVA AVR
      Offer on letterhead
      Product: GREEN POWER GP 22 TR/S SINGLE-PHASE / THREE-PHASE PTO GENERATOR 20KVA AVR
      GREEN POWER
      00808

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      11.7
      Continuous power single phase (KW)
      10.8
      Maximum power single phase (KVA)
      14.7
      Continuous power single phase (KVA)
      13.8
      Maximum power three phase (KW)
      17.6
      Continuous power three phase (KW)
      16
      Maximum power three phase (KVA)
      22
      Continuous power three phase (KVA)
      20
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500
      Poles
      4
      Protection degree
      IP23
      PTO speed (round/min)
      430
      Required tractor power
      29 KW / 40 HP
      Length (mm)
      805
      Width (mm)
      580
      Height (mm)
      985
      Dry weight (Kg)
      175
      Silenced
      No
      Super silenced
      No
      Voltage regulator
      AVR

      Specific References

      New

      GREENPOWER GP22 TR/S PTO GENERATOR 20KVA

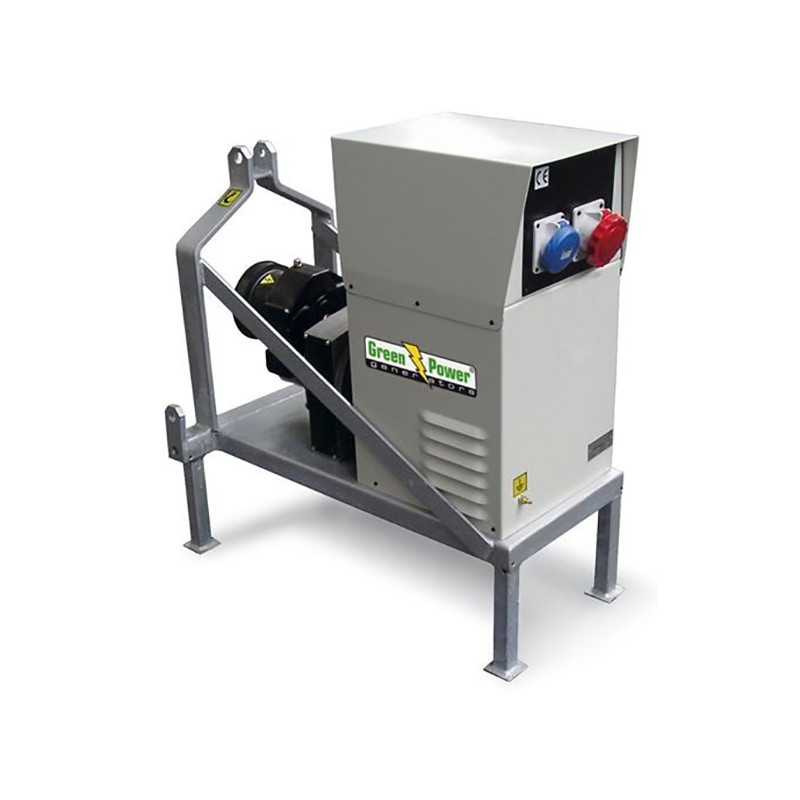

      GREENPOWER GP22 TR/S is a cardan generator complete with MECC ALTE ECP28-M/4 alternator capable of delivering a power of 20KVA.

      The GREENPOWER GP22 TR/S shaft driven generator is very reliable as it has been built and designed using top quality materials. The PTO shaft generator is easy to transport, install and position due to the compact size, this model is ideal to be mounted on a tractor unit.

      The GREENPOWER GP22 TR/S has a required tractor power of 40 HP and a PTO speed of 430 rpm.
      These compact, rugged and easy-to-use generator sets come complete with a 3-point hitch base for secure attachment to any tractor.

      The design and the realization of the generators takes place completely inside the company, peculiarities that allow GreenPower to customize the product and its delivery in extremely short times, also thanks to the presence in stock of more than 1000 engines and alternators.

      GreenPower always ensures the most suitable application for each sector of intervention, from agriculture to construction, from industry to public, from telecommunications to military.

      TECHNICAL FEATURES GREENPOWER GP22 TR/S:

      Phase type: Singlephase / Threephase
      Maximum threephase power: 22 KVA / 17.6 KW
      Continuous threephase power: 20 KVA / 16 KW
      Maximum singlephase power: 14.7 KVA / 14.7 KW
      Singlephase continuous use power: 13.5 KVA / 13.5 KW
      Voltage: 400 - 230 V
      Frequency: 50 Hz
      Engine speed: 1500 rpm
      Necessary tractor power: 40 hp
      PTO revs: 430 rpm
      Alternator: MECC ALTE ECP28-M / 4
      Voltage regulator: AVR
      Length: 805 mm
      Width : 580 mm
      Height: 985 mm
      Weight: 175 Kg

      Are you looking for a shaft generator with different technical features? Here you can find the full range of GreenPower or other brands specializing in the field.

      Images and technical data are not binding.

      Download

      GREEN POWER GP22 TR-S

      Data sheet GREEN POWER GP22 TR-S

      Download (347.31KB)
