AGROWATT AWT 4-15X PTO Generator Single Phase/ Three Phase 14.8 kVA Compound
159753
OUT OF PRODUCTION
Phase type: Single-phase / Three-phase
Engine revs (rpm): 1500
Minimum tractor power (Hp): 45
Maximum single phase power (kVA): 5.9
Maximum power Three-phase (kVA): 14.8
PTO rpm: 430
Voltage (V): 230 / 400
Frequency (Hz): 50
Length (mm): 1135
Width (mm): 640
Height (mm): 915
Weight (Kg): 149
Compound
Technical features
- Phase
- Single phase / Three phase
- Maximum power single phase (KVA)
- 5.9
- Maximum power three phase (KVA)
- 14.8
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- 1 x 400V 32A 3P+N+T CEE - 1 x 230V 32A 2P+T CEE - 1 x 230V SCHUKO
- Engine rpm (rpm)
- 1500
- Poles
- 4
- Protection degree
- IP44
- PTO speed (round/min)
- 430
- Minimum tractor output (HP)
- 45
- Transmission ratio
- 1 : 7
- Length (mm)
- 1135
- Width (mm)
- 640
- Height (mm)
- 915
- Dry weight (Kg)
- 149
- Brushes
- Yes
- Voltage regulator
- Compound
Details
- For outdoor applications (field and home), in case of blackouts and in areas not served by the power grid
- Supplied with multiplier kit and protection, support with 3-point attachment (patented design), electrical panel with multifunction digital display for real-time data reading (voltmeter, frequency meter, ammeter, hour meter)
- Durability over time and maximum protection (thermal-magnetic and differential)
- Warranty 24 months
- Easy packaging and subsequent storage

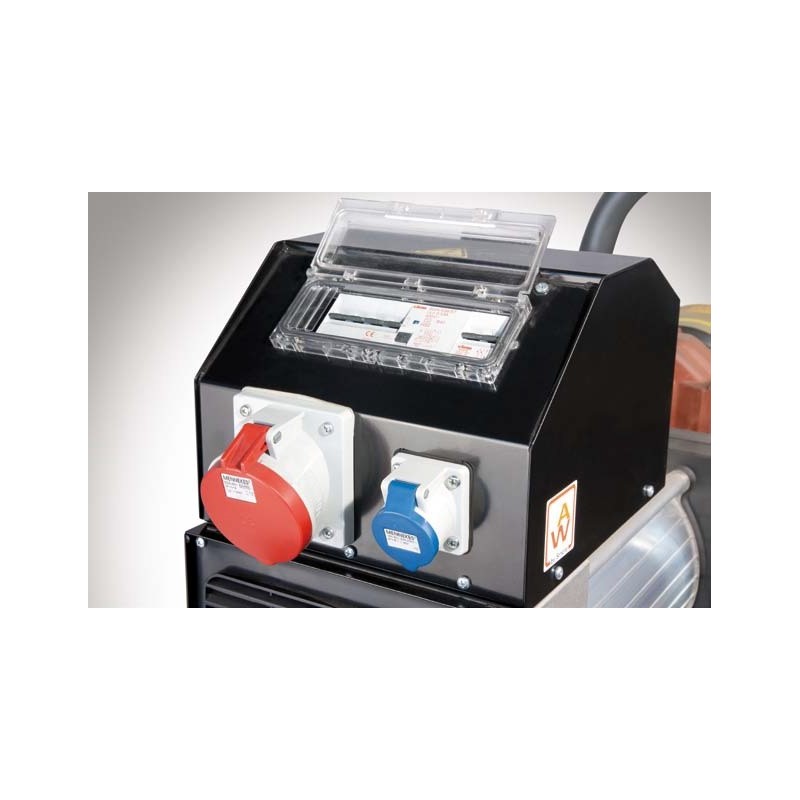

Control Panel with:
• 1 CEE 400V (3P+N+E) 32A
• 1 CEE 230V (2P+E) 16A
• 4 pole magnetothermic switch + earth leakage breaker (Id=0.03A) + 2 pole magnetothermic switch + IP65 cover
• voltmeter + frequencymeter + ammeter + hour counter (digital measurement instrument)
Non-binding images and technical data.
Technical Sheet / Manuals
Technical features
- Phase
- Single phase / Three phase
- Maximum power single phase (KVA)
- 5.9
- Maximum power three phase (KVA)
- 14.8
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- 1 x 400V 32A 3P+N+T CEE - 1 x 230V 32A 2P+T CEE - 1 x 230V SCHUKO
- Engine rpm (rpm)
- 1500
- Poles
- 4
- Protection degree
- IP44
- PTO speed (round/min)
- 430
- Minimum tractor output (HP)
- 45
- Transmission ratio
- 1 : 7
- Length (mm)
- 1135
- Width (mm)
- 640
- Height (mm)
- 915
- Dry weight (Kg)
- 149
- Brushes
- Yes
- Voltage regulator
- Compound
Details
- For outdoor applications (field and home), in case of blackouts and in areas not served by the power grid
- Supplied with multiplier kit and protection, support with 3-point attachment (patented design), electrical panel with multifunction digital display for real-time data reading (voltmeter, frequency meter, ammeter, hour meter)
- Durability over time and maximum protection (thermal-magnetic and differential)
- Warranty 24 months
- Easy packaging and subsequent storage
Control Panel with:
• 1 CEE 400V (3P+N+E) 32A
• 1 CEE 230V (2P+E) 16A
• 4 pole magnetothermic switch + earth leakage breaker (Id=0.03A) + 2 pole magnetothermic switch + IP65 cover
• voltmeter + frequencymeter + ammeter + hour counter (digital measurement instrument)
Non-binding images and technical data.
