AGROWATT AWT 2-12X PTO Generator Single Phase/ Three Phase 12.1 kVA Compound

Reference 154554

OUT OF PRODUCTION

Phase type: Single-phase / Three-phase
Engine revs (rpm): 3000
Minimum tractor power (Hp): 38
Maximum single phase power (kVA): 4.8
Maximum Power Three-Phase (kVA): 12.1
PTO RPM (rpm): 430
Voltage (V): 230 / 400
Frequency (Hz): 50
Length (mm): 929
Width (mm): 640
Height (mm): 915
Weight (Kg): 117
Compound

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 154554

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KVA): 4.8
Maximum power three phase (KW): 9.7
Maximum power three phase (KVA): 12.2
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 230V 32A 2P+T CEE - 1 x 230V SCHUKO
Engine rpm (rpm): 3000
Poles: 2
Protection degree: IP44
PTO speed (round/min): 430
Minimum tractor output (HP): 38
Transmission ratio: 1 : 7
Length (mm): 929
Width (mm): 640
Height (mm): 915
Dry weight (Kg): 117
Brushes: Yes
Voltage regulator: Compound

Specific References

- For outdoor applications (field and home), in case of blackouts and in areas not served by the power grid
- Supplied with multiplier kit and protection, support with 3-point attachment (patented design), electrical panel with multifunction digital display for real-time data reading (voltmeter, frequency meter, ammeter, hour meter)
- Durability over time and maximum protection (thermal-magnetic and differential)
- Warranty 24 months
- Easy packaging and subsequent storage

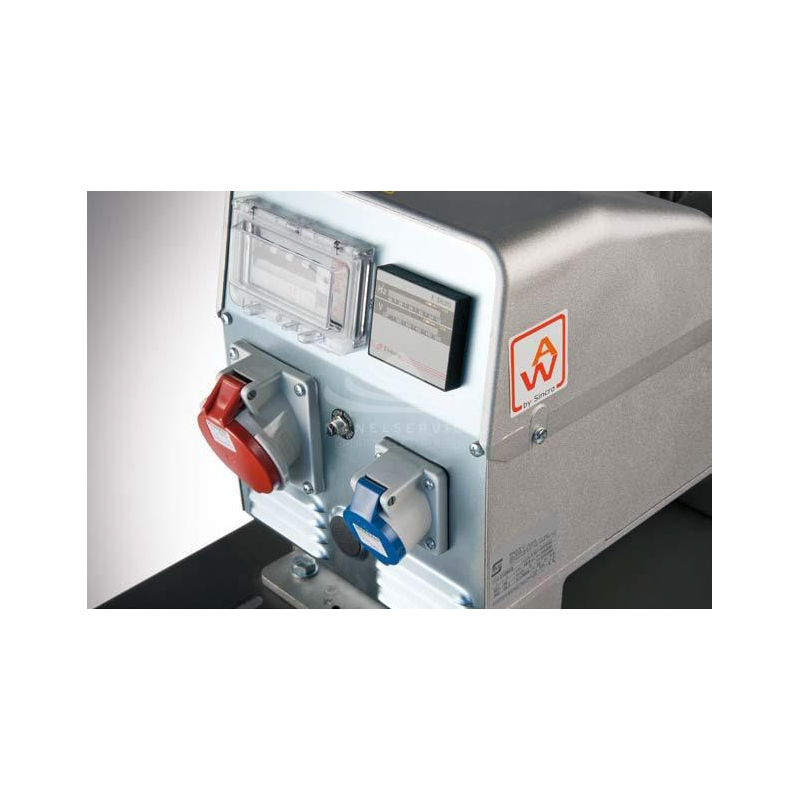

Control Panel with:
• 1 CEE 400V (3P+N+E) 32A
• 1 CEE 230V (2P+E) 16A
• 1 single phase thermal prot.
• 4-pole magnetothermic switch + earth
leakage breaker (Id = 0.03A) + IP65 cover
• voltmeter + frequencymeter

Non-binding images and technical data.
