LARIUS MINIPEGASO - Cementitious materials sprayer Turbo Gun
      LARIUS MINIPEGASO - Cementitious materials sprayer Turbo Gun

      LARIUS MINIPEGASO - Cementitious materials sprayer Turbo Gun

      20871

      Power supply: Compressed air
      Maximum water flow: 40 l/m
      Tube length: from 0 to 30 mt depending on the material
      Supported pipe sizes: Diam 19 x 25 Standard
      Supported pipe sizes: Diam 25 x 33 Standard
      Maximum fluid pressure: 7 bar
      Maximum air pressure: 7 bar
      Tank capacity: 50 L
      Dimensions: 1000x550x950 mm
      Weight: 47 Kg
      Load height: 800 mm
      Maximum air pressure: 8 bar 116 psi
      Maximum fluid pressure (Turbo Gun): 20 bar 290 psi
      Maximum fluid pressure (Tex or Hopper Gun): 10 bar 145 psi

      List price
      4,057.72 € tax incl.
      3,326.00 € tax excl.
      Discounted Price
      2,840.40 € tax incl.
      2,328.20 € tax excl.
      Shipping from 80.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      LARIUS
      20871

      Data sheet

      Pump type
      Membrane Pump
      Maximum output capacity (Lt/min)
      40
      Pressure (bars)
      7 max
      Tank capacity (L)
      50
      Debris size capacity (mm)
      3
      Acoustic pressure
      60 dB(A)
      Length (mm)
      1000
      Width (mm)
      550
      Height (mm)
      950
      Dry weight (Kg)
      47
      Feed Type
      Aria compressa
      Version
      Trolley
      Type of pumping group
      Peristaltic Pump
      Compressor
      1.5 kW
      Maximum fluid pressures (bar)
      7
      Tube's lenght (Mt.)
      da 0 a 30 mt a seconda del materiale
      Product type
      Pompa

      Specific References

      New

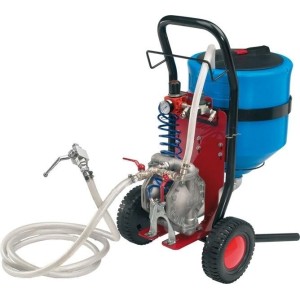

      Sprayer LARIUS MINIPEGASO

      The MINIPEGASO equipment is a pneumatic equipment, used for spraying cement-filler materials for internal and external surfaces. Double membrane pneumatic spray pump.
      The equipment requires the use of a compressor for operation.

      Complete with:
      -Turbo Gun with nozzles 3-4-6-8-10-12 mm
      -Low pressure pipe Ø 20x26 mt.10
      -Anti-stick tank lt.50

      Power supply: Compressed air
      Maximum water flow: 40 l/m
      Tube length: from 0 to 30 mt depending on the material
      Supported pipe sizes: Diam 19 x 25 Standard
      Supported pipe sizes: Diam 25 x 33 Standard
      Maximum fluid pressure: 7 bar
      Maximum air pressure: 7 bar
      Tank capacity: 50 L
      Dimensions: 1000x550x950 mm
      Weight: 47 Kg
      Load height: 800 mm
      Maximum air pressure: 8 bar 116 psi
      Maximum fluid pressure (Turbo Gun): 20 bar 290 psi
      Maximum fluid pressure (Tex or Hopper Gun): 10 bar 145 psi


      Image and technical data are not binding.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
