MARINE GENERATOR KOHLER 16EKOZD SINGLE-PHASE 15KVA 60Hz EPA
KOHLER 16 EKOZD 60hz
Phase Type: Single-Phase
Maximum Single-Phase Power: 15 KW
Fuel: Diesel
Frequency: 60 Hz
Voltage: 120/240 V
Motor: Kohler
Emissions Regulation: EPA
Engine RPM: 1800 rpm
Length: 1064 mm
Width: 652.5 mm
Height: 711 mm
Dry Weight: 393 Kg
KOHLER 16 EKOZD 60hz
Data sheet
- Phase
- Single phase
- Continuous power single phase (KW)
- 15
- Continuous power single phase (KVA)
- 15
- Fuel
- Diesel
- Frequency (Hz)
- 60
- Engine
- Kohler
- Emissions Regulations
- EPA
- Engine rpm (rpm)
- 1800
- Speed governor
- Mechanical
- Engine capacity (cm³)
- 1900
- Number cylinders
- 3
- Cooling
- Water
- Bore x stroke (mm)
- 88 x 102
- Compression ratio
- 17 : 1
- Motor insulation class
- H
- Consumption (L/h)
- 3.51 at 75% of the load
- Length (mm)
- 1064
- Width (mm)
- 652.5
- Height (mm)
- 711
- Dry weight (Kg)
- 393
- Silenced
- Yes
- Super silenced
- Yes
- Type of combustion
- Direct
- Voltage regulator
- AVR
- Engine manufacturer
- Kohler
Specific References
New

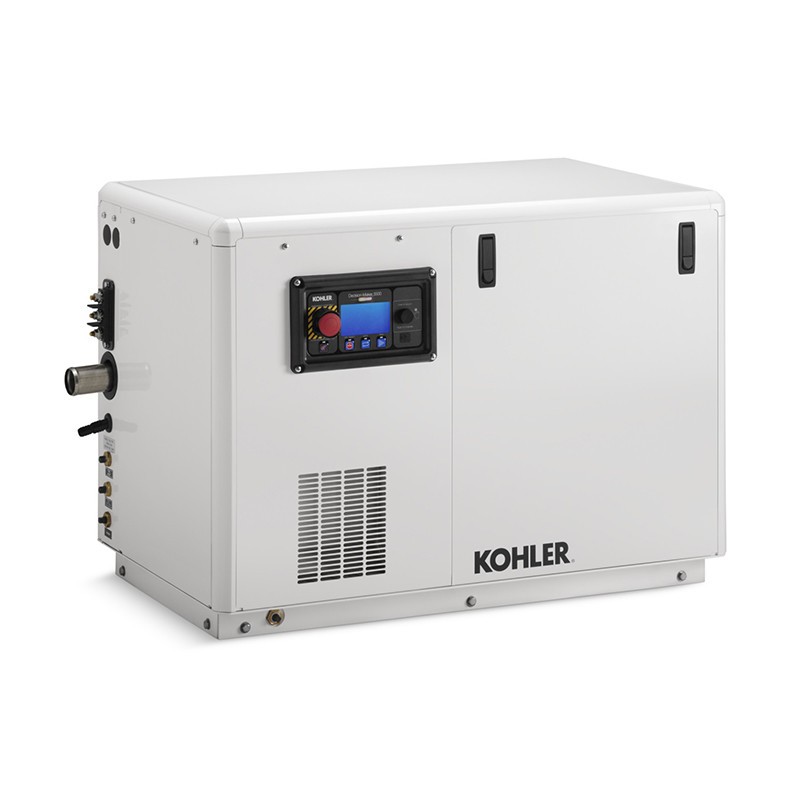

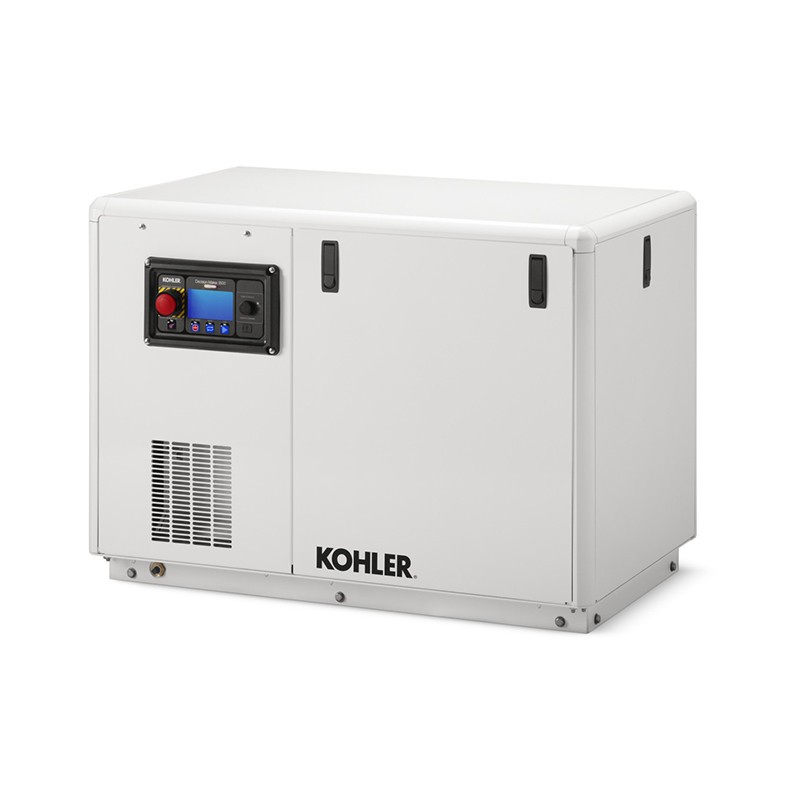

Super-silenced single-phase KOHLER 16EKOZD marine generator 15 KVA AVR
Kohler 16EKOZD Marine generator single phase 15 KVA with 1800 rpm motor EPA certified. The KOHLER 16EKOZD single-phase marine generator is built with a soundproof enclosure that makes it supersilenced. The KOHLER 16EKOZD single-phase marine generator is built with a 4-cylinder, 4-cycle Kohler diesel-powered engine, closed cooling system with heat exchanger. The alternator of the single-phase KOHLER 16EKOZD marine generator is brushless with AVR voltage regulator and water-cooled.
Features of the KOHLER 16EKOZD marine generator
- Class H insulation
- Multi-voltage adjustability
- Voltage adjustment of 1.0%.
- Radio suppression
Engine features of the KOHLER 16EKOZD marine generator
- Diesel
- Environmental Protection Agency (EPA) certified for compliance with Tier III marine auxiliary standards
- Four cylinders
- Four cycles
- Closed cooling system
- Heat exchanger
- Electric fuel lift pump
- Lifting eyelet
- Low oil pressure shutdown
- High temperature engine shutdown
- Low seawater pressure shutdown
- Vibromount
- Belt guard
- Disposable oil filter
- Oil drain valve
- Disposable fuel filter
TECHNICAL FEATURES KOHLER 16EKOZD
Phase Type: Single-Phase
Maximum Single-Phase Power: 15 KW
Fuel: Diesel
Frequency: 60 Hz
Voltage: 120/240 V
Motor: Kohler
Emissions Regulation: EPA
Engine RPM: 1800 rpm
Length: 1064 mm
Width: 652.5 mm
Height: 711 mm
Dry Weight: 393 Kg
Other marine generators such as the KOHLER 16EKOZD can be found by browsing the entire catalog of marine generators.
Pictures and technical data are not binding.
