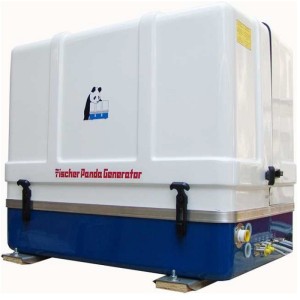

FISCHER PANDA AGT-DC22000 48V Marine Generator Supersilent 21.9KW

Name: FISCHER PANDA AGT-DC22000 48V Marine Generator Supersilent 21.9KW
Brand: FISCHER PANDA
SKU: 0032924
Price: 36886.7 EUR
Availability: InStock

Reference 0032924

Phase type: Single-phase
Maximum single-phase power: 21.9 kW
Continuous single-phase power: 21.9 kW
Frequency: 50 Hz
Voltage: 48 V
Inverter
Engine speed: 2400–3000 rpm
Displacement: 1498 cc
Cooling: Water
Sound pressure: 55 dB(A) at 7 m
Length: 960 mm
Width: 570 mm
Height: 680 mm
Dry weight: 350 kg

Prezzo

30,235.00 € tax excl.

36,886.70 € tax incl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 0032924

Data sheet

Phase: Single phase
Maximum power single phase (KW): 21.9
Continuous power single phase (KW): 21.9
Maximum power single phase (KVA): 21.9
Continuous power single phase (KVA): 21.9
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 48
Engine: Kubota V1505T
Engine rpm (rpm): 2400-3000
Speed governor: Electronic
Engine capacity (cm³): 1498
Number cylinders: 4
Cooling: Water
Poles: 2
Motor insulation class: H
Length (mm): 78
Width (mm): 570
Height (mm): 680
Dry weight (Kg): 350
Silenced: Yes
Super silenced: Yes
Product type: Generator
Voltage regulator: Inverter
Engine manufacturer: Kubota

Specific References

Condition New

FISCHER PANDA AGT-DC22000 48V MARINE GENERATOR SUPERSILENT 21.9KW

The FISCHER PANDA AGT-DC22000 48V Marine Generator is the perfect choice for those seeking power, compact design, and maximum silence on board. With a continuous and peak single-phase output of 21.9 kW, it is engineered to deliver high performance even in the most demanding conditions.

Equipped with a variable-speed Kubota diesel engine (from 2400 to 3000 rpm) and water cooling, the FISCHER stands for reliability, efficiency, and long-lasting operation. Its advanced soundproofing ensures ultra-quiet performance, with a noise level of just 55 dB(A) at 7 meters—ideal for comfortable cruising

Thanks to its compact size (960 x 570 x 680 mm) and dry weight of 350 kg, the FISCHER PANDA AGT-DC22000 48V can be easily installed on medium and large boats, optimizing onboard space.

Ideal for hybrid DC-AC systems

This model is designed to work within hybrid power systems, paired with batteries and an inverter. The generator runs only when needed, recharging the power bank and supporting peak load moments. Thanks to the integrated AGT controller, engine speed is automatically adjusted to deliver the required power with minimal fuel consumption.

Main advantages of the FISCHER PANDA AGT-DC22000 48V Marine Generator:

Ultra-quiet operation: only 55 dB(A) at 7 meters

Continuous output of 21.9 kW, ideal for high-demand marine applications

High-quality, long-lasting Kubota engine

Compact design and easy installation

High energy efficiency with reduced fuel consumption

Perfect for DC-AC systems with inverter and batteries

FISCHER PANDA Technical Specifications:

Phase type: Single-phase

Maximum power: 21.9 kW

Continuous power: 21.9 kW

Frequency: 50 Hz

Voltage: 48 V

Inverter system

Engine speed: 2400 – 3000 rpm

Displacement: 1498 cc

Cooling: Water

Noise level: 55 dB(A) at 7 meters

Dimensions: 960 x 570 x 680 mm

Dry weight: 350 kg
