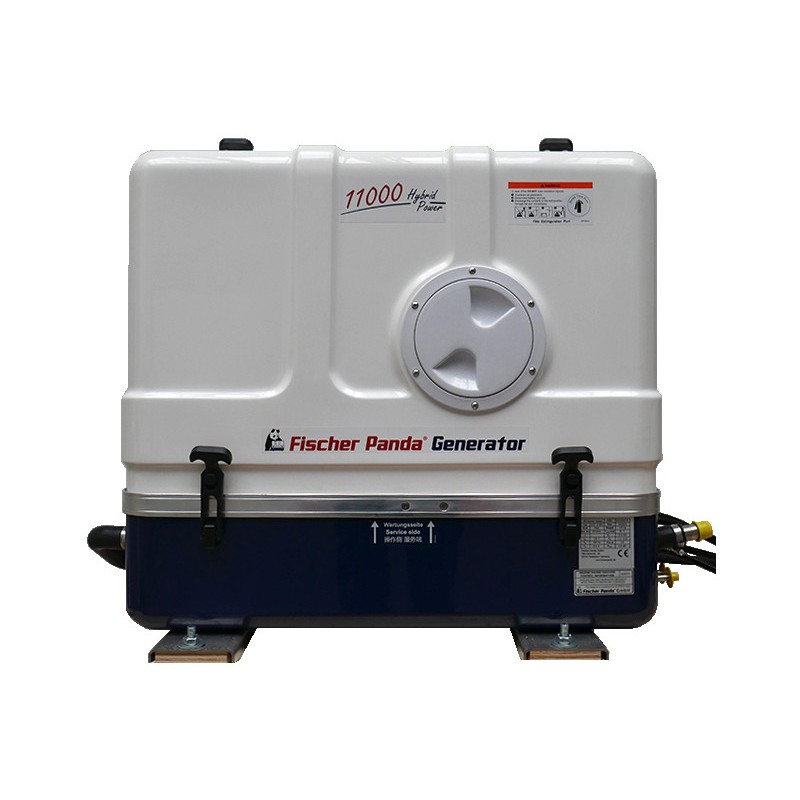

FISCHER PANDA AGT-DC11000 48V Supersilent Marine Generator 10.9Kw
      FISCHER PANDA AGT-DC11000 48V Supersilent Marine Generator 10.9Kw
      FISCHER PANDA AGT-DC11000 48V Supersilent Marine Generator 10.9Kw
      FISCHER PANDA AGT-DC11000 48V Supersilent Marine Generator 10.9Kw
      FISCHER PANDA AGT-DC11000 48V Supersilent Marine Generator 10.9Kw

      FISCHER PANDA AGT-DC11000 48V Supersilent Marine Generator 10.9Kw

      0030635

      Phase type: Single phase
      Maximum power Single-phase: 11 KW
      Single phase continuous power: 10.9 KW
      Frequency: 50 Hz
      Voltage: 48 V
      Inverter
      Motor RPM: 2300-2900 rpm
      Displacement: 898
      Cooling: Water
      Acoustic pressure: 54 dB(A) at 7 m
      Length: 660 mm
      Width: 580 mm
      Height: 616 mm
      Dry weight: 170 Kg

      Prezzo
      23,680.20 € tax incl.
      19,410.00 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: FISCHER PANDA AGT-DC11000 48V Supersilent Marine Generator 10.9Kw

      PERSONAL DATA


      Ask a question
      Product: FISCHER PANDA AGT-DC11000 48V Supersilent Marine Generator 10.9Kw
      Offer on letterhead
      Product: FISCHER PANDA AGT-DC11000 48V Supersilent Marine Generator 10.9Kw
      FISCHER PANDA
      0030635

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      11
      Continuous power single phase (KW)
      10.9
      Maximum power single phase (KVA)
      11
      Continuous power single phase (KVA)
      10.9
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      48
      Engine
      Kubota D902
      Engine rpm (rpm)
      2300 - 2900
      Speed governor
      Electronic
      Engine capacity (cm³)
      898
      Number cylinders
      3
      Oil capacity (L)
      3.7
      Cooling
      Water
      Poles
      2
      Bore x stroke (mm)
      72x73.6
      Motor insulation class
      H
      Acoustic pressure
      54 dB(A) at 7 m
      Length (mm)
      660
      Width (mm)
      580
      Height (mm)
      616
      Dry weight (Kg)
      170
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      Voltage regulator
      Inverter
      Engine manufacturer
      Kubota

      Specific References

      New

      FISCHER PANDA AGT-DC11000 48V SUPERSILENT MARINE GENERATOR 10.9KW

      The FISCHER PANDA AGT-DC11000 48V Marine Generator is the ideal choice for those looking for a compact, powerful, and supersilent generator. With a continuous power output of 10.9 kW and 48V supply, this FISCHER PANDA generator is designed to deliver high performance in limited spaces, thanks to its soundproof housing and variable speed engine, ensuring extremely quiet operation.

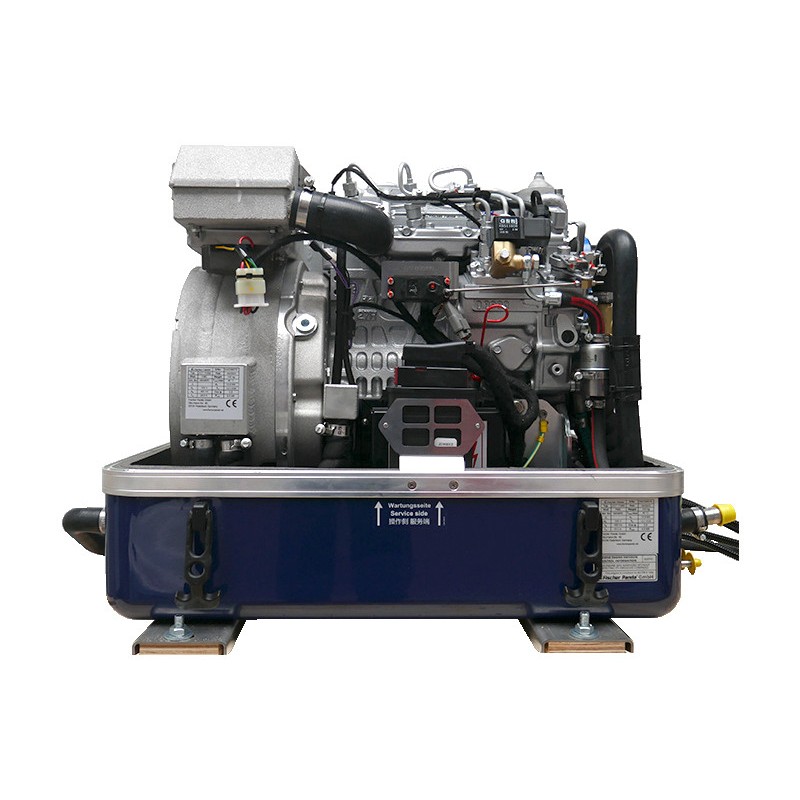

      Equipped with a water-cooled Kubota diesel engine, the FISCHER PANDA AGT-DC11000 operates between 2300 and 2900 RPM, dynamically adapting to the system's needs. The 2-pole alternator with class H insulation ensures stable and safe power generation.

      Designed for hybrid AC power systems, the FISCHER PANDA is perfect for setups where the generator is used intermittently to recharge power banks and support during peak power demand. Integration with an inverter allows it to supply 230V power to all onboard utilities.

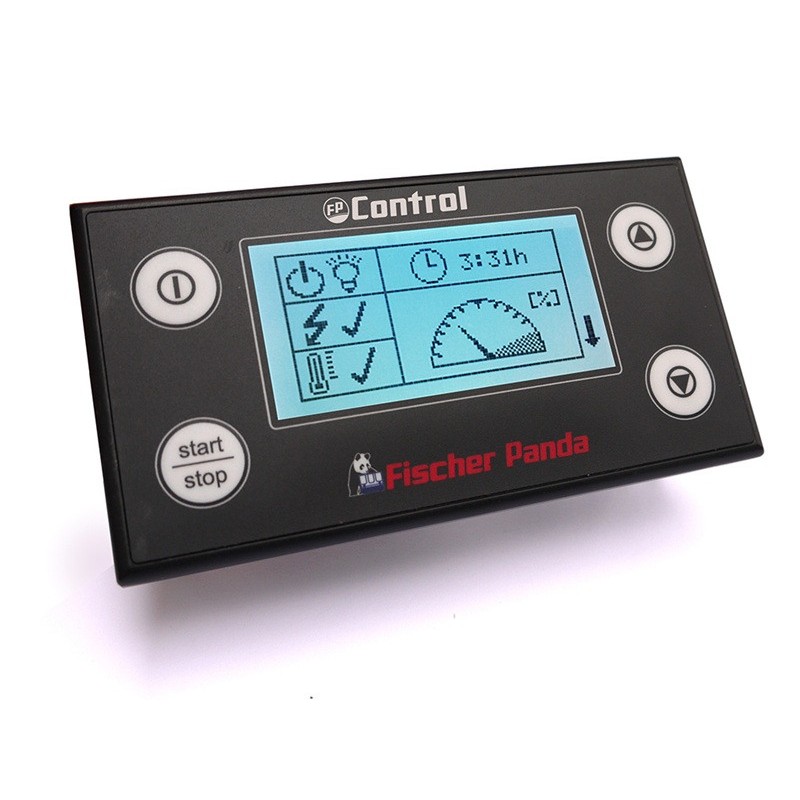

      The integrated AGT controller automatically regulates the charging voltage, optimizing engine efficiency. For proper installation, batteries should be placed close to the generator.

      With compact dimensions (660 x 580 x 616 mm), a dry weight of 170 kg, and a sound pressure level of only 54 dB(A) at 7 meters, the FISCHER PANDA AGT-DC11000 48V is also perfect for small to medium-sized boats, where every centimeter matters and acoustic comfort is essential.

      Main technical features of FISCHER PANDA AGT-DC11000 48V:

      Phase type: Single-phase

      Continuous power: 10.9 kW

      Maximum power: 11 kW

      Rated voltage: 48V

      Frequency: 50 Hz

      Kubota diesel engine with 898 cc displacement

      Variable engine speed: 2300–2900 rpm

      Cooling: Water-cooled

      Alternator: 2-pole, class H insulation

      Sound pressure level: 54 dB(A) at 7 meters

      Dimensions (LxWxH): 660 x 580 x 616 mm

      Dry weight: 170 kg

      Inverter system included

      The FISCHER PANDA represents a technologically advanced, efficient, and eco-friendly solution, perfect for those seeking energy autonomy without compromising onboard comfort and tranquility.

      If you are looking for a marine generator like the Fischer Panda AGT-DC11000 48V, feel free to browse the entire catalog of marine generators.

      Images and technical data are not binding. Please always consult the technical data sheet issued by the manufacturer. Manel Service accepts no liability for any changes made by the manufacturer.

      ""
