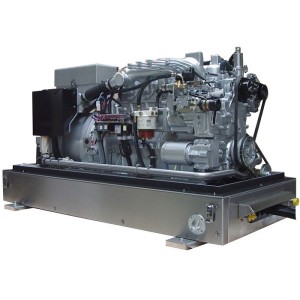

MARINE GENERATOR FISCHER PANDA 22-4PMS SUPERSILENCED 21.9 KVA

Generator for boats Fischer Panda 22-4PMS single-phase 21.9 KVA with 1500 rpm motor. The Fischer Panda 22-4PMS marine generator is designed with a soundproof cabin that makes it super-silent. The Fischer Panda 22-4PMS marine generator is built with a Kubota diesel-powered engine. The Fischer Panda 22-4PMS marine generator alternator is 4-pole with H insulation class. Thanks to its compactness, size and low weight, the Fischer Panda 22-4PMS marine generator is also perfect for installation on boats with tight spaces.

Main data of the Fischer Panda 22-4PMS generator:

Phase Type: Single-phase
Maximum Output: 18.6 kW
Continuous Output: 16.7 kW
Maximum Output: 21.9 kVA
Continuous Output: 19.7 kVA
Frequency: 50 Hz
Voltage: 230 V
Engine rpm: 1500 rpm
Dispacement: 2434 cc.
Cooling: Water
Sound Cover Type: GFK (Glass fibre reinforced polyester)
Sound pressure: 53 dB(A) at 7 m
Length: 1255 mm
Width: 515 mm
Height: 670 mm
Dry weight: 315 Kg

Based on the rugged Fischer Panda 22-4PMS generator set, these heavy duty (HD) versions operate at 1500 rpm / 50Hz.
The Fischer Panda 22-4PMS generator is enclosed in a super quiet soundproofed capsule.
The generators are heavier than standard PMS generators. They use a heavy-duty diesel engine and because they run at 1500 rpm, they have a 4-wire coil, which also means that the alternator has a heavier 4-pole construction.
The heavy-duty construction and low rpm results in a durable and quiet generator set.

Generators AC 50 Hz / 1500 rpm (PMS-HD)

Heavy Duty (HD) at 1500 rpm. Based on this robust nautical generator set, these heavy duty versions are enclosed in a super quiet soundproofed capsule.

If you are looking for a marine generator set like the Fischer Panda 22-4PMS but with different technical features then you can browse the entire marine generator catalogue.

Images and technical data are not binding.
