MASE IS 2.7 MARINE GENERATOR SINGLE PHASE 2.2KW

Reference MASEIS2.7

Phase Type: Single Phase
Continuous Use Power: 1.9KW
Maximum Power: 2.2KW
Fuel: Diesel
Voltage: 120 - 240 V
Frequency: 60 Hz
Engine: Yanmar L48V, 4 Temp
Mechanical Power: 4.2 Hp
Number of cylinders: 1
Displacement: 219 cc
Bore x stroke: 70 x 57 mm
RPM controller: Centrifugal mechanical
Engine RPM: 3600 rpm
Sound power: 56 dBA @ 7 m

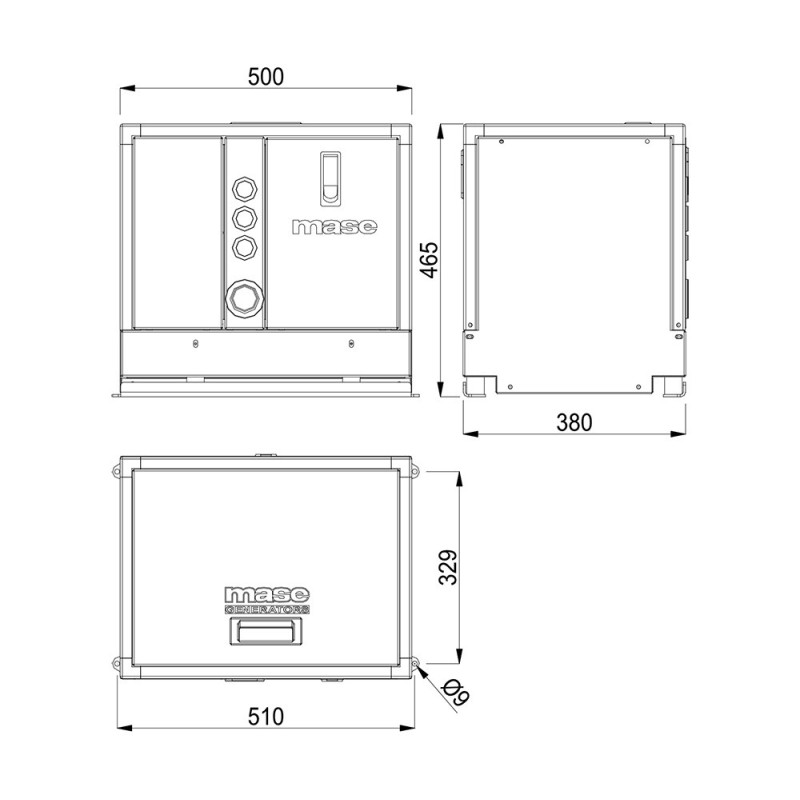

Length: 500 mm
Width: 380 mm
Height: 465 mm
Weight: 80 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MASEIS2.7

Data sheet

Phase: Single phase
Maximum power single phase (KW): 2.2
Continuous power single phase (KW): 1.9
Maximum power single phase (KVA): 2.2
Continuous power single phase (KVA): 1.9
Fuel: Diesel
Frequency (Hz): 60
Voltage (V): 120 / 240
Engine: Yanmar L48V, 4 stroke
Engine rpm (rpm): 3600
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 219
Number cylinders: 1
Oil capacity (L): 0.85
Cooling: Air / water (Intercooler W/A)
Inyección: Direct
Alternator: Synchronous, self-excited
Poles: 2
Lubrication: Forced
Consumption (L/h): 0.8
Acoustic pressure: 56 dB(A) at 7 m
Length (mm): 500
Width (mm): 380
Height (mm): 465
Dry weight (Kg): 80
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: Yes

Specific References

MASE IS2.7 SINGLE PHASE MARINE GENERATOR 2.2KW

MASE IS2,7 single phase marine generator with Yanmar L48V engine with diesel power supply at 3600 rpm capable of delivering a power of 2.2KW.

The MASE IS2,7 marine generator is designed with a soundproof cabin that makes it supersilenced. The MASE IS2,7 marine generator is built with Yanmar diesel-powered engine and synchronous alternator, self-excited with air/water cooling. With its small size, it is also suitable on small boats.

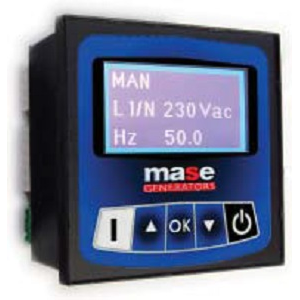

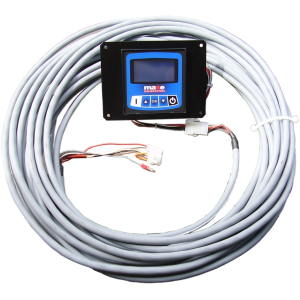

The marine generator CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for complete monitoring of the MASE IS2.7.

The soundproof cabin of the MASE IS2,7 consists of a supporting structure in aluminum profile that supports panels in marine aluminum painted type 5754 extremely light and very high resistance to external agents. The excellent accessibility to the internal compartment makes maintenance easier even with the genset installed in narrow spaces.

Technical features:
Maximum power Single-phase: 2.2 KW
Power continuous use Single-phase: 1. 9 KW
Fuel: Diesel
Voltage: 120 V / 240 V
Frequency: 60 Hz
Motor: Yanmar L48V
Length: 500 mm
Width: 380 mm
Height: 465 mm
Weight: 80 Kg

If you are looking for another generator like the MASE IS2.7 then you can browse the entire catalog of marine gensets .

Images and technical data are not binding.
