MASE IS24 SINGLE-PHASE MARINE GENERATOR 26KW

MASE IS24 single-phase marine generator with Yanmar 4TNV98 diesel engine running at 1500 rpm, capable of delivering 26KW.

The MASE IS24 marine generator is designed with a soundproof cabin that makes it super-silenced. The MASE IS24 marine generator is built with a Yanmar diesel engine and a self-excited, air/water-cooled synchronous alternator. Its compact size makes it suitable even for small boats.

The soundproof cabin of the MASE IS24 generator is made of a load-bearing structure in aluminum profile that supports panels in painted marine aluminum type 5754 that are extremely light and highly resistant to external agents. Excellent accessibility to the internal compartment makes maintenance easier, even when the generator is installed in confined spaces.

Technical Specifications:

Phase Type: Single Phase
Continuous Power: 24KW
Maximum Power: 26KW
Fuel: Diesel
Voltage: 115 / 230 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98, 4-Stroke
Mechanical Power: 47 HP
Number of Cylinders: 4
Displacement: 3319 cc
Bore x Stroke: 98 x 110 mm
Speed ​​Governor: Mechanical Centrifugal
Engine RPM: 1500 rpm
Sound Power: 54 dBA @ 7 m

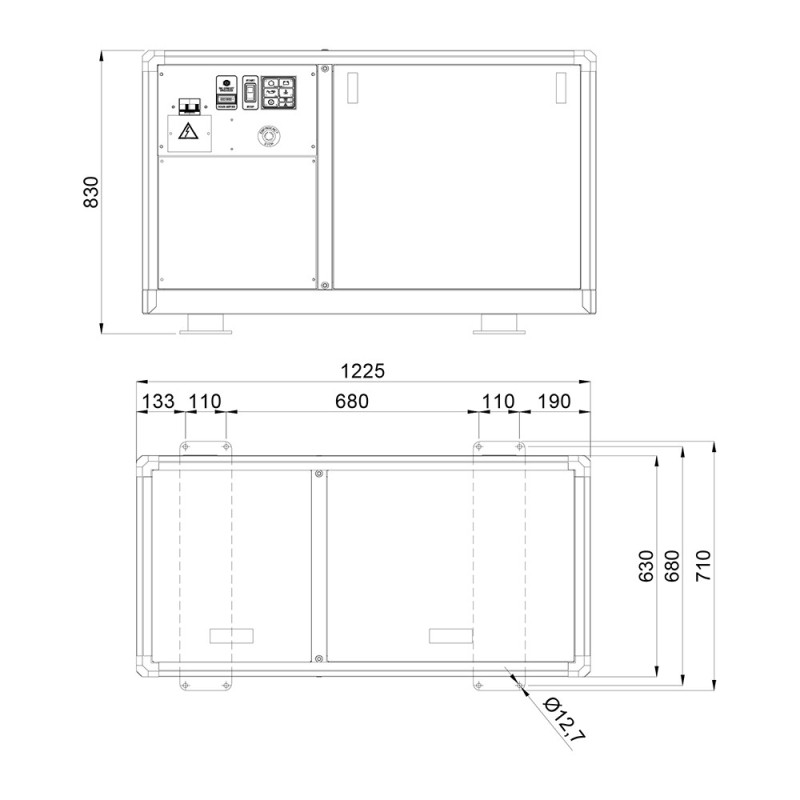

Length: 1225 mm
Width: 630 mm
Height: 830 mm
Weight: 625 kg

If you are looking for another generator like the MASE IS24 then you can consult the entire catalog ofmarine generators.
