MASE MARINER 2700 K SINGLE PHASE MARINE GENERATOR 29KW

Name: MASE MARINER 2700 K SINGLE PHASE MARINE GENERATOR 29KW
Brand: MASE
SKU: MARINER 2700 K
Price: 37942 EUR
Availability: InStock

Reference MARINER 2700 K

Phase Type: Single Phase
Maximum Power: 22 KW
Continuous Use Power: 20 KW
Fuel: Diesel
Voltage: 115 - 230 V
Frequency: 50 Hz
Alternator: Synchronous, 4-pole Brushless
Voltage Regulator: AVR
Motor: KUBOTA V2403, 4 Stroke
Mechanical Power: 29. 5 Hp
Number of Cylinders: 4
Displacement: 2434 cc
RPM Regulator: Mechanical Centrifugal
Engine RPM: 1500 rpm
Fuel Consumption: 6. 1 l/h
Length: 1000 mm
Width: 570 mm
Height: 670 mm
Weight: 435 Kg

Prezzo

31,100.00 € tax excl.

37,942.00 € tax incl.

Shipping from 229.36 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MARINER 2700 K

Data sheet

Phase: Single phase
Maximum power single phase (KW): 29
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 115 / 230
Engine: KUBOTA V3300
Engine rpm (rpm): 1500
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 3318
Number cylinders: 4
Cooling: Air
Alternator: Synchronous, self-excited
Poles: 4
Lubrication: Forced
Consumption (L/h): 11 at 100% of the load
Length (mm): 1250
Width (mm): 630
Height (mm): 820
Dry weight (Kg): 620
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No
Product type: Generator
Voltage regulator: AVR
Engine manufacturer: Kubota

Specific References

Condition New

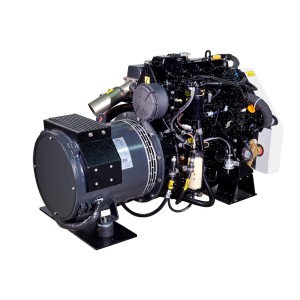

MASE MARINER 2700K SINGLE PHASE MARINE GENERATOR 29KW

MASE MARINER2700K single phase marine generator is equipped with a KUBOTA V3300 diesel engine capable of delivering a maximum power of 29KW at 1500 rpm complete with AVR voltage regulator.

The alternator of the MASE MARINER2700K is synchronous 4-pole, self-regulated, self-excited, brushless, which in conjunction with the powerful engine KUBOTA can deliver a maximum power of 29KW. The marine generator MASE MARINER2700K is built with synchronous alternator, self-excited without brushes with air cooling, it is extremely compact and powerful, suitable for small boats. The alternator is complete with AVR voltage regulator that ensures the stability of the voltage delivered by the generator, delivering current like the one at home.

The MASE MARINER2700K CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for a complete monitoring of the marine generator MASE MARINER2700K:

- ON/OFF/START/STOP/MENU controls.
- Digital hour meter, Output voltage, group battery, external battery pack, frequency, maintenance interval, list of last 10 alarms with time.
- 13 different alarm icons can be displayed.
- 485 Mod-Bus connector to monitor the group from the main control panel of the boat.

TECHNICAL FEATURES MASE MARINER2700K

Phase Type: Single Phase
Maximum Power: 29 KW
Fuel: Diesel
Voltage: 115 - 230 V
Frequency: 50 Hz
Alternator: Synchronous, 4 poles Brushless
Voltage Regulator: AVR
Motor: KUBOTA V3300, 4 Strokes
Mechanical Power: 38. 8 Hp
Number of cylinders: 4
Displacement: 3318 cc
RPM controller: Centrifugal mechanical
Engine speed: 1500 rpm
Fuel consumption: 11 l/h
Length: 1250 mm
Width: 630 mm
Height: 820 mm
Dry weight: 620 Kg

Are you looking for a marine generator with different technical features? Here you can find the section dedicated to MASE marine generators or other specialized brands.

Images and technical data are not binding.
