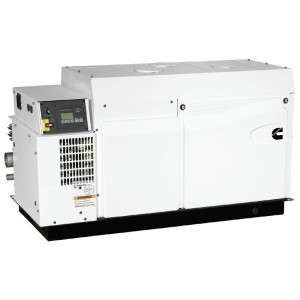

CUMMINS ONAN MDKBW SINGLE PHASE 8 KW AVR
      CUMMINS ONAN MDKBW SINGLE PHASE 8 KW AVR

      CUMMINS ONAN MDKBW SINGLE PHASE 8 KW AVR

      A061N037

      Phase Type: Single Phase
      Power supply: Diesel
      Single phase power: 8 KW
      Single Phase Power: 8 KVA
      Voltage: 115V/230V
      Frequency: 50 Hz
      Rpm: 2880 rpm
      Cooling: Liquid
      Cylinders: 3
      Displacement: 719
      Starting: Electric
      Fuel Consumption: 2.35 Lt/h at 75% load
      Voltage regulator: AVR
      Insulation class: H
      Length: 664 mm
      Width: 583 mm
      Height: 535 mm
      Weight: 195 Kg
      Supersilenced

      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      CUMMINS ONAN
      A061N037

      Data sheet

      Phase
      Single phase
      Continuous power three phase (KW)
      8
      Continuous power three phase (KVA)
      8
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      115 / 230
      Engine
      Cummins, 4 tempi
      Engine rpm (rpm)
      2880
      Starting system
      Elettrico
      Engine capacity (cm³)
      719
      Number cylinders
      3
      Oil capacity (L)
      3
      Cooling
      Water
      Poles
      4
      Consumption (L/h)
      2.35
      Length (mm)
      664
      Width (mm)
      583
      Height (mm)
      535
      Dry weight (Kg)
      195
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      Voltage regulator
      AVR
      Engine manufacturer
      Cummins

      Specific References

      New

      CUMMINS ONAN MDKDW Super-silenced marine generator 8 KW AVR

      CUMMINS ONAN MDKDW Marine generator single-phase 8 KW with 2880 rpm engine.
      The CUMMINS ONAN MDKDW has a cabin that makes it supersilenced. The CUMMINS ONAN MDKDW marine generator is built with a Cummins engine powered by 4-stroke diesel. The alternator of the CUMMINS ONAN MDKDW marine generator is 4-pole with insulation class H and AVR voltage regulator. Installation of the marine generator is possible on boat due to small size and weight.

      Technical characteristics of the CUMMINS ONAN MDKDW:
      Phase Type: Single Phase
      Power supply: Diesel
      Single phase power: 8 KW
      Single Phase Power: 8 KVA
      Voltage: 115V/230V
      Frequency: 50 Hz
      Rpm: 2880 rpm
      Cooling: Liquid
      Cylinders: 3
      Displacement: 719
      Starting: Electric
      Fuel Consumption: 2.35 Lt/h at 75% load
      Voltage regulator: AVR
      Insulation class: H
      Length: 664 mm
      Width: 583 mm
      Height: 535 mm
      Weight: 195 Kg
      Supersilenced

      - Reliability, high quality and innovation make Cummins Onan the leader in the design and development of marine generators like the CUMMINS ONAN MDKDW, providing performance you can rely on.
      - The QD (Quiet Diesel) series digital models are the first marine generators with self-monitoring and network communication capabilities.
      - The ONAN MDKDW's optional digital display offers user-friendly diagnostics, including detailed engine and alternator information, self-diagnostic functions and text displays.
      - Marine generators like the CUMMINS ONAN MDKDW with advanced design and development processes use technology to reduce noise and vibration. Acoustic shields minimize noise and provide better sound quality output. Optimized mounting system significantly reduces vibration.
      - Certified by the U.S. Environmental Protection Agency. (EPA) (60 Hz models only).

      If you are looking for a boat product like the MDKDW marine generator, but with different technical features, then you can browse the entire marine generator catalog.

      Non-binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
      CUMMINS ONAN 155-2030 Muffler Silencer
          FOR MARINE GENERATING SETS
          CUMMINS ONAN 155-2030 Silencer muffler for marine generators Diameter: In/Out 50 mm x 50 mm (2”) Suitable for MDKBH/J/L/M/N - MDKBDP/R/V series generators.
          CUMMINS ONAN A029Z017 Water / Smoke Separator
              CUMMINS ONAN A029Z017 water / smoke separator  for marine generators Diameter: In/Out 50 mm x 50 mm (2”) Suitable for MDKBH/J/L/M/N - MDKBDP/R/V series generators.
              CUMMINS ONAN 541-0876-01 Siphon Break
                  FOR MARINE GENERATING SETS
                  CUMMINS ONAN 541-0876-01 Siphon Break for marine generators Suitable for MDKBJ/L/M/N, MDKDP/R/V series generators.
                  Sale Accessories for CUMMINS ONAN Marine Generators | 300-5725-01CUMMINS ONAN 300-5725-01 12V Remote Control Panel
                      CUMMINS ONAN 300-5725-01 12V Remote Control Panel. With start/stop button.
                      CUMMINS ONAN 541-1130 12V / 24V Digital Remote PanelCUMMINS ONAN 541-1130 12V / 24V Digital Remote Panel
                          CUMMINS ONAN 541-1130 12V / 24V Digital Remote Panel. Suitable for all Cummins Onan marine gensets range.
                          CUMMINS ONAN A052F591 Connection Cable Genset/Panel 7.6 meters
                              CUMMINS ONAN A052F591 Connection Cable Genset/Panel. Length: 7.6 Meters Suitable for all Cummins marine generators. With connectors
                              CUMMINS ONAN A052F587 Connection Cable Genset/Panel 13.7 metersCUMMINS ONAN A052F587 Connection Cable Genset/Panel 13.7 meters
                                  CUMMINS ONAN A052F587 Connection Cable Genset/Panel. Length: 13.7 Meters Suitable for all Cummins marine generators. With connectors
                                  CUMMINS ONAN A052F585 Connection Cable Genset/Panel 22.8 meters
                                      CUMMINS ONAN A052F585 Connection Cable Genset/Panel. Length: 22.8 Meters Suitable for all Cummins marine generators. With connectors
                                      CUMMINS ONAN 338-4016 Harness Y Adapter for Remote Dual Stations
                                          CUMMINS ONAN 338-4016 Harness Y Adapter for Remote Dual Stations. Suitable for all Cummins Onan marine generators. With Deutsch plug.
                                          CUMMINS ONAN 0300-4686-01 Low coolant level safety shut-off switch
                                              CUMMINS ONAN 0300-4686-01 Low coolant level safety shut-off switch. Suitable for all Cummins Onan marine generators.
                                              CUMMINS ONAN A026M935 Remote Fuel/Water Separator, 30 Micron
                                                  CUMMINS ONAN A026M935 Remote Fuel/Water Separator, 30 Micron. Suitable for all Cummins Onan marine generators.
                                                  CUMMINS ONAN 541-1195-03 SAE J1939 Network Interface Module
                                                      CUMMINS ONAN 541-1195-03 SAE J1939 Network Interface Module. Suitable for Cummins Onan marine generators MDKBK/L/M/N/P/R/V/T/U.
