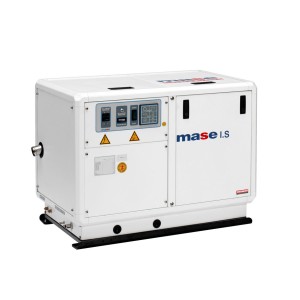

MASE IS 36 T MARINE GENERATOR THREE-PHASE 37.5KVA

Reference MASE IS 36 T

Phase Type: Three Phase
Maximum Power: 37.5KVA
Fuel: Diesel
Voltage: 240 - 480 V
Frequency: 60 Hz
Engine: Yanmar 4TNV98, 4 Stroke
Mechanical Power: 47 Hp
Number of Cylinders: 4
Displacement: 3319 cc
RPM Regulator: Centrifugal, Mechanical
Engine RPM: 1800 rpm
Acoustic Power: 56 dBA @ 7 m
Length: 1225 mm
Width: 630 mm
Height: 830 mm
Weight: 625 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MASE IS 36 T

Data sheet

Phase: Three phase
Maximum power three phase (KVA): 37.5
Fuel: Diesel
Frequency (Hz): 60
Voltage (V): 240 - 480
Engine: Yanmar 3TNV98, 4 stroke
Engine rpm (rpm): 1800
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 3319
Number cylinders: 4
Cooling: Air / water (Intercooler W/A)
Inyección: Direct
Alternator: Synchronous, self-excited
Poles: 4
Compression ratio: 18 : 1
Lubrication: Forced
Consumption (L/h): 10.4
Acoustic pressure: 56 dB(A) at 7 m
Length (mm): 1225
Width (mm): 630
Height (mm): 830
Dry weight (Kg): 625
Inverter: No
AVR: Yes
Compound: No
Silenced: Yes
Super silenced: Yes
Product type: Generator
Voltage regulator: AVR
Engine manufacturer: Yanmar

Specific References

MASE IS 36 T THREE PHASE MARINE GENERATOR 37,5KVA

MASE IS36T three-phase marine generator with Yanmar 4TNV98 engine with diesel power supply at 1800 rpm capable of delivering a power of 37.5KVA.

The MASE IS36T marine generator is designed with a soundproof cabin that makes it supersilenced. The MASE IS36T marine generator is built with a Yanmar diesel-powered engine and synchronous alternator, self-excited with air/water cooling. With its small size, it is also suitable on small boats.

The marine generator CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for complete monitoring of the MASE IS36T.

The soundproof cabin of the MASE IS36T consists of a load-bearing structure in aluminum profile that supports panels in marine aluminum painted type 5754 extremely light and very high resistance to external agents. The excellent accessibility to the internal compartment makes maintenance easier even with the genset installed in narrow spaces.

Technical Features:
Phase Type: Three-phase
Maximum Power: 37,5KVA
Fuel: Diesel
Voltage: 240 - 480 V
Frequency: 60 Hz
Engine: Yanmar 4TNV98, 4 Stroke
Length: 1225 mm
Width: 630 mm
Height: 830 mm
Weight: 625 Kg

If you are looking for another generator like the MASE IS36T then you can see the entire catalog of marine generators .

Images and technical data are not binding.
