ONAN CUMMINS MDKBL Marine Generator Supersilenced 7KW AVR

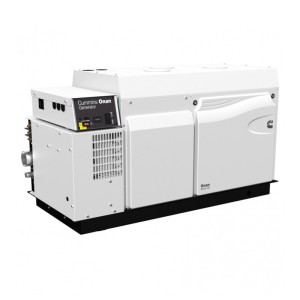

ONAN CUMMINS MDKBL single phase 7 KW marine generator with 1500 rpm motor. The ONAN CUMMINS MDKBL marine generator is designed with a soundproof enclosure that makes it supersilenced. The ONAN CUMMINS MDKBL is built with a Cummins ONAN 4-stroke diesel powered engine. The alternator of the ONAN CUMMINS MDKBL is 4-pole with insulation class H and AVR voltage regulator. Due to its compactness and small size and weight it can be installed even on board of small boats. Due to its compactness it can be mounted on boats with narrow spaces.

Technical characteristics of the ONAN CUMMINS MDKBL generator:

Phase type: Single phase
Power supply: Diesel
Single phase power: 7 KW
Single phase power: 7 KVA
Voltage: 115V/230V
Amps: 30. 4A at 230 V, 60.9A at 115 V
Frequency: 50 Hz
Rpm: 1500 rpm.
Cooling: Liquid
Cylinders: 3
Bore x Stroke: 78x78. 4 mm
Displacement: 1123 c. c
Compression ratio: 24:1
Boosting: Electric 12V
Fuel consumption: 2 Lt/h at 75% load
Voltage regulator: AVR digital
Isolation class: H

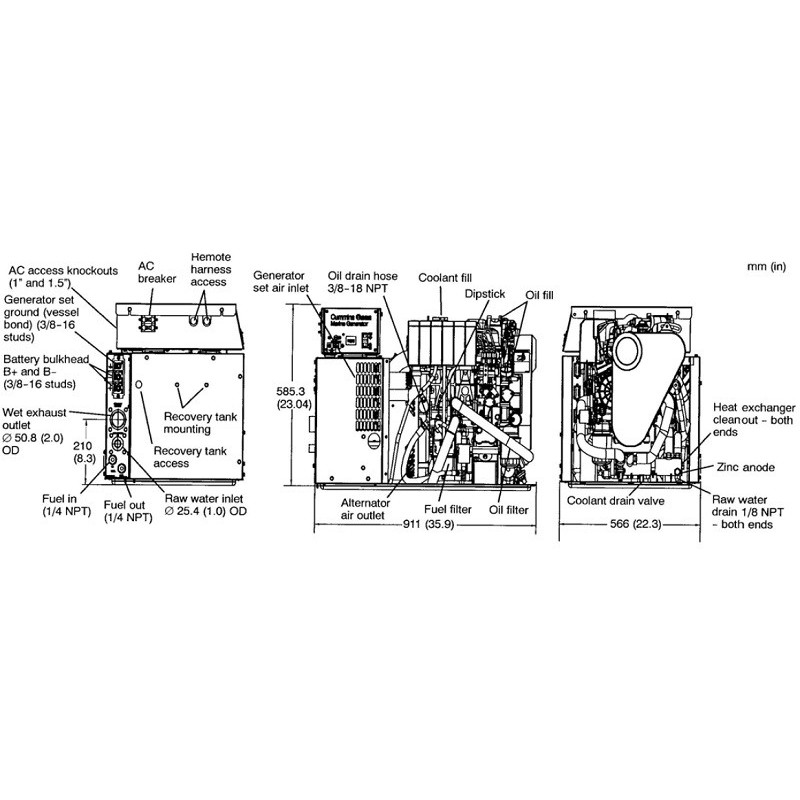

Length: 911 mm
Width: 566 mm
Height: 593 mm
Weight: 272 kg
Super-silenced
65 dB(A) at 1 meter
Includes soundproofing booth, 12V electrical system, negative ground.

- Reliability, high quality and innovation make Cummins Onan the leader in the design and development of marine generators like the CUMMINS ONAN MDKBL, providing performance you can rely on.
- The QD (Quiet Diesel) series digital models are the first marine generators with self-monitoring and network communication capabilities.
- The ONAN MDKBL optional digital display offers user-friendly diagnostics including detailed engine and alternator information, self-diagnostic functions and text displays.
- Marine generators like the CUMMINS ONAN MDKBL with advanced design and development processes use technology to reduce noise and vibration. Acoustic shields minimize noise and provide better sound quality output. Optimized mounting system greatly reduces vibration.
- Certified by the U.S. Environmental Protection Agency. (EPA) (60 Hz models only).

If you're looking for a boat product like the ONAN CUMMINS MDKBL marine generator, but with different technical features, then you can browse the entire catalog of marine generators.

Non-binding images and technical data.
