Super-silenced CUMMINS ONAN MDKBH Marine Generator 4 KW AVR

CUMMINS ONAN MDKBH single phase 4 KW marine generator with 2400 rpm motor. The CUMMINS ONAN MDKBH marine generator is designed with a soundproof enclosure that makes it supersilenced. The CUMMINS ONAN MDKBH is built with a Cummins 4-stroke diesel powered engine. The alternator of the CUMMINS ONAN MDKBH is 2-pole with insulation class H and AVR voltage regulator. Due to its compactness and small size and weight, it can also be installed on board small boats.

Technical features of the nautical generator CUMMINS ONAN MDKBH:
Phase type: Single phase
Power supply: Diesel
Single phase power: 4 KW
Single phase power: 4 KVA
Voltage: 115V/230V
Amps: 17. 4A at 230V, 34.8A at 115V
Frequency: 50 Hz
Rpm: 2400 rpm.
Cooling: Liquid
Cylinders:2
Bore x Stroke: 67x68 mm
Displacement: 479 c.c
Compression Ratio: 23.5:1
Power: Electric 12V
Fuel Consumption: 1. 3 Lt/h at 75% load
Voltage regulator: digital AVR
Insulation class: H

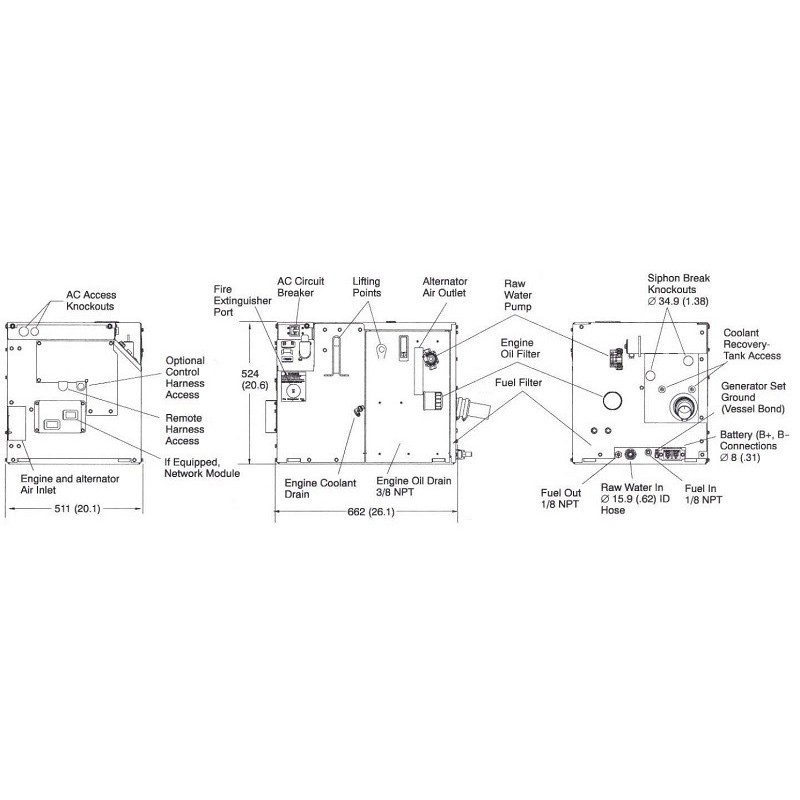

Length: 662 mm
Width: 511 mm
Height: 524 mm
Weight: 166 Kg
Supersilenced
dB(A) at 1 meter
Included are soundproofing booth, 12V electrical system, negative ground.

- Reliability, high quality and innovation make Cummins Onan the leader in the design and development of such as the CUMMINS ONAN MDKBH, providing performance you can rely on.
- The QD (Quiet Diesel) series digital models are the first marine generators with self-monitoring and network communication capabilities.
- The ONAN MDKBH's optional digital display offers user-friendly diagnostics, including detailed engine and alternator information, self-diagnostic functions and text displays.
- CUMMINS marine generators like the ONAN MDKBH with advanced design and development processes use technology to reduce noise and vibration. Acoustic shields minimize noise and provide better sound quality output. Optimized mounting system greatly reduces vibration.
- Certified by the U.S. Environmental Protection Agency. (EPA) (60 Hz models only).

If you're looking for a boat product like the MDKBH marine generator, but with different technical features, then you can browse the entire catalog of marine generators.

Non-binding images and technical data.
