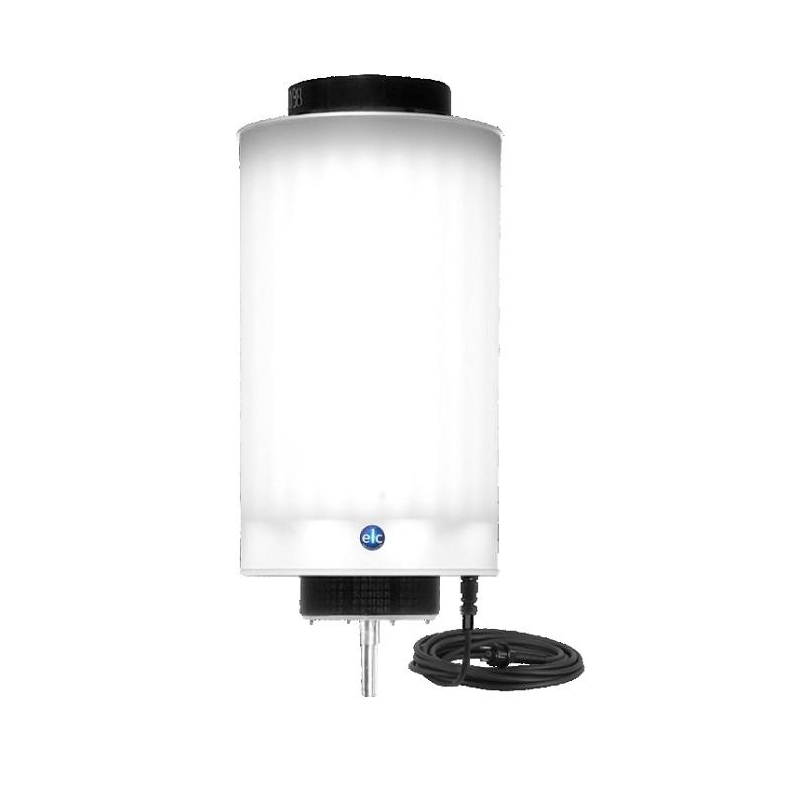

ELC LUMAPHORE LED 1000XL

Reference LUMLED1000001XL

Number of LED modules: 24 + 8 COB
Number of LEDs per module: 88
Total lighting output: 1160 W
Power of electricity supply: 1185 W
Connecting cable 3x1.5 mm²: 7 m
Average life of LEDs: 50000 hrs
Temperature range for use: -15°C / +40°C
Colour temperature: 5000°K
Total lumens: 127040 Lm
Diameter: 40 cm
Length: 930 mm
Weight: 16 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference LUMLED1000001XL

Data sheet

Protection degree: IP44
Diameter (Ø): 40 cm
Maximum height (m): 5
Number of LED modules: 24 + 8 COB
Number of LEDs per module: 88
Total lighting output (W): 1160
Power of electricity supply (W): 1185
Connecting cable 3x1.5 mm² (m): 7
Average life of LEDs (hrs): 50000
Immediate illumination: Yes
Guyed tower: Sì
Temperature range for use (°C): -15 / +40
Colour temperature (°K): 5000
Lumens / module / COB (Lm): 4060 / 3700
Color rendering index: Greater than 82
Average assembly time (min): 2
Illuminated area (m²): 4000
Total lumens (Lm): 127040
Length (mm): 930
Weight (Kg): 16

Specific References

Condition New

The LUMAPHORE® LED 1000XL is the most powerful lamp in the LUMAPHORE ® LED range. It has 24 LEDs and increased ground level lighting from 8 high-power COB LEDs.
The standard model is fitted with an ON/OFF switch and option of 180° lighting.
The LUMAPHORE® LED 1000XL provides 127000 Lumens, from less than 1200 W, giving one of the best Lumen/Watt ratios at around 110 Lumen/Watt.

Benefits of the LUMAPHORE® LED 1000XL:
- Lighting area up to 4000 m²
- Extremely powerful lighting : 127000 lumens
- Resistant to bad weather
- Resistant to high winds
- Robust
- Electric and heat protection
- Superbly versatile for use in many environments

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
