ELC LUMAPHORE LED 600XL
LUMAPHORE LED 600XL
Standard package

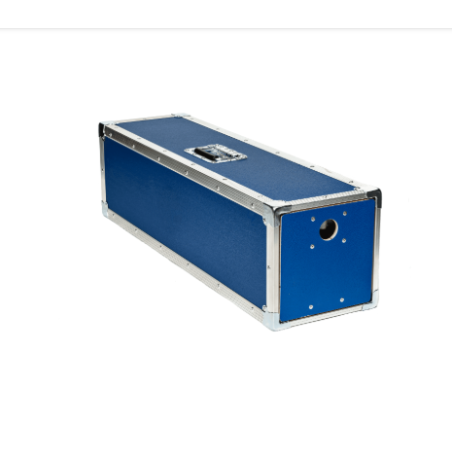

Standard flight-case: Included
Power cable (Schuko plug): 7 m
Suspension ring: Included
Sleeve (diam. 26mm): Included
Total lighting output: 520 W
Power supply output: 575 W
Protection index: IP65 / IK10
Wind resistance: 162 Km/h
Thermal protection: Yes
Temperature range for use: -15°/+40°
Lighting area: 3200 m2
Colour temperature: 5000 °K
Total lumens: 76200 lm
Colour rendering index: > 80
Diameter: 22.5 cm
Length: 91 cm
Weight: 7.7 kg
Tap type: Diameter: 26 mm
Optimum height for use: 4 m
Average assembly time: 2 min
Standard case: Included
Included Power cable (Schuko plug): 7 m
Suspension ring: Included
LUMAPHORE LED 600XL
Data sheet
- Protection degree
- IP65
- Diameter (Ø)
- 22.5
- Total lighting output (W)
- 520
- Power of electricity supply (W)
- 575
- Temperature range for use (°C)
- -15 / +40
- Colour temperature (°K)
- 5000
- Average assembly time (min)
- 2
- Illuminated area (m²)
- 3200
- Total lumens (Lm)
- 76200
- Stability to wind (Km/h)
- 162
- Length (mm)
- 910
- Weight (Kg)
- 7.7
Specific References
New
LUMAPHORE LED 600XL
LUMAPHORE LED 600XL is a light tower equipped with a projector capable of delivering a maximum power of 520 W with which it can illuminate an area of 3200 m2.
It is appreciated in many industrial sectors:
- Road marking companies
- Asphalt paving crews
- Emergency services
- Civil defense
- Duct installers
- Highway companies
Main features of the LUMAPHORE LED 600XL:
Total lighting output: 520 W
Power supply output: 575 W
Protection index: IP65 / IK10
Wind resistance: 162 Km/h
Thermal protection: Yes
Temperature range for use: -15°/+40°
Lighting area: 3200 m2
Colour temperature: 5000 °K
Total lumens: 76200 lm
Colour rendering index: > 80
Diameter: 22.5 cm
Length: 91 cm
Weight: 7.7 kg
Tap type: Diameter: 26 mm
Optimum height for use: 4 m
Average assembly time: 2 min
Standard case: Included
Included Power cable (Schuko plug): 7 m
Suspension ring: Included
The advantages of LUMAPHORE:
- 3200 m² for 520 Watts
- Powerful floor lighting
- 100% immediate ignition
- Lightweight
- Sturdy: ABS, polycarbonate base, impact resistant PMMA diffuser
- Withstands harsh weather conditions
- Extremely multipurpose in its applications
Looking for a light tower with different characteristics? Access our dedicated area of light towers by clicking here
Images and technical data are not binding.
