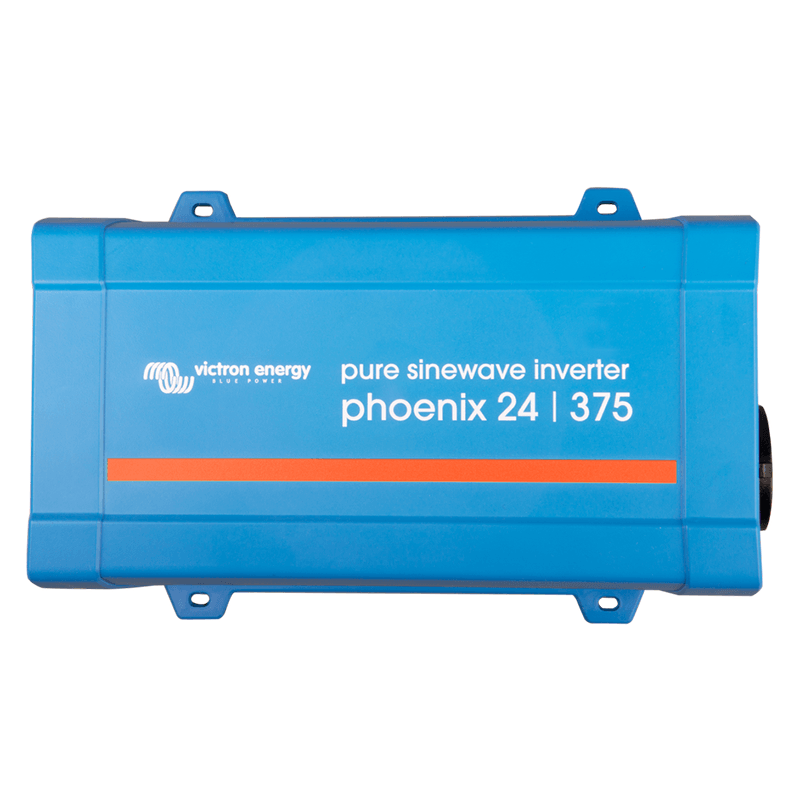

Victron Phoenix 24/375 VE Pure Sine Wave Inverter 700W

The Victron Phoenix 24/375VE is a sine wave inverter that ensures the operation of electrical devices up to 700W powered by a 24V battery.

The Victron Phoenix 24/375VE inverter features a compact, lightweight design that makes it perfectly suited for use in camping, on boats, in cars, or in other situations where a portable supply source is required. Designed to be powered by a 24 V battery, it offers a continuous output of 300 W, enabling the reliable powering of a variety of electrical devices such as laptops, cell phones, televisions and other similar equipment.

With a power rating of 300 watts, the Victron Phoenix 24/375VE can handle moderate power loads such as refrigerators, televisions, computers, lamps, and more. Thanks to its pure sine wave technology, it delivers a current similar to that supplied by the supply grid, ensuring stable and efficient operation of connected devices.

The Victron Phoenix 24/375VE inverter uses pure sine wave technology, which is ideal for powering devices that require a reliable and stable supply. It has numerous protection features, including overheat, overcurrent and short-circuit protection.

In addition, the Victron Phoenix 24/375VE inverter has an intuitive control panel that enables easy configuration and efficient performance monitoring. It also has several connection ports to facilitate the connection of devices and an automatic cooling fan to maintain an optimal operating temperature.

Technical Specifications Victron Phoenix 24/375VE

Waveform: Pure Sine Wave
Input Voltage: 24V
AC cont. output at 25 °C: 375 Va
Continuous output at 25 °C / 40 °C: 300 / 265 W
Maximum output: 700 W
Voltage: 120 / 230 Vac
Output Frequency: 50 / 60 Hz
Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc
Maximum efficiency: 89 / 90 %
Material and Color: aluminum (blue Ral 5012)
Protection category: IP 21
Length: 260 mm
Width: 165 mm
Height: 86 mm
Weight: 3 kg

Looking for a product with different technical characteristics? HERE you can find the area dedicated to inverters from Victron or other specialized brands.

Images and technical data are not binding and may be subject to revision by the manufacturer.
