BM2 MIDIA 19013 TSD High Pressure Cleaner 190 bar

01MI20
      BM2 MIDIA 19013 TSD High Pressure Cleaner 190 bar
      BM2 MIDIA 19013 TSD High Pressure Cleaner 190 bar
      BM2 MIDIA 19013 TSD High Pressure Cleaner 190 bar
      BM2 MIDIA 19013 TSD High Pressure Cleaner 190 bar
      BM2 MIDIA 19013 TSD High Pressure Cleaner 190 bar
      BM2 MIDIA 19013 TSD High Pressure Cleaner 190 bar
      BM2 MIDIA 19013 TSD High Pressure Cleaner 190 bar
      BM2 MIDIA 19013 TSD High Pressure Cleaner 190 bar
      BM2 MIDIA 19013 TSD High Pressure Cleaner 190 bar

      Phase type: Three-phase
      Frequency: 50 Hz
      Voltage: 400 V
      Maximum pressure: 190 bar - 19 Mpa - 2750 psi
      Maximum flow rate: 780 Lt./h
      Pump: IP E1
      Stop system: TSD
      Pump speed: 1450 rpm
      Maximum absorbed power: 4.2 KW
      Supply voltage: 400 V - 3ph - 50Hz
      Cleaning agent tank: 5 lt
      Maximum inlet temp: 40 °C
      Pallet quantities: 16 pcs
      Length: 810 mm.
      Width: 380 mm.
      Height: 870 mm.
      Weight: 50 Kg.

      IP E1: Pistons pump with pressure regulation

      List price
      2,176.11 € tax incl.
      1,783.70 € tax excl.
      Discounted Price
      1,632.08 € tax incl.
      1,337.77 € tax excl.
      Shipping from 36.60 € to Italy buy it today.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      BIEMMEDUE
      01MI20

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50
      Voltage (V)
      400
      Pump type
      IP E1
      Maximum output capacity (Lt/min)
      780
      Transportability
      Wheels and handles
      Length (mm)
      810
      Width (mm)
      380
      Height (mm)
      870
      Feed Type
      400V - 3ph - 50Hz
      maximum water temperature (°C)
      40
      Weight (Kg)
      50
      Maximum input power (KW)
      4.2
      Pump rotation (rpm)
      1450
      Maximum pressure (bar-MPa-psi)
      190 - 19 - 2750
      Stop system
      TSD
      Detergent tank
      5

      Specific References

      New

      BM2 MIDIA 19013 TSD HIGH PRESSURE CLEANER 190 BAR

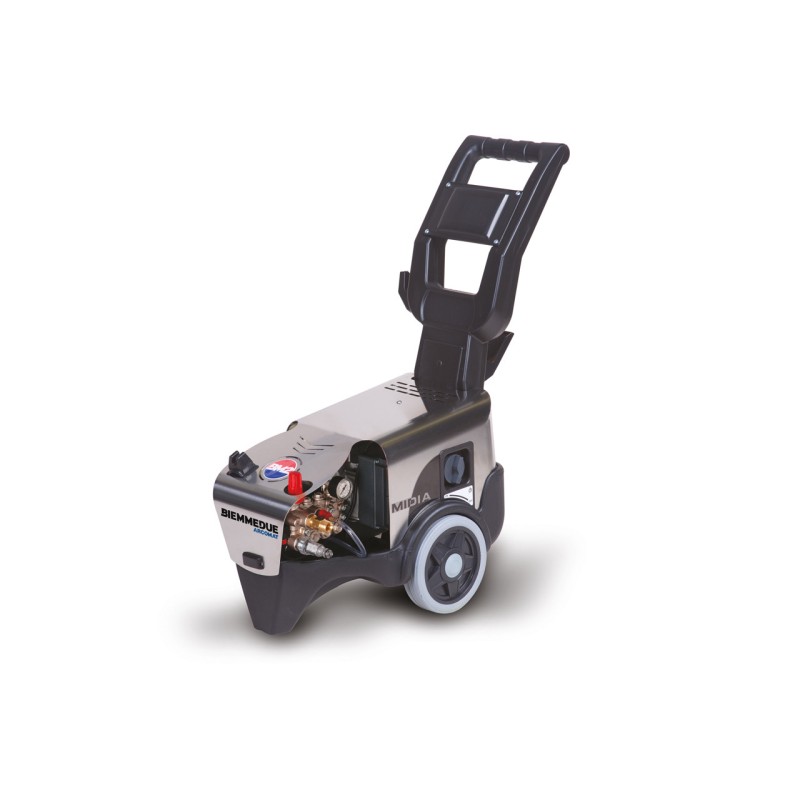

      The BM2 MIDIA 19013 TSD High Pressure Washer with 190 bar is a high-pressure cleaning solution ideal for
      a wide range of professional applications. The BM2 MIDIA 19013 TSD represents excellence in
      pressure washer technology, combining robustness, efficiency, and versatility. The BM2 MIDIA 190/13 TSD is
      equipped with a series of technical features that make it perfect for those seeking superior performance and
      reliability over time.

      One of the strengths of the BM2 MIDIA 19013 TSD is its pump system with a brass head,
      which ensures long-lasting durability and optimal resistance to corrosion. Additionally, the connecting rods with
      pistons provide constant power and excellent efficiency during use.

      The BM2 MIDIA 19013 TSD High Pressure Washer with 190 bar includes a delayed shutdown feature,
      which helps preserve the motor and pump, extending the device's lifespan. The high-efficiency motor and
      1450 rpm rotation ensure high performance and quiet operation.

      The shaft coupling protection system (SJ) for this model with a piston pump is another distinctive feature of
      the BM2 MIDIA 19013 TSD, protecting internal components from wear and damage. The thermal protection of
      the motor adds an additional level of safety, preventing overheating during prolonged use.

      The BM2 MIDIA 19013 TSD High Pressure Washer with 190 bar is equipped with a low-pressure detergent
      dispensing system, controllable directly from the washing head, offering precise control during cleaning.
      The washing jet angle is adjustable, allowing the water flow to be adapted to different cleaning needs.

      The AISI 430 cover not only protects the internal components of the BM2 MIDIA 19013 TSD but
      also contributes to a robust and durable design. The non-marking wheels ensure ease of

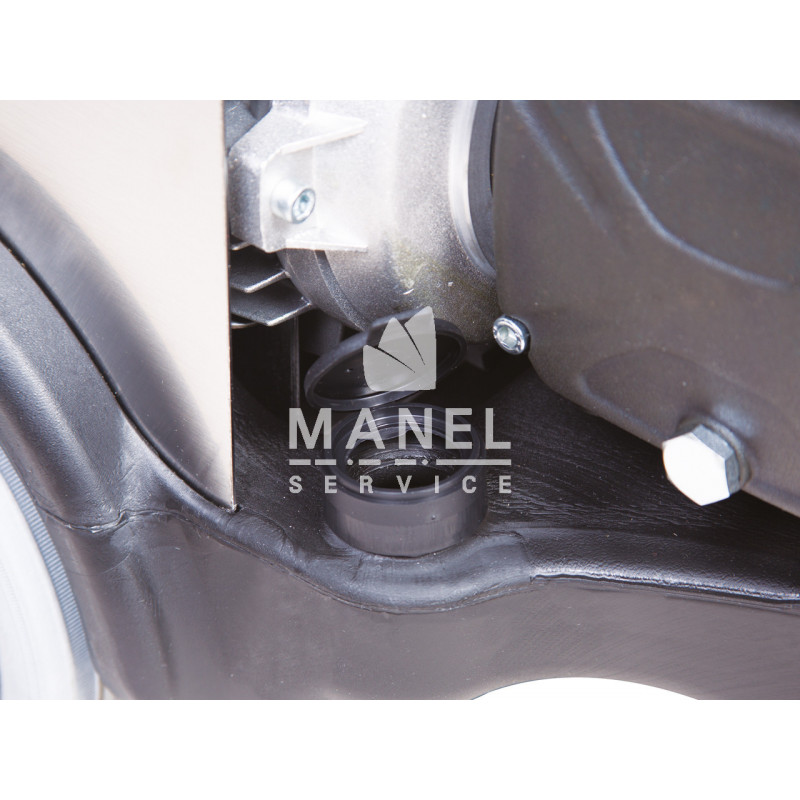

      movement without leaving marks on the floor, while the inspectable water filter facilitates maintenance and
      ensures optimal operation over time.

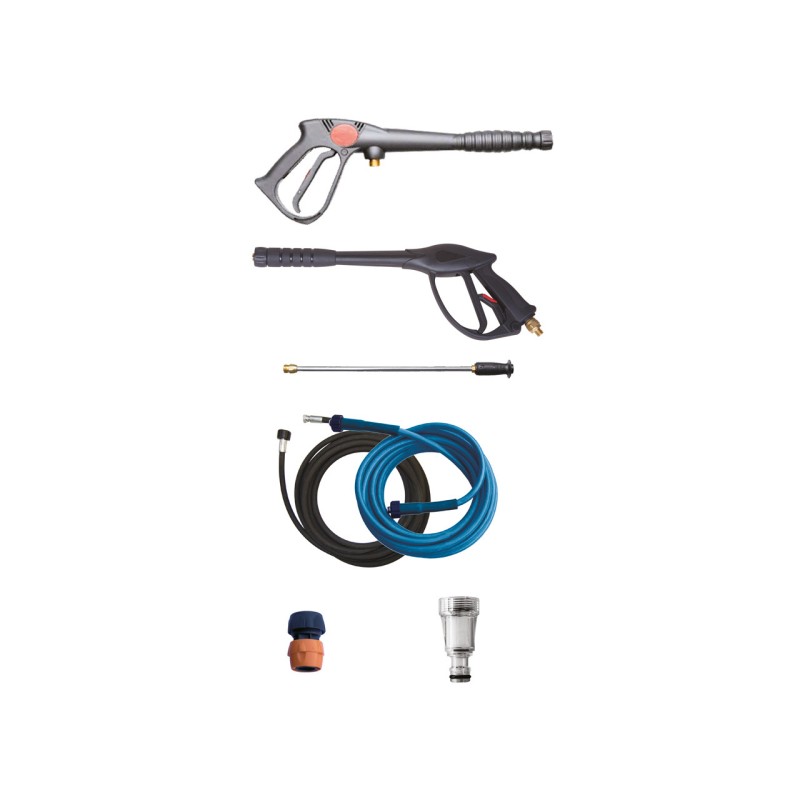

      The standard lance holder and the optional hose reel preparation increase the practicality of
      the BM2 MIDIA 19013 TSD, allowing everything to be kept organized and
      easily accessible during cleaning operations.

      From a technical standpoint, the BM2 MIDIA 19013 TSD Pressure Washer with 190 bar is a three-phase model
      with a frequency of 50 Hz and a voltage of 400 V. It offers a maximum pressure of 190 bar
      (19 Mpa - 2750 psi) and a maximum flow rate of 780 liters per hour,
      with a maximum power consumption of 4.2 KW. The detergent tank has a capacity of 5 liters, and
      the maximum input temperature is 40 °C.

      In conclusion, the BM2 MIDIA 190/13 TSD High Pressure Washer with 190 bar is an extraordinary machine that
      combines power, efficiency, and durability, making it the ideal choice for those seeking a high-quality professional
      cleaning solution.

      Technical Specifications BM2 MIDIA 19013 TSD:

      Phase type: Three-phase
      Frequency: 50 Hz
      Voltage: 400 V
      Maximum pressure: 190 bar - 19 Mpa - 2750 psi
      Maximum flow rate: 780 Lt./h
      Pump: IP E1
      Stop system: TSD
      Pump speed: 1450 rpm
      Maximum absorbed power: 4.2 KW
      Supply voltage: 400 V - 3ph - 50Hz
      Cleaning agent tank: 5 lt
      Maximum inlet temp: 40 °C
      Pallet quantities: 16 pcs
      Length: 810 mm.
      Width: 380 mm.
      Height: 870 mm.
      Weight: 50 Kg.

      BM2

      Are you looking for a hydrocleaner with different features? Here you can find the full range BM2 or other specialized brands.

      Images and technical data are not binding and may be subject to revisions by the manufacturer.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
