      PRAMAC GS25S4 - Hand pallet truck with a start and exit roller and with a load capacity up to 2500 Kg

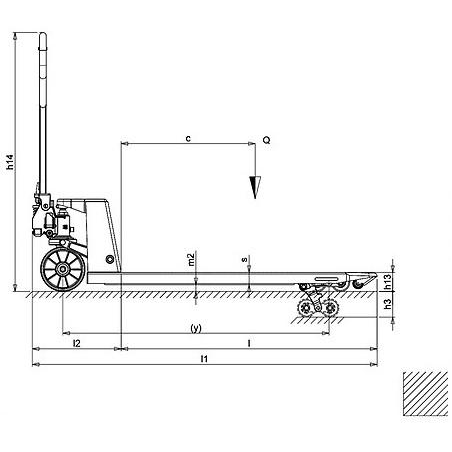

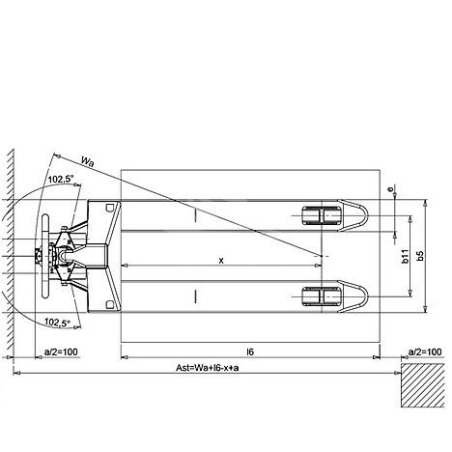

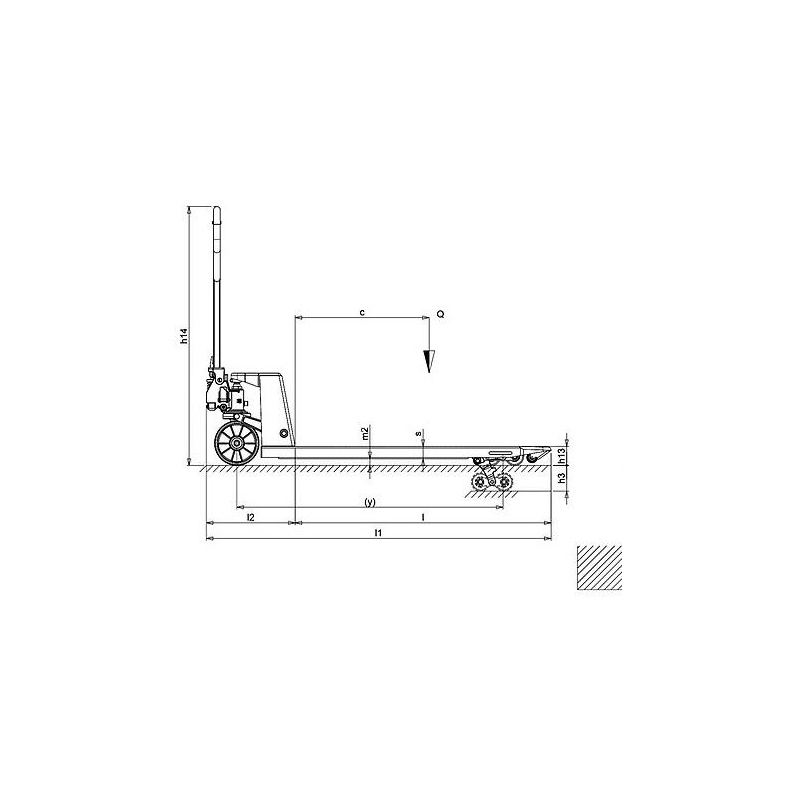

      PRAMAC GS25S4 - Hand pallet truck with a start and exit roller and with a load capacity up to 2500 Kg PRAMAC GS25S4 - The maximum pressure valve automatically stops the forks when is exceeded maximum load capacity PRAMAC GS25S4 - Technical drawing with profile view PRAMAC GS25S4 - Technical drawing with top view
      TEBB1AVY100

      Drive: Manual
      Operator type: Pedestrian
      Load capacity: 2500 Kg
      Quantity rear wheels: 4
      Lift height: 115 mm
      Overall lenght: 2400 mm
      Overall width: 525 mm
      Width fork: 150 mm
      Lenght fork: 2000 mm
      Distance between fork arms: 525 mm
      Aisle width: 2635 mm
      Turning radius: 2217 mm

      List price
      1,531.10 € tax incl.
      1,255.00 € tax excl.
      Discounted Price
      1,071.77 € tax incl.
      878.50 € tax excl.
      Quantity :
      Shipping from 164.70 € to Italy buy it today. tax incl.
      Calculate Shipping Cost
      Ask a question
      Offer on letterhead
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      LIFTER
      TEBB1AVY100

      Data sheet

      Drive
      Manual
      Operator type
      Pedestrian
      Load capacity (Kg)
      2500
      Load centre distance (mm)
      1000
      Load axle to end forks (mm)
      1782
      Wheel base (mm)
      2042
      Service weight (Kg)
      140
      Axle load, laden rear (Kg)
      1604
      Axle load, laden front (Kg)
      1036
      Axle load, unladen front (Kg)
      79
      Axle load, unladen rear (Kg)
      61
      Tyres: front wheels
      POLY.I. / NYLON
      Tyres: rear wheels
      NYLON
      Diameter steering wheels (mm)
      200
      Width steering wheels (mm)
      55
      Diameter load rollers (mm)
      82
      Width load rollers (mm)
      60
      Quantity rear wheels
      4
      Rear balancing axle
      No
      Tread front (mm)
      155
      Tread rear (mm)
      375
      Lift height (mm)
      115
      Height of tiller in drive position max (mm)
      1160
      Height lowered (mm)
      85
      Overall lenght (mm)
      2400
      Lenght to face of forks (mm)
      400
      Overall width (mm)
      525
      Thickness fork (mm)
      50
      Width fork (mm)
      150
      Lenght fork (mm)
      2000
      Distance between fork arms (mm)
      525
      Ground clearance at centre of wheelbase (mm)
      35
      Aisle width (mm)
      2635
      Turning radius (mm)
      2217
      Lifting speed laden (strokes)
      13
      Lifting speed unladen (strokes)
      13
      Weigher
      No

      Specific References

      New

      GS series is a suitable practical solution meeting all the needs of manual handling.
      The GS PRO pallet truck is equipped as a standard with a start and exit roller and a more ergonomic handle.

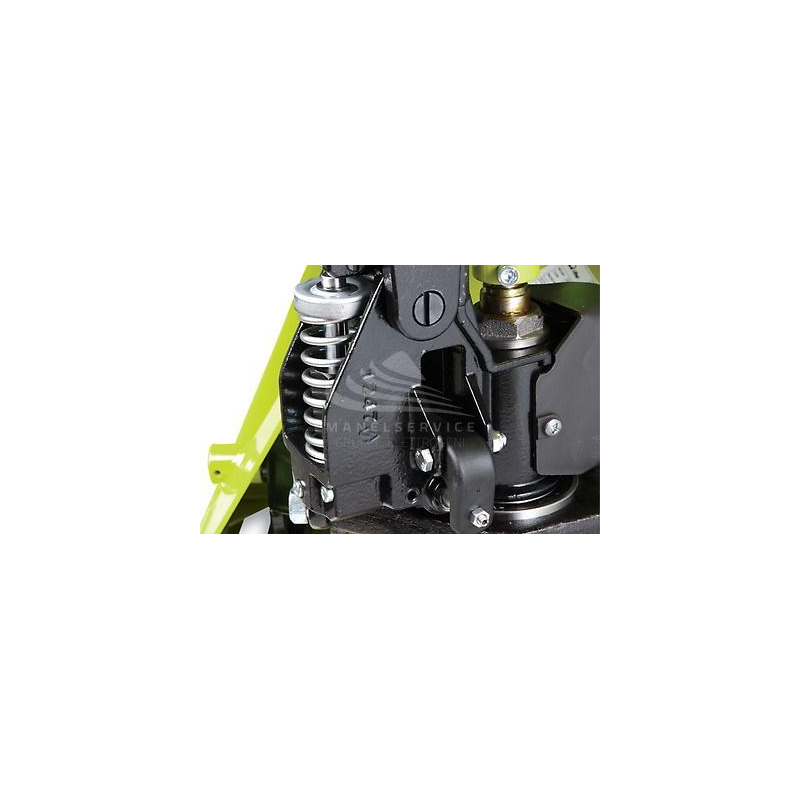

      Maximum pressure valve
      When the maximum load capacity is exceeded, oil pressure exceeds its maximum limit and the valve automatically locks the forks. Thus possible structural damage is avoided.



      Varnishing
      Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance to wear and atmospheric agents.



      The images are purely indicative.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
