PRAMAC LIFTER HAND PALLET TRUCK GS25S2 1220x525 SINGLE ROLLER

PRAMAC LIFTER HAND PALLET TRUCK GS25S2 1220x525 SINGLE ROLLER

Name: PRAMAC LIFTER HAND PALLET TRUCK GS25S2 1220x525 SINGLE ROLLER
Brand: LIFTER
SKU: PRAMAC LIFTER GS25S2-1220x525
Price: 471.8 EUR
Availability: InStock

Drive: Manual
Operator type: Pedestrian
Load capacity: 2500 Kg
Quantity rear wheels: 2
Lift height: 115 mm
Overall lenght: 1620 mm
Overall width: 525 mm
Width fork: 150 mm
Lenght fork: 1220 mm
Distance between fork arms: 525 mm
Aisle width: 1855 mm
Turning radius: 1437 mm

List price

575.60 € tax incl.

471.80 € tax excl.

Discounted Price

575.60 € tax incl.

471.80 € tax excl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: PRAMAC LIFTER HAND PALLET TRUCK GS25S2 1220x525 SINGLE ROLLER

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: PRAMAC LIFTER HAND PALLET TRUCK GS25S2 1220x525 SINGLE ROLLER

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: PRAMAC LIFTER HAND PALLET TRUCK GS25S2 1220x525 SINGLE ROLLER

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference PRAMAC LIFTER GS25S2-1220x525

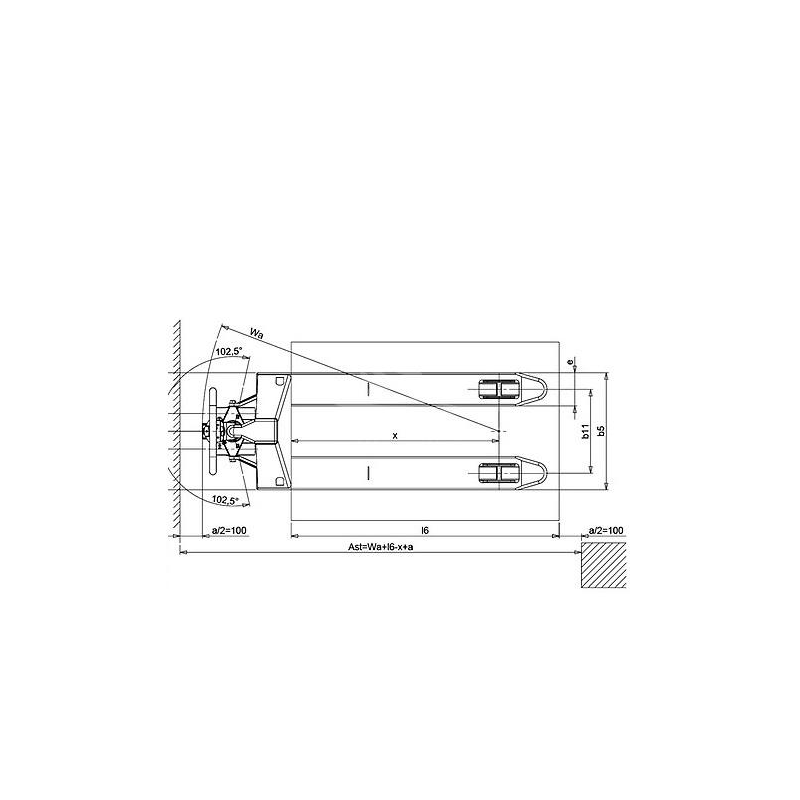

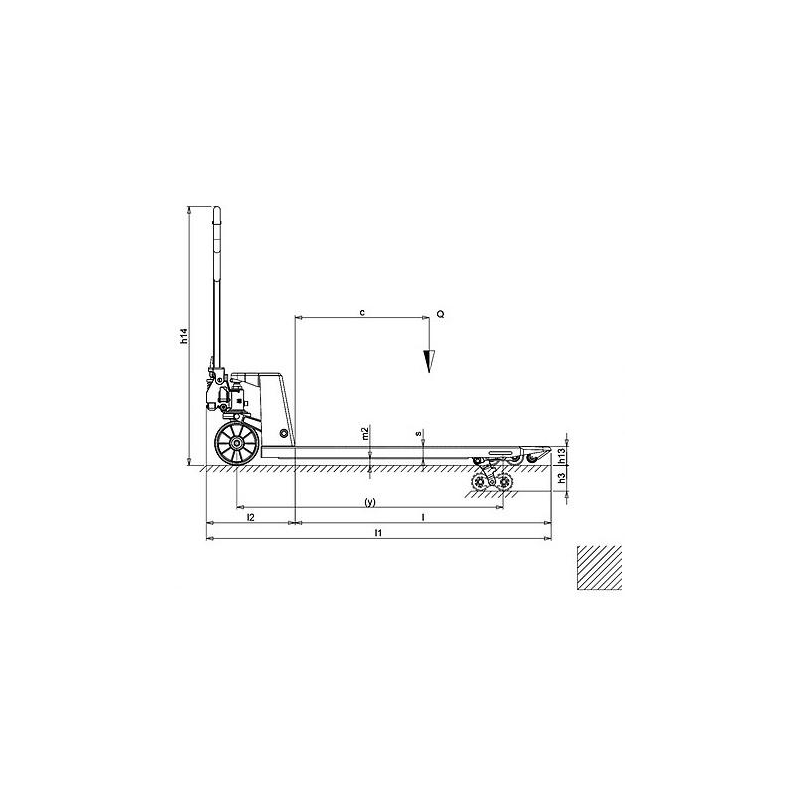

Data sheet

Drive: Manual
Operator type: Pedestrian
Load capacity (Kg): 2500
Load centre distance (mm): 610
Load axle to end forks (mm): 1002
Wheel base (mm): 1262
Service weight (Kg): 63
Axle load, laden rear (Kg): 1795
Axle load, laden front (Kg): 768
Axle load, unladen front (Kg): 43
Axle load, unladen rear (Kg): 20
Tyres: front wheels: POLY.I. / NYLON
Tyres: rear wheels: NYLON
Diameter steering wheels (mm): 200
Width steering wheels (mm): 55
Diameter load rollers (mm): 82
Width load rollers (mm): 82
Quantity rear wheels: 2
Rear balancing axle: No
Tread front (mm): 155
Tread rear (mm): 375
Lift height (mm): 115
Height of tiller in drive position max (mm): 1160
Height lowered (mm): 85
Overall lenght (mm): 1620
Lenght to face of forks (mm): 400
Overall width (mm): 525
Thickness fork (mm): 55
Width fork (mm): 150
Lenght fork (mm): 1220
Distance between fork arms (mm): 525
Ground clearance at centre of wheelbase (mm): 30
Aisle width (mm): 1855
Turning radius (mm): 1437
Lifting speed laden (strokes): 13
Lifting speed unladen (strokes): 13
Weigher: No

Specific References

Condition New

GS series is a suitable practical solution meeting all the needs of manual handling.
The GS PRO pallet truck is equipped as a standard with a start and exit roller and a more ergonomic handle.

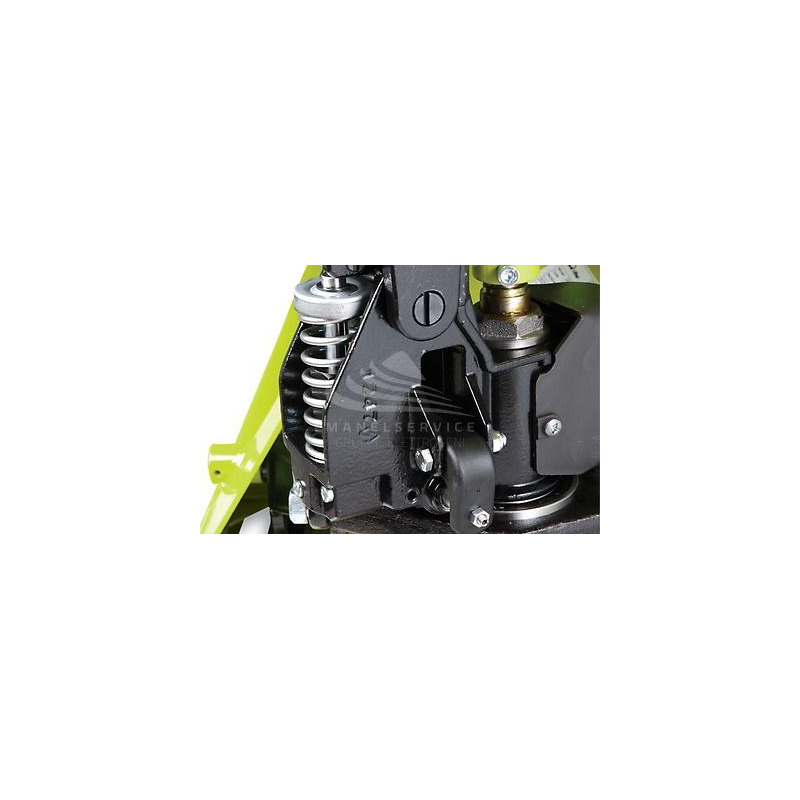

Maximum pressure valve
When the maximum load capacity is exceeded, oil pressure exceeds its maximum limit and the valve automatically locks the forks. Thus possible structural damage is avoided.

Varnishing
Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance to wear and atmospheric agents.

The images are purely indicative.
