PRAMAC LIFTER HAND PALLET TRUCK AGILE S4 1150x525
      PRAMAC LIFTER HAND PALLET TRUCK AGILE S4 1150x525
      PRAMAC LIFTER HAND PALLET TRUCK AGILE S4 1150x525

      PRAMAC LIFTER HAND PALLET TRUCK AGILE S4 1150x525

      Drive: Electric
      Operator type: Pedestrian
      Load capacity: 1200 Kg
      Quantity rear wheels: 4
      Lift height: 115 mm
      Overall lenght: 1600 mm
      Overall width: 525 mm
      Width fork: 150 mm
      Lenght fork: 1150 mm
      Aisle width: 2063 mm
      Turning radius: 1382 mm

      List price
      2,027.40 € tax incl.
      1,661.80 € tax excl.
      Discounted Price
      2,027.40 € tax incl.
      1,661.80 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: PRAMAC LIFTER HAND PALLET TRUCK AGILE S4 1150x525

      PERSONAL DATA


      Ask a question
      Product: PRAMAC LIFTER HAND PALLET TRUCK AGILE S4 1150x525
      Offer on letterhead
      Product: PRAMAC LIFTER HAND PALLET TRUCK AGILE S4 1150x525
      LIFTER
      EJ741000T00

      Data sheet

      Battery type
      Li-Ion
      Drive
      Electric
      Operator type
      Pedestrian
      Load capacity (Kg)
      1200
      Load centre distance (mm)
      600
      Load axle to end forks (mm)
      932
      Wheel base (mm)
      1192
      Service weight (Kg)
      88
      Axle load, laden rear (Kg)
      891
      Axle load, laden front (Kg)
      395
      Axle load, unladen front (Kg)
      59
      Axle load, unladen rear (Kg)
      27
      Tyres: front wheels
      POLY.I. / NYLON
      Tyres: rear wheels
      NYLON
      Diameter steering wheels (mm)
      200
      Width steering wheels (mm)
      40
      Diameter load rollers (mm)
      82
      Width load rollers (mm)
      60
      Quantity rear wheels
      4
      Quantity front wheels
      2 driven
      Rear balancing axle
      No
      Tread front (mm)
      162
      Tread rear (mm)
      375
      Lift height (mm)
      115
      Height of tiller in drive position max (mm)
      1185
      Height of tiller in drive position min (mm)
      710
      Height lowered (mm)
      85
      Overall lenght (mm)
      1600
      Lenght to face of forks (mm)
      450
      Overall width (mm)
      525
      Thickness fork (mm)
      55
      Width fork (mm)
      150
      Lenght fork (mm)
      1150
      Distance between fork arms (mm)
      525
      Ground clearance at centre of wheelbase (mm)
      30
      Aisle width (mm)
      2063
      Turning radius (mm)
      1382
      Travel speed laden (Km/h)
      4.2
      Travel speed unladen (Km/h)
      5.3
      Lifting speed laden (strokes)
      12
      Lifting speed unladen (strokes)
      12
      Lowering speed laden (m/s)
      0.1
      Lowering speed unladen (m/s)
      0.02
      Max gradeability laden (%)
      5
      Max gradeability unladen (%)
      10
      Service brake
      Electric
      Drive motor power (KW)
      2x0.25
      Battery voltage (V)
      36
      Battery capacity min (Ah)
      10.4
      Battery capacity max (Ah)
      10.4
      Battery weight min (Kg)
      3
      Battery weight max (Kg)
      3
      Sound level at driver's ear
      60
      Weigher
      No
      Video
      oHnuEp3gsMU

      Specific References

      New

      The first motorised two-wheel-drive pallet truck for improved stability and traction. Compact, lightweight, simple, easy to use.
      Compact as a hand pallet truck, it can be used in any situation to make work smoother.

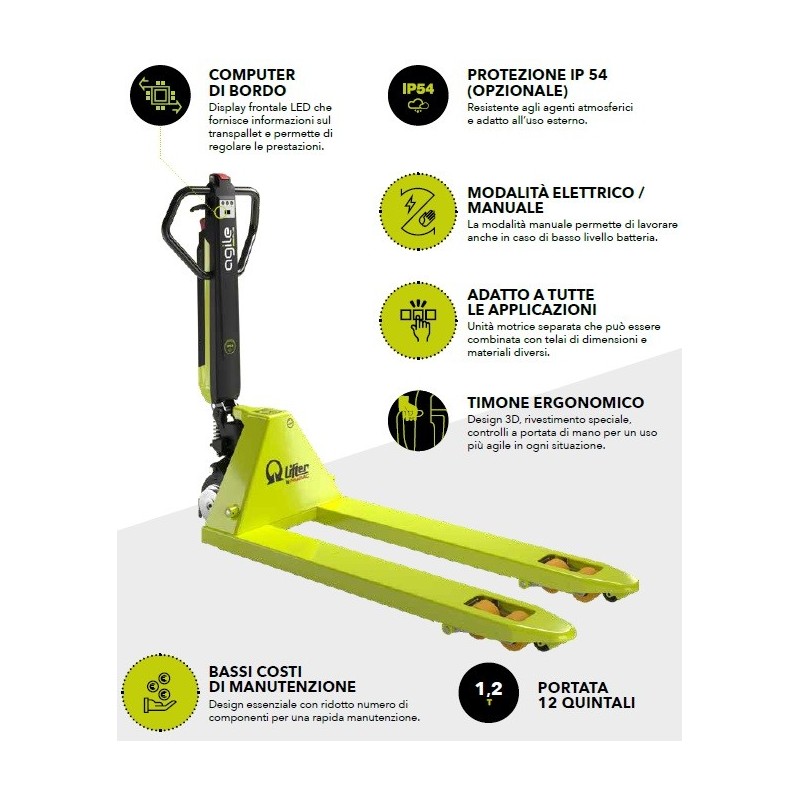

      AGILE
      The innovative motorized pallet truck that combines electric and manual function for convenient usability. Compact, light, simple and easy to use, AGILE is the perfect pallet truck to minimize the operator effort, increasing efficiency and safety. Ideal in deliveries, supermarket, and retail shop, it can be used by everyone.

      DOUBLE TRACTION WHEEL
      The first pallet truck with two traction/steering wheels in the market. The big diameter (200mm) and tread (160mm) provide great stability without the needs of stabilizers. Non-marking rubbers grant great traction and comfortable usage on all applications.

      LI-ION BATTERY
      Long life 36V battery easy to remove for charging and continuous operation with the spare battery.
      Two types of charger available (bench and wall mounted) with standard and fast charging time.

      HIGH SPEED
      The two motorwheels grant high performances and make the AGILE the fastest of the category.
      The AC technology and the soft non-marking rubbers make the AGILE an extremely quiet unit.

      ELECTRIC / MANUAL SWITCH

      The AGILE is equipped with a MANUAL SWITCH that can be used in the eventual case of low battery: electro brakes are released and the small friction created makes the AGILE as reliable as a standard pallet truck. On order to move the unit in narrow space AGILE is equipped with TURTLE SWITCH to allow for operation with the tiller in vertical position on reduced speed.

      ALL FRAMES USE

      Separate drive unit can be combined with frames of any size or metal (steel painted, galvanized, stainless steel) with a low impact cost and short delivery time. Please ask to your Pramac dealer for the combination requested.

      LOW MAINTENANCE COST
      Simple design with very few components and wiring enabling easy and fast maintenance.

      Not binding images and technical data.
