      Phase type: Single-phase / Three-phase
      Maximum three-phase power: 12.3 KW / 15.4 KVA
      Three-phase continuous power: 11.2 KW / 14 KVA
      Single-phase maximum power: 4.1 KW / 5.1 KVA
      Single-phase continuous use power: 3.73 KW / 4.8 KVA
      Fuel: Diesel
      Voltage: 230 V / 400 V
      Frequency: 50 Hz
      Motor: PERKINS 403A-15G1
      Engine speed: 1500 rpm
      Starting: Electric
      Consumption: 2.8 Lt/h at 75% load
      Length: 1580 mm
      Width: 700 mm
      Height: 1050 mm
      Weight: 515 Kg
      Supersilenced
      AVR

      List price
      8,840.12 € tax incl.
      7,246.00 € tax excl.
      Discounted Price
      8,840.12 € tax incl.
      7,246.00 € tax excl.
      Shipping from 160.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: CGM 14P - COFANATO CON CENTRALINA AUTOMATICA

      PERSONAL DATA


      Ask a question
      Product: CGM 14P - COFANATO CON CENTRALINA AUTOMATICA
      Offer on letterhead
      Product: CGM 14P - COFANATO CON CENTRALINA AUTOMATICA
      CGM
      CGM 14P-C20 AUTOMATICO

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      4.1
      Continuous power single phase (KW)
      3.73
      Maximum power single phase (KVA)
      5.1
      Continuous power single phase (KVA)
      4.8
      Maximum power three phase (KW)
      12.3
      Continuous power three phase (KW)
      11.2
      Maximum power three phase (KVA)
      15.4
      Continuous power three phase (KVA)
      14
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      Morsettiera
      Engine
      PERKINS 403A-15G1, 4 stroke naturally aspirated
      Emissions Regulations
      Stationary Use
      Engine rpm (rpm)
      1500
      Starting system
      Elettrico
      Engine capacity (cm³)
      1496
      Number cylinders
      3
      Cooling
      Water
      Alternator
      Brushless
      Poles
      4
      Protection degree
      IP44
      Bore x stroke (mm)
      84 x 90
      Fuel tank capacity (L)
      55
      Consumption (L/h)
      2.8
      Running time (h)
      19.6
      Acoustic pressure
      68 dB(A) at 7 m
      Length (mm)
      1580
      Width (mm)
      700
      Height (mm)
      1050
      Dry weight (Kg)
      515
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      ATS Switch device
      Optional
      Voltage regulator
      AVR
      Engine manufacturer
      Perkins

      Specific References

      New

      CGM 14P-C20 Single/three-phase 14KVA super-silenced generator with automatic control panel

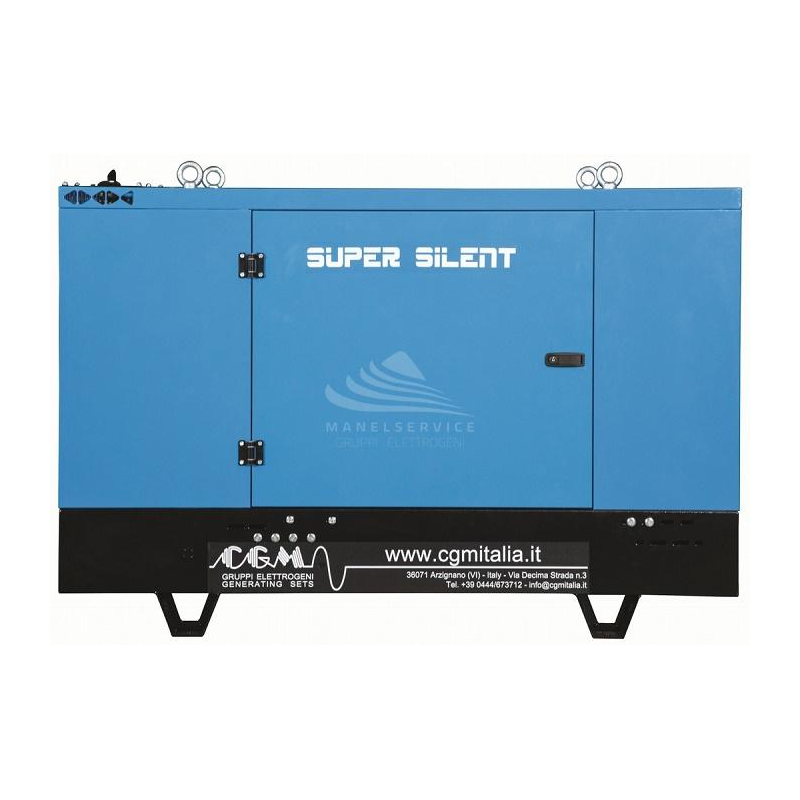

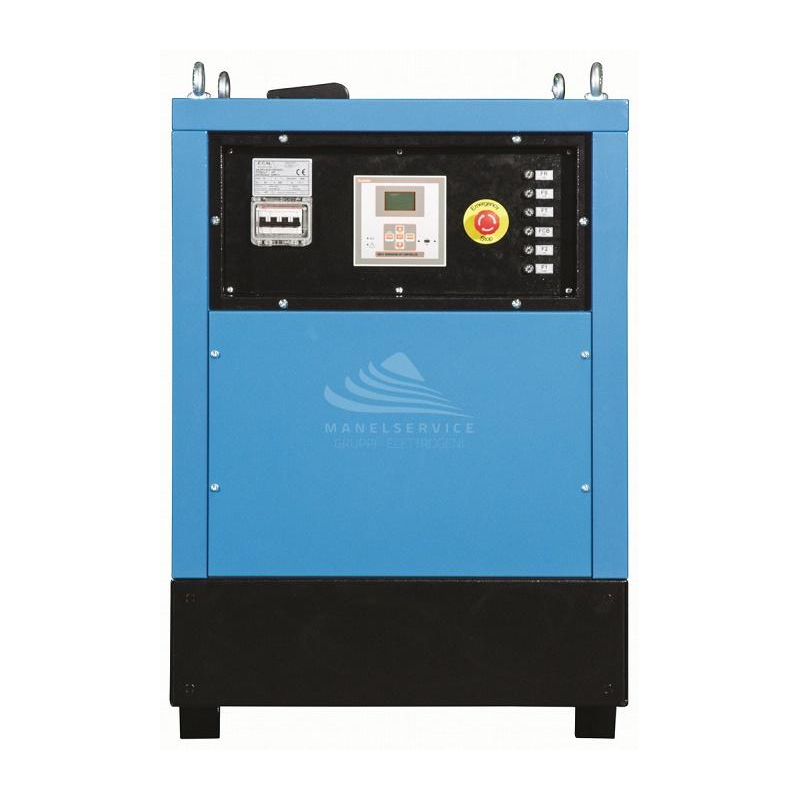

      The CGM 14P-C20 is a single/three phase 14KVA generator with a 1500 rpm Perkins diesel engine, compact and easy to use, mounted on a fixed base. The CGM 14P-C20 is equipped with a weatherproof, structural steel sheet soundproof cabin and an interior cladding of high noise reduction material, making the CGM 14P-C20 supersilenced.

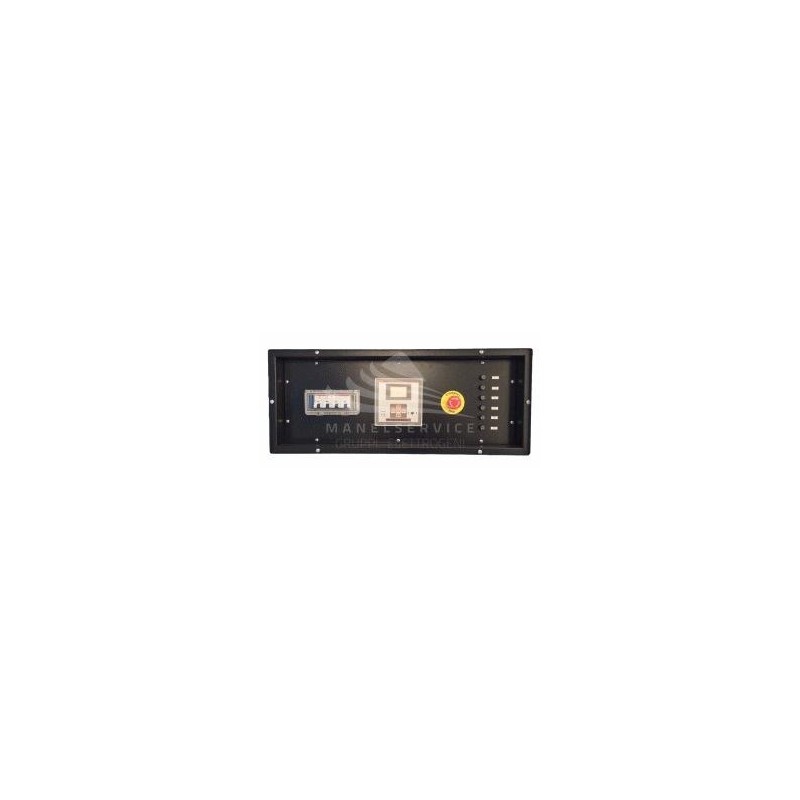

      The CGM 14P-C20 generator consists of a Linz, Stamford or Mecc Alte, self-excited, brushless alternator with AVR voltage regulator. The CGM 14P-C20 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 2,8 litres per hour at 75% load. In addition, it has a control panel with an automatic control unit and terminal box for automatic start-up.
      This generator is perfect for use outdoors, such as on construction sites.
      The CGM 14P-C20 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

      Technical characteristics of the CGM 14P-C20 generator:
      Phase type: Single-phase / Three-phase
      Maximum three-phase power: 12.3 KW / 15.4 KVA
      Three-phase continuous power: 11.2 KW / 14 KVA
      Single-phase maximum power: 4.1 KW / 5.1 KVA
      Single-phase continuous use power: 3.73 KW / 4.8 KVA
      Fuel: Diesel
      Voltage: 230 V / 400 V
      Frequency: 50 Hz
      Motor: PERKINS 403A-15G1
      Engine speed: 1500 rpm
      Starting: Electric
      Consumption: 2.8 Lt/h at 75% load
      Length: 1580 mm
      Width: 700 mm
      Height: 1050 mm
      Weight: 515 Kg
      Supersilenced
      AVR

      If you are looking for a product like the CGM 14P-C20 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

      Images and technical data are not binding.
