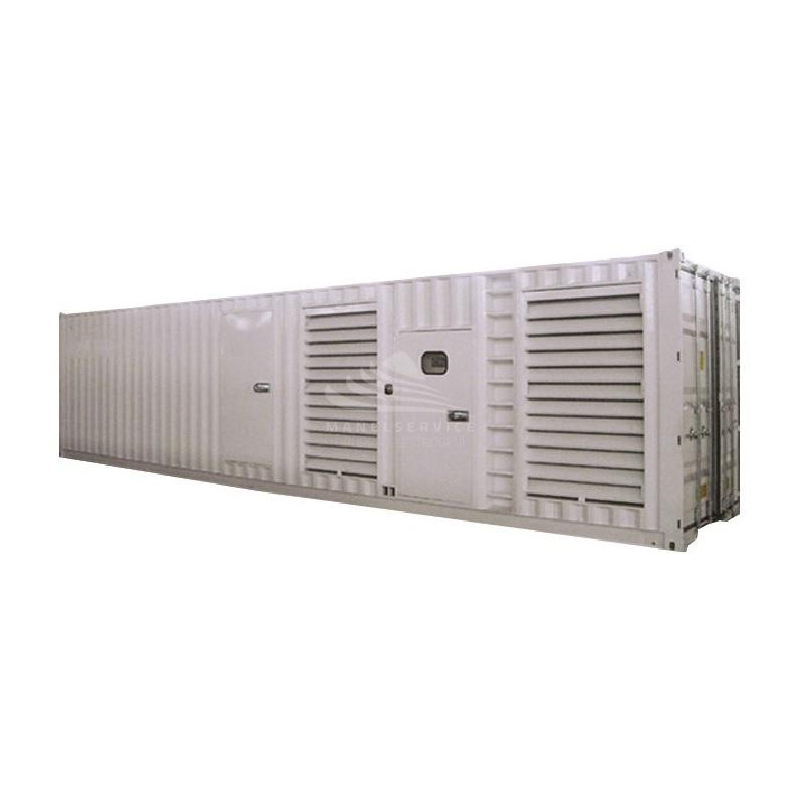

CGM 1250P - BOX WITH AUTOMATIC CONTROL UNIT

Name: CGM 1250P - BOX WITH AUTOMATIC CONTROL UNIT
Brand: CGM
SKU: CGM 1250P COFANATO MANUALE
Price: 289247.36 EUR
Availability: InStock

Reference CGM 1250P COFANATO MANUALE

CGM 1250P - COFANATO CON CENTRALINA AUTOMATICA

Three-phase maximum power: 1100 KW
Three-phase continuous power: 1000 KW
Three-phase maximum power: 1375 KVA
Three-phase continuous power: 1250 KVA
Fuel: Diesel
Voltage: 400 V + N
Frequency: 50 Hz
Current: 1805 A
Power factor cosφ: 0.8
Electrical protection: IP44
Engine: PERKINS 4012 46TWG2A
Displacement: 45842 cc
Engine speed: 1500 rpm
Bore x stroke: 160 x 190 mm
Aspiration: Turbo
Speed governor: Electronic
Number and arrangement of cylinders: V12 60°
Cooling system: Water
Starting system: Electric
Alternator: MARELLI MOTORI, brushless
Poles: 4
Voltage regulator system: AVR
Consumption: 196 L/h at 75% load / 259 L/h at 100% load
Tank capacity: 400 L
Autonomy: 2 h at 75% load
Sound pressure level: 70 dB(A) at 7 m
Length: 12192 mm
Width: 2438 mm
Height: 2896 mm
Weight: 11500 Kg

List price

462,794.80 € tax incl.

379,340.00 € tax excl.

Discounted Price

289,247.36 € tax incl.

237,088.00 € tax excl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CGM 1250P COFANATO MANUALE

Data sheet

Phase: Single phase / Three phase
Maximum power three phase (KW): 1100
Continuous power three phase (KW): 1000
Maximum power three phase (KVA): 1375
Continuous power three phase (KVA): 1250
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: PERKINS 403A-11G
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Electric
Engine capacity (cm³): 45842
Number cylinders: 12
Cylinders' position: V 60°
Cooling: Water
Alternator: Marelli, brushless
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 160 x 190
Fuel tank capacity (L): 400
Consumption (L/h): 196
Running time (h): 2 al 75% del carico
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 12192
Width (mm): 2438
Height (mm): 2896
Dry weight (Kg): 11500
Silenced: Yes
Super silenced: Yes
ATS Switch device: No
Voltage regulator: AVR
Engine manufacturer: Perkins

Specific References

Condition New

These generator sets are equipped with diesel engines from Lombardini, Kohler, Perkins, FPT, Doosan, Deutz, and Volvo, with electric start and battery, coupled by bell housing and flexible coupling, mounted on a fixed base with anti-vibration mounts and a fuel tank integrated into the base frame.

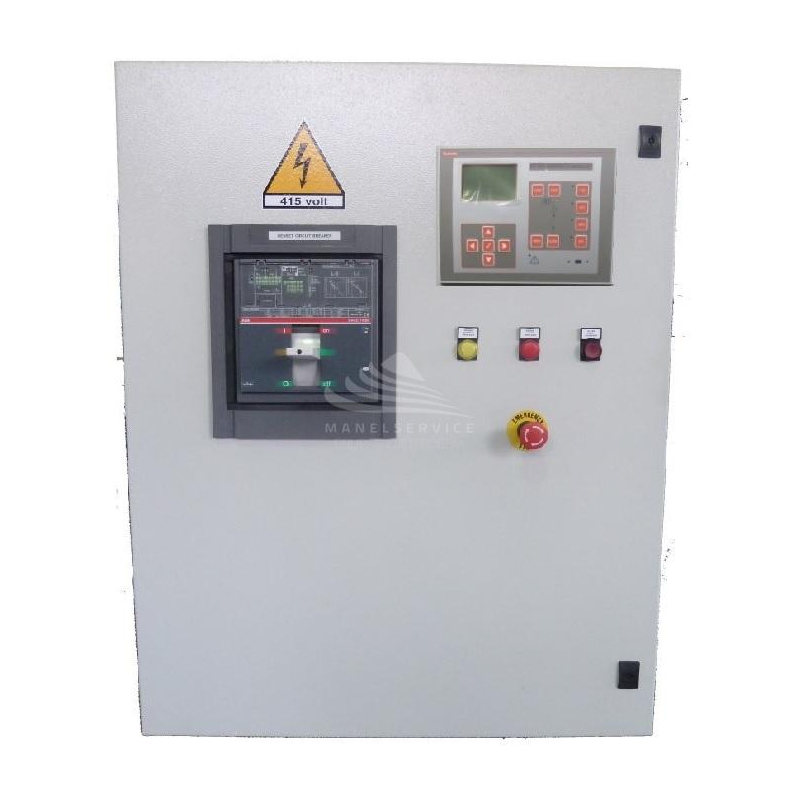

Manual control panel mounted on the unit, equipped with the following instrumentation: circuit breaker protection, voltmeter, 1 or 3 ammeters (depending on power), counter, frequency meter, ignition key, visual indicators for low oil pressure, high coolant temperature, battery charging alternator, low fuel level, with automatic shutdown in case of faults, and socket or terminal board for use.

On request: automatic panels, slow or fast towing trolleys (for registration), protective canopies, soundproof canopies, special configurations.

Available alternators: Linz Electric, Marelli Motori, Stamford (Mecc Alte only on request with surcharge).

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
