MOSA GE S-6500 YDT RECOIL STARTER STAGE 5
      MOSA GE S-6500 YDT RECOIL STARTER STAGE 5

      MOSA GE S-6500 YDT RECOIL STARTER STAGE 5

      CK5P7011

      Maximum power three-phase: 5.2 KW
      Three-phase continuous use power: 4.6 KW
      Maximum power three-phase: 6.5 KVA
      Three phase continuous use power: 5.7 KVA
      Single phase continuous use power: 3.2 KW
      Single-phase continuous use power: 4 KVA
      Fuel: Diesel
      Voltage: 230 V / 400 V
      Frequency: 50 Hz
      Engine: Yanmar L100V STAGE 5
      Starting: Recoil
      Compound
      Acoustic power measured LwA: 99 dB(A) (74 dB(A) @ 7m)
      Consumption: 1 Lt/h at 75% of the load
      Length: 770 mm
      Width: 520 mm
      Height: 650 mm
      Weight: 127 Kg

      List price
      5,416.80 € tax incl.
      4,440.00 € tax excl.
      Discounted Price
      3,050.00 € tax incl.
      2,500.00 € tax excl.
      Shipping from 50.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MOSA
      CK5P7011

      Data sheet

      Phase
      Single phase / Three phase
      Continuous power single phase (KW)
      3.2
      Continuous power single phase (KVA)
      4
      Maximum power three phase (KW)
      5.2
      Continuous power three phase (KW)
      4.6
      Maximum power three phase (KVA)
      6.5
      Continuous power three phase (KVA)
      5.7
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      1 x 400V 16A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE - 1 x 230V 16A 2P+T SCHUKO
      Engine
      YANMAR L 100 V
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      3000
      Speed governor
      Mechanical
      Ignition
      Recoil
      Starting system
      Pull starter
      Engine capacity (cm³)
      435
      Number cylinders
      1
      Oil capacity (L)
      1.6
      Cooling
      Air
      Alternator
      Synchronous self-excited, self-regulated
      Bore x stroke (mm)
      86 x 75
      Fuel tank capacity (L)
      20
      Consumption (L/h)
      1 at 75% of the load
      Running time (h)
      20 at 75% of the load
      Acoustic pressure
      74 dB(A) at 7 m
      Length (mm)
      770
      Width (mm)
      520
      Height (mm)
      650
      Dry weight (Kg)
      118
      Silenced
      Yes
      Super silenced
      No
      ATS Switch device
      No
      Voltage regulator
      Compound / AVR (optional)

      Specific References

      New

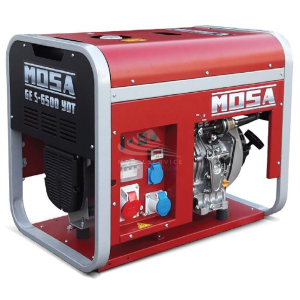

      MOSA GES-6500 YDT 5,2 KW

      MOSA GES-6500 YDT is a three-phase generating set with a YANMAR L 100 N diesel engine capable of delivering a power of 5.2KW.

      The MOSA GES-6500 YDT generator set is equipped with a manual recoil starter. The alternator of the MOSA GES-6500 YDT generator set is synchronous, three-phase, self-excited, self-regulated and brushless with class H insulation.

      MOSA is compact and compact.

      MOSA is compact and convenient to maneuver and transport thanks to its compact size, its weight of 127 kg as well as its practical tubular handles. Generator set with partial cowling to reduce noise emissions.
      The MOSA GES-6500 YDT generator set with 20-liter tank has a fuel consumption of 1 liter/hour at 75% load for a range of up to 20 hours.

      Sockets:
      1x 400V 16A 3P+N+T CEE
      1x 230V 16A 2P+T CEE
      1x 230V 16A 2P+T Schuko

      Technical specifications MOSA GES-6500 YDT:

      Three-phase Stand-by Output (LTP): 6.5 kVA (5.2 kW) / 400V / 9.4A
      Three-phase PRP Output: 5.7 kVA (4.6 kW) / 400V / 8.2A
      Single-phase PRP Output: 4 kVA / 230V / 17.4A
      Frequency: 50 Hz
      Cos ϕ: 0.8

      MOTOR TECHNICAL DATA
      Model: YANMAR L 100 N
      Net stand-by output: 6.5 kWm (8.8 hp)
      Net PRP output: 5.7 kWm (7. 7 hp)
      Cylinders / Displacement: 1 / 435 cm³
      Bore / Stroke: 86 / 75 (mm)
      Compression Ratio: 20 : 1
      RPM Control: Mechanical
      110 % (Stand-by Power): 1.5 lt. /h
      100 % PRP: 1.3 lt./h
      75 % PRP: 1 lt./h
      50 % PRP: 0.8 lt./h
      Cooling system: Air
      Sump oil capacity: 1.6 lt.
      Maximum back pressure: 4.3 kPa
      Starter motor power: 0.8 kW
      Battery charging alternating capacity: 15 A
      Cold starting: 0°C

      .

      TECHNICAL DATA ALTERNATOR
      Continuous power: 7 kVA
      Standby power: 7.7 kVA
      Single-phase voltage: 400 Vac
      Frequency: 50 Hz
      Cos ϕ: 0.8
      Voltage regulation accuracy: ± 4 %
      Sustained short-circuit current: 3 In
      Transient Cdt (100% of load): 15 %
      Yield at 100% of load: 80. 5% (400V - Cosϕ 0.8)
      Isolation: Class H
      Connection - Terminals: Series - No. 6
      Electromagnetic Compatibility (Radio Interference Suppression): EN55011
      Harmonic Distortion - THD: < 4 %
      Direct Synchronous - Xd: 270 %
      Direct Transitory - X'd: 20 %
      Direct Subtransitory - X "d: 6. 5 %
      Synchronous in quad. - Xq: 150 %
      Transitory - T'd: 33 ms
      Subtransitory - T "d: 5.5 ms
      Unloaded - T'do: 450ms
      Short-circuit ratio Kcc: 0.60
      Protection class: IP 23
      Cooling air flow: 0.062/m³/sec
      Coupling - Bearings: Direct J609b - N°1

      GENERAL SPECIFICATIONS
      Tank capacity: 20 lt.
      Run time (75% of PRP): 20 h
      Battery starting: 12 Vdc -18Ah (AE)
      Measured acoustic power LwA (pressure LpA): 99 dB(A) (74 dB(A) @ 7m)
      Performance class: G2

      MOSA GES-6500 YDT portable generator set - Yanmar diesel engine recoil start - Three-phase alternator - Three-phase power 5.7 kVA (4. 6 kW)

      Features:
      - Recoil start
      - Engine stop for low oil level
      - Circuit breaker
      - Fuel level indicator
      - Differential switch or insulation monitor (optional)
      - Fully protective and partially enclosed stretcher
      -. Portable
      - Compliant with CE safety directives
      - AVR version on request
      - Electric start on request

      If you are looking for another product like the MOSA GES-6500 YDT generator set then you can browse our catalog for more terrestrial generators.

      Images and technical data are not binding.

      .

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
