Single-phase continuous use power: 3.6 KW
Single-phase continuous use power: 4 kVA
Single-phase maximum power: 4.5 KW
Maximum power single-phase: 5 kVA
Fuel: Gasoline
Voltage: 230 V
Frequency: 50 Hz
Engine: B&S - XR1450
Starting: Manual recoil starter
Consumption: 1.9 Lt/h at 75% of the load
Acoustic power measured LwA: 98 dB(A) (73 dB(A) @ 7m)
Length: 770 mm
Width: 520 mm
Height: 650 mm
Weight: 86 Kg
Data sheet
Specific References

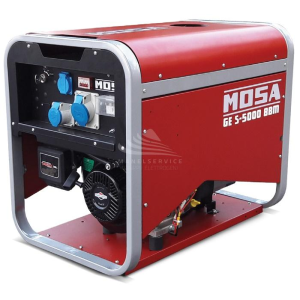

MOSA GES-5000 BBM is a single-phase generating set with a Briggs&Stratton gasoline engine capable of delivering a power of 4.5 kW. The MOSA GES-5000 BBM generating set is equipped with manual recoil starter. The alternator of the MOSA GES-5000 BBM generator set is synchronous, single-phase, self-excited, self-regulated and brushless with class H insulation.
MOSA is compact and convenient to maneuver and transport thanks to its compact size, its weight of 76 kg as well as its practical tubular handles. The MOSA GES-5000 BBM generator set with 20-liter tank has a fuel consumption of 1.9 liters/hour at 75% load for up to 10 hours autonomy.
Sockets:
1x230V 32A 2P+E CEE
1x230V 16A 2P+E CEE
1x230V 16A 2P+E Schuko
Technical specifications MOSA GES-5000 BBM :
Single-phase output Stand-by (LTP): 5 kVA (4.5 kW) / 230V / 21.7A
Single-phase output PRP: 4 kVA (3.6 kW) / 230V / 17.4A
Frequency: 50 Hz
Cos ϕ: 0.9
ENGINE TECHNICAL DATA
Model: B&S - XR1450
RPM control: Mechanical
FUEL CONSUMPTION
110 % (Stand-by power): 2.9 lt. /h
100 % PRP: 2.6 lt./h
75 % PRP: 1.9 lt./h
50 % PRP: 1.3 lt./h
Cooling system: Air
Sump oil capacity: 1.1 lt.
GENERAL SPECIFICATIONS
Tank capacity: 20 lt.
Run time (75% of PRP): 10.5 h
Acoustic power LwA (pressure LpA): 98 dB(A) (73 dB(A) @ 7m)
Performance class: G2
Length: 770 mm
Width: 520 mm
Height: 650 mm
Weight: 86 Kg
MOSA GES-5000 BBM portable generator set - Briggs&Stratton gasoline engine recoil start - Single phase alternator - Single phase power 4 kVA (3. 6 kW)
Features:
- Electric start
- Engine stop for low oil level
- Thermomagnetic circuit breaker
- Fuel level indicator
- Protective stretcher and partially hooded
- Silenced
- Portable
- Complies with CE directives for noise and safety
- AVR Voltage regulator
If you are looking for another product like the MOSA GES-5000 BBM generator set then you can browse our catalog for more terrestrial-generators.
Images and technical data are not binding.
.
