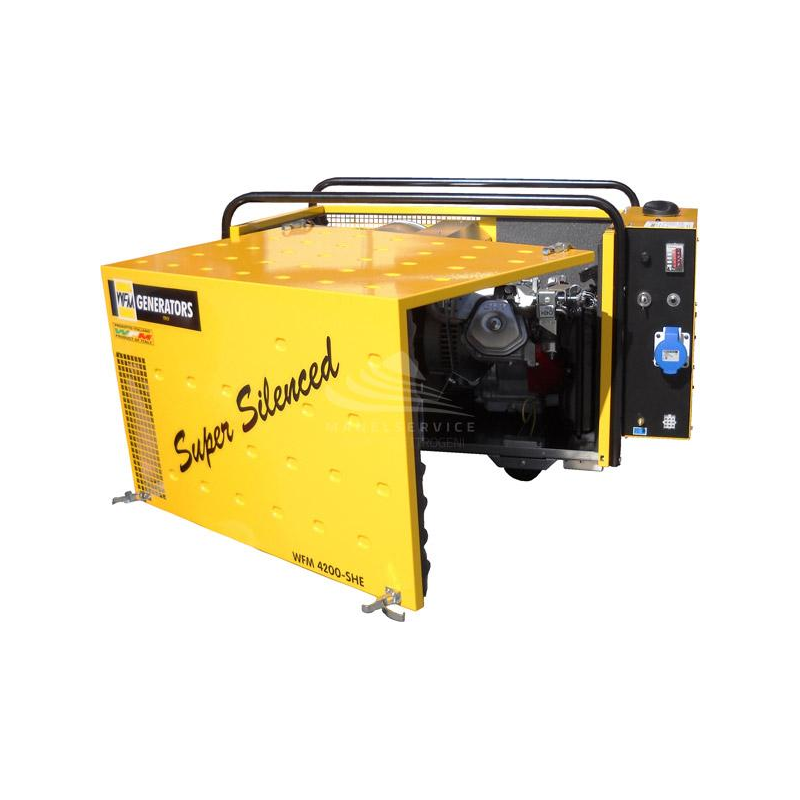

Data sheet

Phase

Single phase

Maximum power single phase (KW)

3.6

Maximum power single phase (KVA)

4.5

Fuel

LPG

Frequency (Hz)

50

Voltage (V)

230

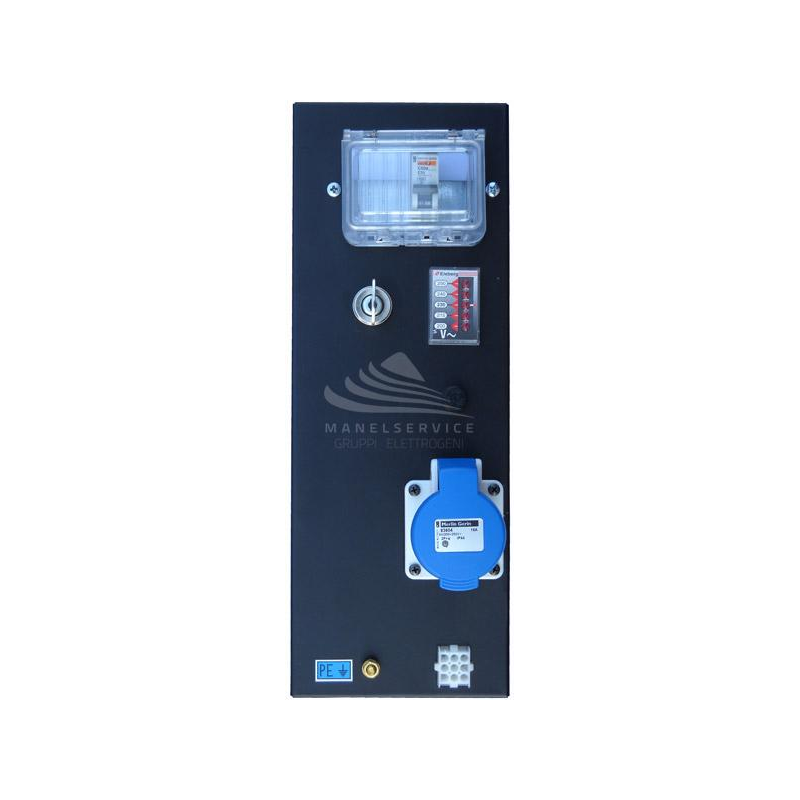

Sockets configuration

1 x 230V 16A 3P CEE

Engine

Honda GX270, OHV

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

270

Number cylinders

1

Oil capacity (L)

1.1

Cooling

Air

Fuel tank capacity (L)

7

Consumption (L/h)

2.4 at 100% of the load

Running time (h)

2.91 at 100% of the load

Acoustic power

88 dB(A)

Acoustic pressure

63 dB(A) at 7 m

Length (mm)

1000

Width (mm)

515

Height (mm)

595

Dry weight (Kg)

106

Silenced

Yes

Super silenced

Yes

ATS Switch device

Optional

Voltage regulator

AVR

Engine manufacturer

Honda
