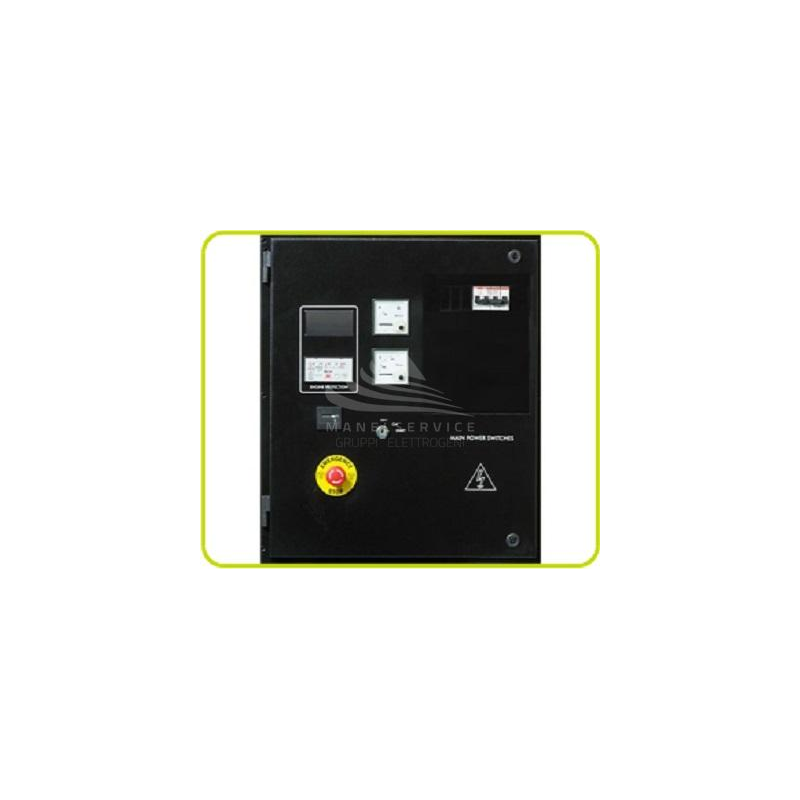

PRAMAC GSL30D APERTO CON QUADRO COMANDO AUTOMATICO (MCP)

Reference SG290TDAT02 /

OUT OF PRODUCTION

Maximum power Three-phase: 25.55 KW
Three-phase continuous use power: 24.31 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Deutz AG F4M2011 STAGE II
Starting: Electric
Consumption: 11.3 Lt/h at 100% of the load
Length: 1800 mm
Width: 750 mm
Height: 1518 mm
Weight: 714 Kg
AVR

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SG290TDAT02 /

Data sheet

Phase: Three phase
Maximum power three phase (KW): 25.55
Continuous power three phase (KW): 24.31
Maximum power three phase (KVA): 31.94
Continuous power three phase (KVA): 30.39
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Emissions Regulations: Stationary Use
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3110
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10
Cooling: Oil
Alternator: Mecc Alte ECP28-VL/4, brushless
Poles: 4
Fuel tank capacity (L): 91
Consumption (L/h): 15.9 at 75% of the load / 11.3 at 100% of the load
Running time (h): 5.7 at 75% of the load / 8 at 100% of the load
Length (mm): 1800
Width (mm): 750
Height (mm): 1518
Dry weight (Kg): 714
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: Optional
Voltage regulator: AVR
Engine manufacturer: Deutz

Specific References

Condition New

Using a single fluid for cooling and lubrication, LPG is one of the best choices for continuous use in harsh environmental conditions such as tropical areas.
Available in open or hooded versions, these generators are highly appreciated in the telecommunications, construction and defense sectors for their durability and reliability. All service points are accessible on one side to make maintenance quick and easy.

● DEUTZ diesel engines
● MECCALTE electronic control alternators
● Ready for BIODIESEL
● Oil cooling with radiator
● Industrial silencer
● Fork base with trolleys
● Motor fluids and charged battery

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
