VINCO AG-HA-6500

VINCO AG-HA-6500
search
  • VINCO AG-HA-6500
  • VINCO AG-HA-6500
  • VINCO AG-HA-6500
  • VINCO AG-HA-6500
60106
New product

OUT OF PRODUCTION

Technical features
Phase
Single phase
Maximum power single phase (KW)
1
Continuous power single phase (KW)
0.8
Maximum power single phase (KVA)
1.25
Continuous power single phase (KVA)
1
Fuel
Gasoline
Frequency (Hz)
50
Voltage (V)
230

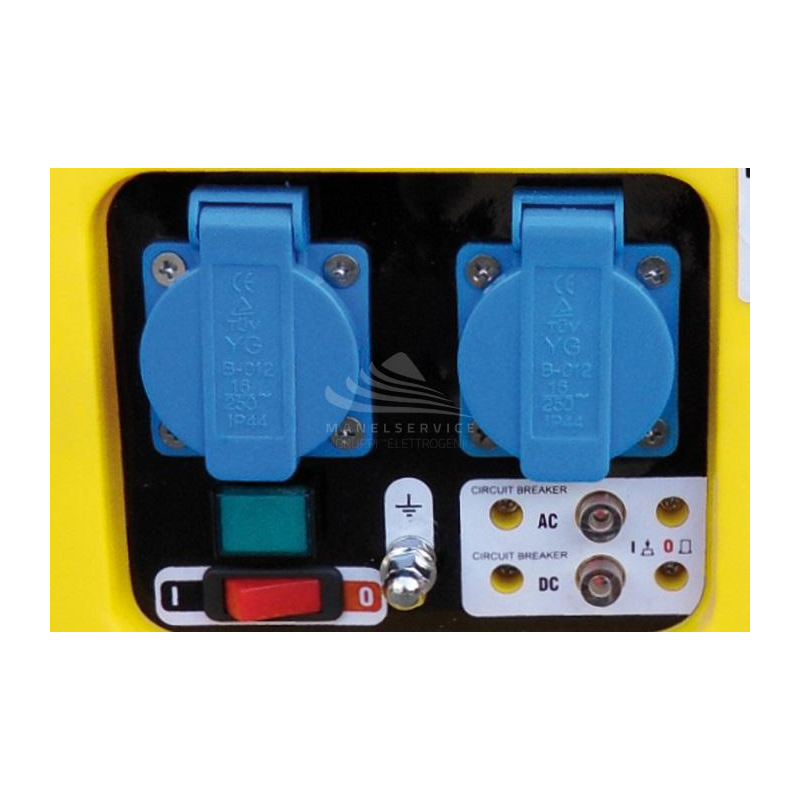

Sockets configuration
2 x 230V
Engine
4 stroke
Engine rpm (rpm)
3000
Starting system
Pull starter
Oil capacity (L)
0.5
Cooling
Air
Fuel tank capacity (L)
6
Consumption (L/h)
1.5
Running time (h)
4
Acoustic pressure
58 dB(A) at 7 m
Length (mm)
490
Width (mm)
310
Height (mm)
450
Dry weight (Kg)
25
Silenced
Yes
Super silenced
No
ATS Switch device
No
Voltage regulator
AVR
Engine manufacturer
Vinco
Details
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

Scheda tecnica SH-1000F

(36.35k)

Technical data SH-1000F

(36.28k)

Données techniques SH-1000F

(35.13k)

Technische daten SH-1000F

(37.56k)
