MOSA GE 65 PSX PERKINS 1103A-33TG2

Name: MOSA GE 65 PSX PERKINS 1103A-33TG2
Brand: MOSA
SKU: CJ5CA051
Price: 19014.94 EUR
Availability: InStock

Reference CJ5CA051

Single-phase continuous use power: 17.6 KW
Maximum power three-phase: 52.8 KW
Three phase continuous use power: 48 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: PERKINS - 1103A-33TG1
Starting: Electric
Consumption: 10.4 Lt/h at 75% of the load
Length: 2490 mm
Width: 1030 mm
Height: 1480 mm
Weight: 1200 Kg
AVR

List price

36,917.20 € tax incl.

30,260.00 € tax excl.

Discounted Price

19,014.94 € tax incl.

15,586.02 € tax excl.

Shipping from 457.50 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CJ5CA051

Data sheet

Phase: Single phase / Three phase
Continuous power single phase (KW): 17.6
Continuous power single phase (KVA): 22
Maximum power three phase (KW): 52.8
Continuous power three phase (KW): 48
Maximum power three phase (KVA): 66
Continuous power three phase (KVA): 60
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 125A 3P+N+T - 1 x 400V 63A 3P+N+T - 1 x 400V 32A 3P+N+T - 1 x 400V 16A 3P+N+T - 2 x 230V 16A 2P+T o 2 x 230V 16A 2P+T SCHUKO
Engine: PERKINS 1103A-33TG2, 4 stroke turbocharged
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 3300
Number cylinders: 3
Cooling: Water
Inyección: Direct
Alternator: Sincrono trifase, autoeccitato, autoregolato, senza spazzole

Specific References

Condition New

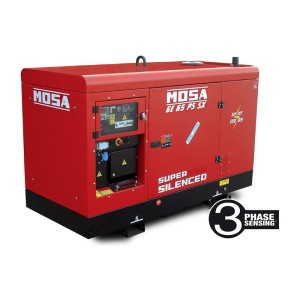

MOSA GE65 PSSX ELECTROGEN GROUP

MOSA GE65 PSSX is a super silenced generator, with a 102 liters capacity tank for 10h/8h of continuous operation. The machine includes a roll bar, lifting hook, fork entry, tank and thanks to the fairing, the noise level is minimal. At only 1200kg, the MOSA GE65 PSSX is compact and easily transportable, using the dedicated slow tow dolly.

The MOSA GE65 PSSX is equipped with a crankcase, which must ensure the containment of liquids in the engine and fuel tank in case of any leakage, to avoid dispersion into the environment.
The AVR ensures stable power to sensitive electronic devices such as computers, power tools, etc. The flush-mounted control panel houses the machine's sockets and controls, including the circuit breaker and motor protection.

The MOSA is designed to be connected to the EAS automatic start panel, thus allowing the machine to be used as an emergency unit in the event of a main power failure from the commercial electrical network.
A TCM remote control is also available, allowing motor start/stop up to 10 meters away from the machine.
Suitable for a wide range of uses such as industrial sites, residential sites, hospital sites, events, large construction sites, noise-sensitive environments and emergency group.

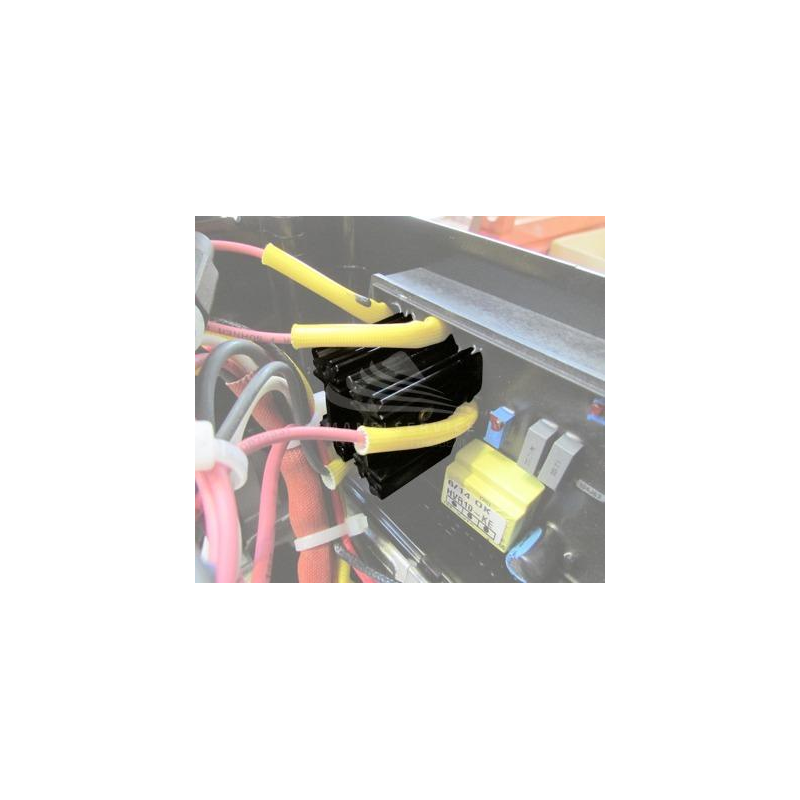

AVR
The automatic voltage regulator AVR is an electronic device that realizes voltage regulation. The voltage error resulting from the comparison between the voltage to be regulated and a stable reference is virtually cancelled by acting on the rotor excitation current.
The regulation characteristics are much better than those of self-regulated alternators.

TECHNICAL FEATURES MOSA GE65 PSSX

Single-phase continuous output: 17.6 KW
Three-phase maximum output: 52.8 KW
Three-phase continuous output: 48 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS - 1103A-33TG1
Start: Electric
Consumption: 10. 4 Lt/h at 75% load
Length: 2490 mm
Width: 1030 mm
Height: 1480 mm
Weight: 1200 Kg
AVR

Discover our full range of land based generators

Images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
