GREEN POWER GP 210 S/G-A Generating Set 210 KVA Automatic Supersilenced

Name: GREEN POWER GP 210 S/G-A Generating Set 210 KVA Automatic Supersilenced
Brand: GREEN POWER
SKU: GP 210 S/G-A MA
Price: 87108 EUR
Availability: InStock

Reference GP 210 S/G-A MA

Fuel: Natural Gas / LPG
Standby power at cosfì 0.8: 210 KVA
Prime power at cosfì 0.8: 198 KVA
Standby power at cosfì 0.8: 174 KW
Prime power at cosfì 0.8: 158 KW
Voltage available to the terminals: 230/400 V
Dimensions (mm): 3800x1100x2100 mm
Weight: 2700 Kg approx.
1500 rpm
Electronic governor: ISO 3046
Alternator: MECC ALTE ECO 38-2 SN

List price

129,503.00 € tax incl.

106,150.00 € tax excl.

Discounted Price

87,108.00 € tax incl.

71,400.00 € tax excl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference GP 210 S/G-A MA

Data sheet

Phase: Three phase
Maximum power three phase (KW): 4.4
Continuous power three phase (KW): 4
Maximum power three phase (KVA): 5.5
Continuous power three phase (KVA): 5
Fuel: LPG / Natural Gas
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Terminals
Engine: KOHLER KDW702
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Automatico
Engine capacity (cm³): 686
Number cylinders: 3
Cooling: Water
Alternator: LINZ E1S13SA/4
Poles: 4
Protection degree: IP23
Motor insulation class: H
Mechanical power (hp): 262
Battery type: Lead acid
Consumption (L/h): 4 al 75% del carico
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 1300
Width (mm): 700
Height (mm): 1000
Dry weight (Kg): 350
Silenced: Yes
Super silenced: Yes
Brushes: No
ATS Switch device: Optional
Type of alternator: Constant Speed
Voltage regulator: AVR
Engine manufacturer: Doosan

Specific References

Condition New

Model: supersilenced 70dB(A)±3 at 7mt
Engine/alternator monoblock unit coupled through flexi-disc couplings, installed on a welded steel baseframe,complete with antivibration mountings.

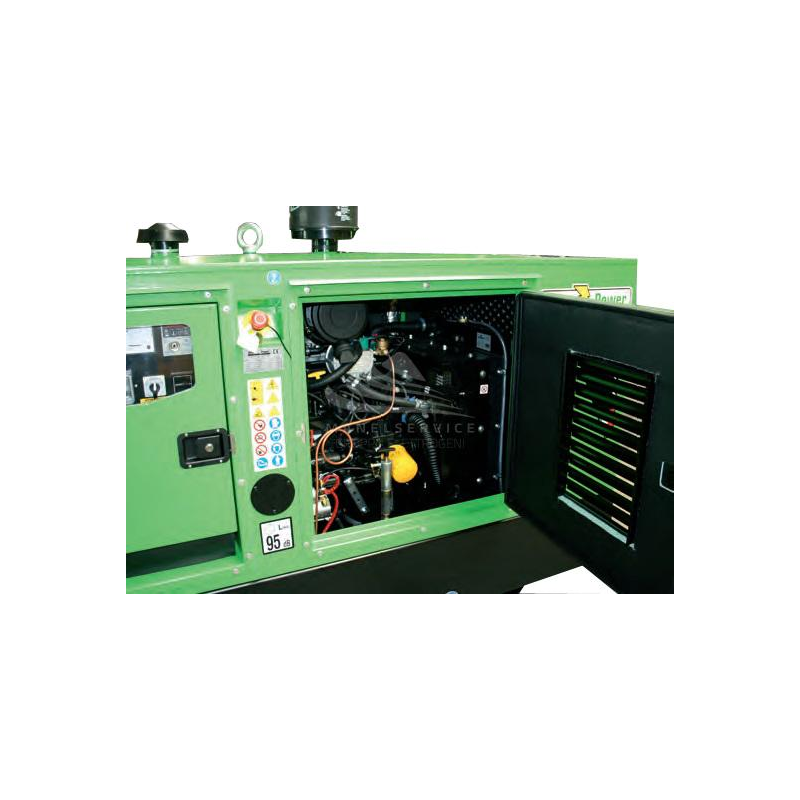

Soundproof enclosure with doors made of 20/10 sheet steel, soundproof material, internal silencer,steel handles and hinges, internal fuel tank cap, lifting hook, powder painting.

Electronic control unit and a programmable microprocessor, LCD display with backlight Off/Auto/test controls, Display of all parameters of the engine and alternator.
Diagnostic information of the gen set, Automatic and manual control of the contactors, Mains voltage (on 3 phases), gen set voltage (on 3 phases), 3 gen set current, mains and gen set frequency, RPM counter, Vdc Battery, D+Voltage, KW-KVA-KWh – cosfi average.25 alarm messages and 9 pre alarm.
Alarm history, Overvoltage / under voltage shutdown, overfrequency shutdown, overload shutdown, Short circuit shutdown.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
