TECNOGEN LW22000TSS/A GENERATOR WITH SEPARATE AUTOMATIC PANEL

Name: TECNOGEN LW22000TSS/A GENERATOR WITH SEPARATE AUTOMATIC PANEL
Brand: TECNOGEN
SKU: LW22000TSS/A
Price: 7700 EUR
Availability: InStock

Maximum three-phase power: 18.7 KW
Maximum three-phase power: 23.4 KVA
Fuel: Diesel
Voltage: 400V
Engine: Lombardini LDW1404FOCS
Starting: Automatic
Length: 1750 mm
Width: 770 mm
Height: 1070 mm
Weight: 460 Kg

Payment methods:

Product: TECNOGEN LW22000TSS/A GENERATOR WITH SEPARATE AUTOMATIC PANEL

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: TECNOGEN LW22000TSS/A GENERATOR WITH SEPARATE AUTOMATIC PANEL

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: TECNOGEN LW22000TSS/A GENERATOR WITH SEPARATE AUTOMATIC PANEL

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference LW22000TSS/A - C

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 6.2
Maximum power single phase (KVA): 7.8
Maximum power three phase (KW): 18.7
Maximum power three phase (KVA): 23.4
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: HONDA GC160
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 1372
Number cylinders: 4
Cooling: Water
Fuel tank capacity (L): 54
Consumption (L/h): 4.7
Running time (h): 11.4
Acoustic power: 94 dB(A)
Length (mm): 1750
Width (mm): 770
Height (mm): 1070
Dry weight (Kg): 460
Silenced: No
Super silenced: Yes
ATS Switch device: Yes
Voltage regulator: Compound / AVR (optional)
Engine manufacturer: Lombardini

Specific References

Condition New

TECNOGEN LW22000TSS/A GENERATOR WITH SEPARATE AUTOMATIC PANEL

Electric start diesel generators, water-cooled, 3000 rpm, available in both single-phase and three-phase versions, with powers from 11.7 to 34.7 kVA MAX. Sturdy and reliable, they are suitable to operate for long periods despite the high rotation rate. The set-up relative to the base-mounted versions includes a built-in fuel tank with a capacity of 52 l, a metal grille placed to protect the radiator and a professional electrical panel, entirely made of ABS with a high degree of protection, equipped with instruments that respect the strictest safety standards. The silenced models are also equipped with a soundproofed canopy in hot-dip galvanized steel. The generators of the W 3000 series are the ideal choice for applications with automatic intervention panel or for use in the mechanical / industrial field.

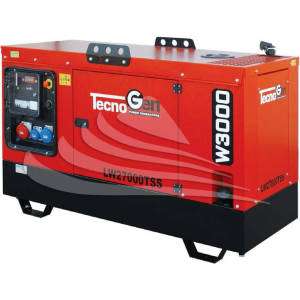

The image is purely indicative.
