HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW

      HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW

      FUORI PRODUZIONE

      Output technology: Condenser
      Type: Single/Three phase
      Maximum output Single Phase (kW): 4
      Maximum output Three Phase (kW): 7
      Rated output Single Phase (kW): 3.6
      Rated output Three Phase (kW): 6.5
      Maximum output Single Phase (kVA): 5.0
      Maximum output Three Phase (kVA): 8.75
      Rated output Single Phase (kVA): 4.5
      Rated output Three Phase (kVA): 8.12
      Fuel : Petrol
      Rated voltage (V): 230/400
      Rated frequency (Hz): 50
      Rated current (A): 16/9.5
      Engine model: Honda GC390T1
      Engine type: 4-stroke, OHV, 1 cylinder
      Starter system: Manual
      Operating time at rated: 2h 10
      Length (mm): 800
      Width (mm): 550
      Height (mm): 540
      Dry weight (kg): 77

      Custom Quote
      Product: HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW

      PERSONAL DATA


      Ask a question
      Product: HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      Offer on letterhead
      Product: HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
      HONDA
      ECT7000K1 /

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      4
      Continuous power single phase (KW)
      3.6
      Maximum power single phase (KVA)
      5
      Continuous power single phase (KVA)
      4.2
      Maximum power three phase (KW)
      7
      Continuous power three phase (KW)
      6.5
      Maximum power three phase (KVA)
      8.75
      Continuous power three phase (KVA)
      8.12
      Fuel
      Gasoline
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      1 x 400V CEE - 2 x 230V SCHUKO
      Engine
      Honda GX390 T1, 4 stroke, OHV
      Engine rpm (rpm)
      3000
      Ignition
      Transistorized
      Starting system
      Manual
      Engine capacity (cm³)
      389
      Number cylinders
      1
      Oil capacity (L)
      1.1
      Cooling
      Air
      Alternator
      Tripolar
      Bore x stroke (mm)
      88 x 64
      Fuel tank capacity (L)
      6.2
      Consumption (L/h)
      2.75
      Running time (h)
      2.25
      Acoustic power
      97 dB(A)
      Acoustic pressure
      86 dB(A)
      Length (mm)
      800
      Width (mm)
      550
      Height (mm)
      540
      Dry weight (Kg)
      77
      Silenced
      No
      Super silenced
      No
      Product type
      Generator
      ATS Switch device
      No
      Voltage regulator
      Compound
      Engine manufacturer
      Honda
      Video
      V0JyzKGrpJE

      Specific References

      EAN13
      3573390003625
      New

      When it comes to a generator on a construction site, you don’t want to cut corners on quality. Always choose a Honda for those jobs that need to be done with minimum fuss. They’re tough and always ready to go.

      Plenty of energy

      Simplicity and cost effectiveness go hand in hand with a condenser/inductive type EC generator. The power produced is perfect for resistive loads like power drills, circular saws and concrete breakers.

      LET’S START WORK

      Just fire it up and forget it.

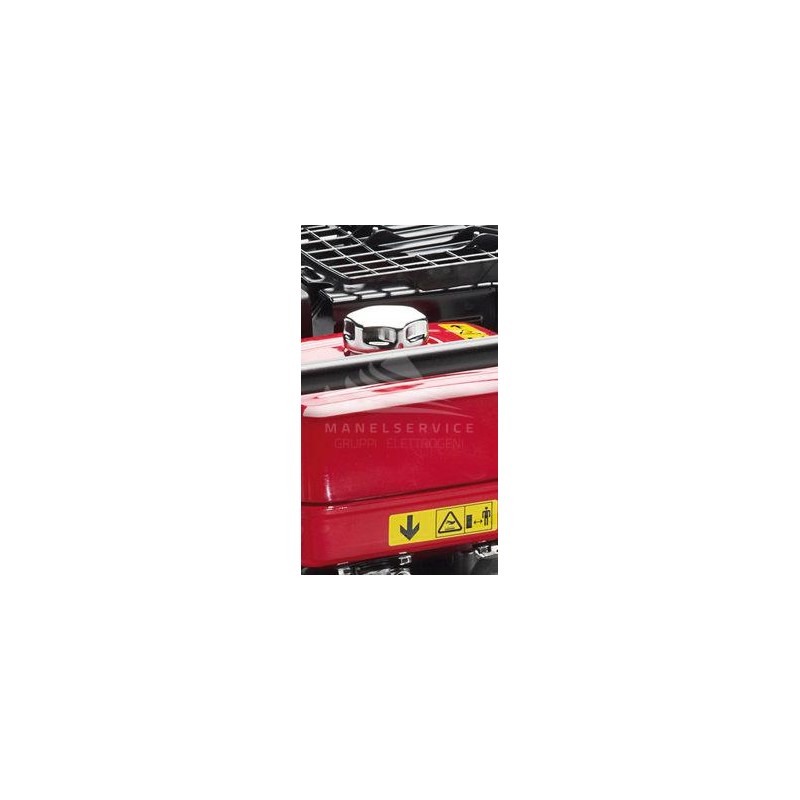

      Quick and easy: the accessible ergonomic fuel filler cap is right where you need it – on top.

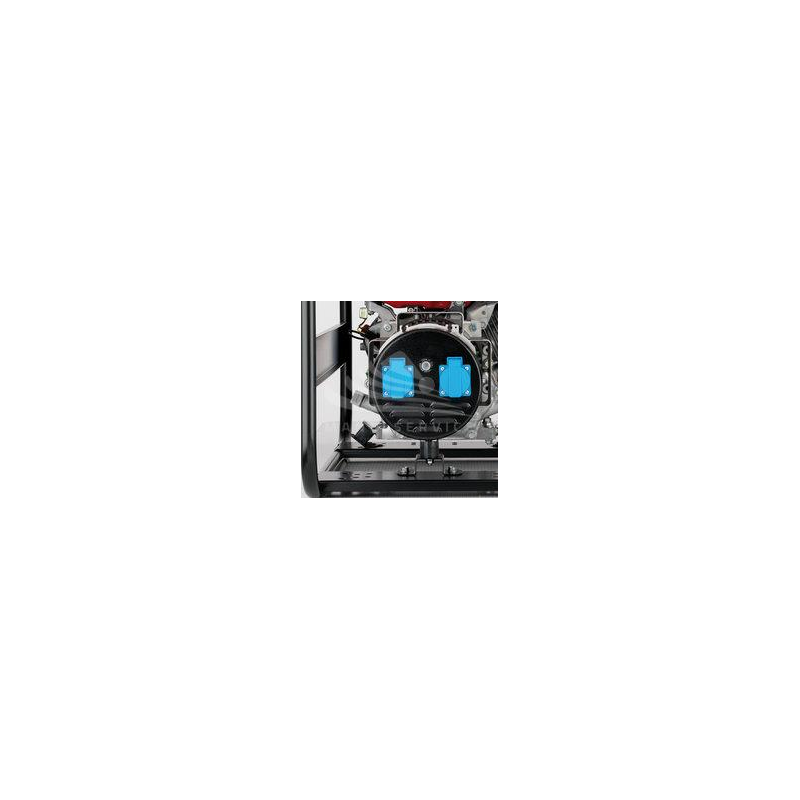

      Practical sockets and controls make starting and running the generator quick and simple. Just start it and let it get on with the job, because the unique Oil Alert™ will automatically switch off the ignition if the oil drops below a safe level. It’s as safe as safe can be.

      Smooth running

      Honda has built an engine mount system into the durable steel frame. These rubber shock absorbers are positioned either side of the engine at 45˚ and significantly reduce the engine vibration of an already quiet machine.

      The photoes are for illustrative purpose only.
