TECNOGEN LW6-4

LW6-4
      TECNOGEN LW6-4
      TECNOGEN LW6-4

      Maximum three-phase power: 4.2 KW
      Maximum three-phase power: 5.4 KV
      Fuel: Diesel
      Voltage: 400V
      Engine: Lombardini LDW702FOCS
      Starter: Electric
      Length: 1160 mm
      Width: 730 mm
      Height: 1000 mm
      Weight: 210 Kg

      List price
      10,467.60 € tax incl.
      8,580.00 € tax excl.
      Discounted Price
      5,721.80 € tax incl.
      4,690.00 € tax excl.
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      TECNOGEN
      LW6-4

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power three phase (KW)
      4.3
      Continuous power three phase (KW)
      3.6
      Maximum power three phase (KVA)
      5.4
      Continuous power three phase (KVA)
      4.5
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine
      Lombardini LDW702FOCS
      Engine rpm (rpm)
      1500
      Speed governor
      Mechanical
      Starting system
      Electric
      Engine capacity (cm³)
      686
      Number cylinders
      2
      Cooling
      Water
      Fuel tank capacity (L)
      54
      Consumption (L/h)
      1.1
      Running time (h)
      49
      Length (mm)
      1160
      Width (mm)
      730
      Height (mm)
      1000
      Dry weight (Kg)
      210
      Silenced
      No
      Super silenced
      No
      ATS Switch device
      Optional
      Voltage regulator
      No
      Engine manufacturer
      Lombardini

      Specific References

      New

      The TENAX series includes diesel generator sets, 1500 rpm,

      water-cooled or air-cooled, with power ratings from 5.5 to 2255 kVA max,

      supplying three-phase 400/230 V voltage.

      Available in both open base and super-silenced versions.

      They are equipped with Perkins, John Deere, Iveco Aifo or Lombard industrial engines,

      They are fitted with Perkins, John Deere, Iveco Aifo or Lombardini industrial engines and alternators from world leading brands,

      such as Leroy Somer, Stamford, Mecc Alte or Marelli.

      The enclosures, designed to guarantee an excellent level of soundproofing and optimal

      level of soundproofing and optimum engine cooling.

      galvanised steel and then painted with polyester powders.

      painted with polyester powders, making them practically unassailable by atmospheric agents.

      by atmospheric agents. Due to their characteristics, these machines are

      particularly suitable for continuous use in the industrial sector and, in the

      industrial environment and, in the super-silenced versions, for applications with automatic

      applications in the civil sector. They are also

      available on request with different engines, including Cummins, Volvo, Deutz and

      including Cummins, Volvo, Deutz and Mitsubishi.

      The image is purely indicative.

      Translated with www.DeepL.com/Translator (free version)

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
      GASOLINE TANK 20 LT | Manel Service
          ACCESSORIES / SPARE PARTS
          Metal approved 20 lt gasoline jerry can
          TANICA BENZINA 20 LT
          Discounted price
          tax incl.
          78.00 € 56.12 €
          46.00 € tax excl.
          KIT MESSA A TERRA 10 METRI
              ACCESSORIES / SPARE PARTS
              GROUNDING KIT 10 METRES
              KIT MESSA A TERRA 10 MT
              Discounted price
              tax incl.
              109.80 €
              90.00 € tax excl.
              KIT MESSA A TERRA 25 METRI
                  ACCESSORIES / SPARE PARTS
                  GROUNDING KIT 25 METRES
                  KIT MESSA A TERRA 25 MT
                  Discounted price
                  tax incl.
                  125.66 €
                  103.00 € tax excl.
                  KIT MESSA A TERRA 35 METRI
                      ACCESSORIES / SPARE PARTS
                      GROUNDING KIT 35 METRES
                      KIT MESSA A TERRA 35 MT
                      Discounted price
                      tax incl.
                      130.54 €
                      107.00 € tax excl.
                      TECNOGEN CARRELLO A02
                          FOR GENERATING SETS
                          F02
                          Discounted price
                          tax incl.
                          560.00 € 374.54 €
                          307.00 € tax excl.
                          TECNOGEN CARRELLO A02
                              FOR GENERATING SETS
                              F2
                              Discounted price
                              tax incl.
                              1,420.00 € 947.94 €
                              777.00 € tax excl.
                              TECNOGEN CARRELLO A02
                                  Discounted price
                                  tax incl.
                                  1,170.00 € 707.60 €
                                  580.00 € tax excl.
                                  TECNOGEN CARRELLO A02
                                      FOR GENERATING SETS
                                      G5
                                      Discounted price
                                      tax incl.
                                      470.00 € 353.80 €
                                      290.00 € tax excl.
                                      TECNOGEN CARRELLO A02
                                          FOR GENERATING SETS
                                          A072
                                          Discounted price
                                          tax incl.
                                          780.00 € 695.40 €
                                          570.00 € tax excl.

                                          4 other products in the same category:

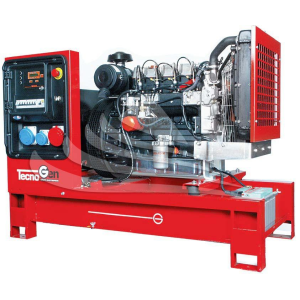

                                          TECNOGEN H2700
