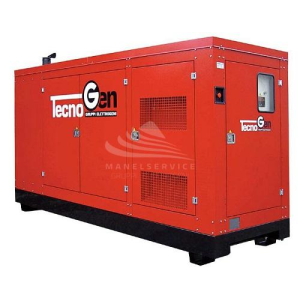

TECNOGEN JD35TSS GENERATOR SET

Name: TECNOGEN JD35TSS GENERATOR SET
Brand: TECNOGEN
SKU: JD35TSS
Price: 10462.72 EUR
Availability: InStock

Reference JD35TSS

Maximum three-phase power: 27.2 KW
Maximum three-phase power: 34 KVA
Fuel: Diesel
Voltage: 400V
Engine: John Deere 3029DF128
Starter: Electric
Length: 2050 mm
Width: 1050 mm
Height: 1300 mm

List price

19,141.80 € tax incl.

15,690.00 € tax excl.

Discounted Price

10,462.72 € tax incl.

8,576.00 € tax excl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference JD35TSS

Data sheet

Phase: Three phase
Maximum power three phase (KW): 27.2
Maximum power three phase (KVA): 34
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: HONDA GC160
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 2900
Number cylinders: 3
Cooling: Water
Fuel tank capacity (L): 73
Consumption (L/h): 4.6
Running time (h): 15.8
Acoustic pressure: 67 dB(A) at 7 m
Length (mm): 2050
Width (mm): 1050
Height (mm): 1300
Dry weight (Kg): 960
Silenced: No
Super silenced: Yes
ATS Switch device: Optional
Voltage regulator: No
Engine manufacturer: John Deere

Specific References

Condition New

TECNOGEN JD35TSS GENERATOR SET

TECNOGEN JD35TSS Generator set is a three-phase diesel generator set with electric start. It has a maximum power rating of 27.2 kW in three-phase or 34 kVA. The engine is a 3.5-liter John Deere 3029DF128. The genset has an output voltage of 400 V. The dimensions are 2050 x 1050 x 1300 mm and the weight is 960 kg.

The TECNOGEN JD35TSS Generator set is a suitable product for a wide range of applications, including:

Power supply in case of power failure
Powering machinery and industrial equipment
Lighting of events and demonstrations
Powering emergency systems

TECHNICAL SPECIFICATIONS TECNOGEN GENERATOR SET JD35TSS:

Maximum three-phase power: 27.2 KW
Maximum three-phase power: 34 KVA
Fuel: Diesel
Voltage: 400V
Engine: John Deere 3029DF128
Starter: Electric
Length: 2050 mm
Width: 1050 mm
Height: 1300 mm
Weight: 960 kg

The TECNOGEN JD35TSS Generator set is equipped with robust and reliable diesel fuel, which ensures continuous and trouble-free operation. It is also equipped with an electric start system, which facilitates starting the genset.

The TECNOGEN JD35TSS is a high-quality product, made with high-quality materials and components. The TECNOGEN JD35TSS is also equipped with a number of features that ensure its safety and reliability, including:

Overload protection

Short-circuit protection

Reverse polarity protection

Protection from lack of oil

The TECNOGEN Generator Set

Fuel: The diesel engine is suitable for use in cold weather conditions, such as those typical of Turin. Diesel has a lower freezing point than fuel oil, so the engine is less likely to stop in cold temperatures.

Voltage: An output voltage of 400 V is the standard voltage for most domestic and commercial consumers in Italy.

Starting: The electric start makes it easy to start the genset, even in cold weather.

Size and weight: The genset's size and weight make it easy to transport and store.

If you are looking for a product similar to TECNOGEN JD35TSS or with similar features click HERE.

Images for illustration only.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
