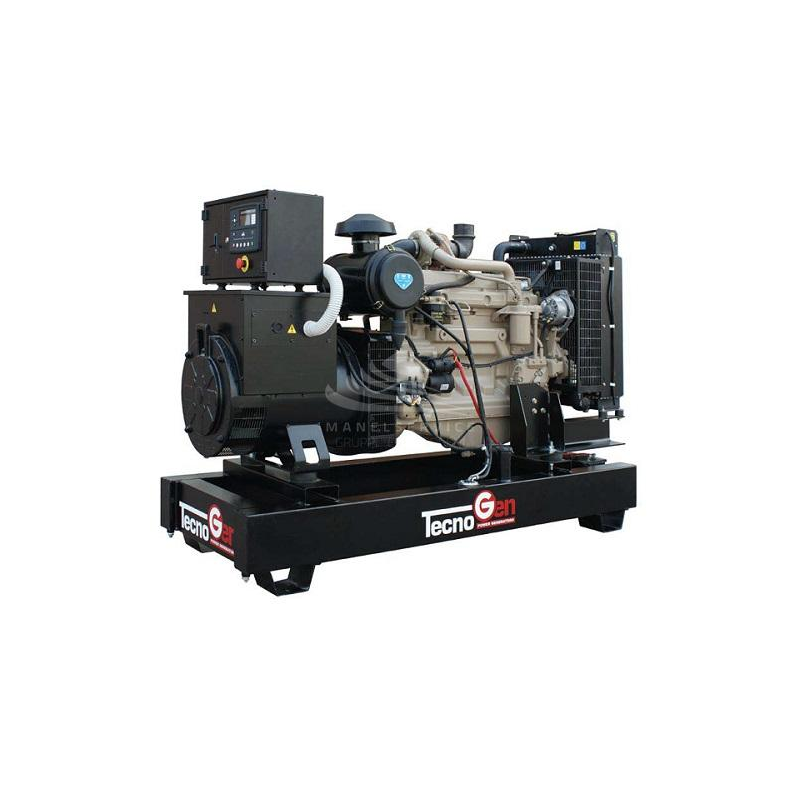

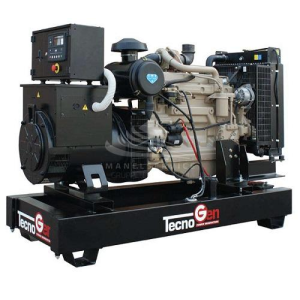

TECNOGEN JD35TK Open Generator Set 32kVA

Name: TECNOGEN JD35TK Open Generator Set 32kVA
Brand: TECNOGEN
SKU: JD35T
Price: 8455.82 EUR
Availability: InStock

Reference JD35T

Maximum three-phase power: 28 kVA
Continuous three-phase power: 32 kVA
Fuel: Diesel
Voltage: 400V
Frequency: 50Hz
Engine: John Deere 3029DFU29
Engine speed: 1500 rpm
Starting system: Electric
Length: 1700 mm
Width: 950 mm
Height: 1400 mm
Weight: 670 Kg

List price

15,469.60 € tax incl.

12,680.00 € tax excl.

Discounted Price

8,455.82 € tax incl.

6,931.00 € tax excl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference JD35T

Data sheet

Phase: Three phase
Maximum power three phase (KW): 28
Continuous power three phase (KVA): 32
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 2900
Number cylinders: 3
Cooling: Water
Fuel tank capacity (L): 120
Consumption (L/h): 4.6
Running time (h): 10.4
Length (mm): 1700
Width (mm): 950
Height (mm): 1400
Dry weight (Kg): 670
Silenced: No
Super silenced: No
ATS Switch device: Optional
Voltage regulator: No
Engine manufacturer: John Deere

Specific References

Condition New

TECNOGEN JD35TK OPEN GENERATOR 32kVA

The TENAX series includes diesel generators, 1500 rpm, water or air cooled, with power outputs ranging from 5.5 to 2255 kVA max,
delivering three-phase voltage 400/230 V. Available both in open skid version and super silent version, they are equipped with industrial engines Perkins, John Deere,
Iveco Aifo or Lombardini and alternators from leading global brands such as Leroy Somer, Stamford, Mecc Alte or Marelli.
The canopies, designed to ensure excellent soundproofing levels and optimal engine cooling, are
entirely built in hot-dip galvanized steel and subsequently painted with polyester powders, making them practically resistant
to atmospheric agents. Thanks to their features, these machines are particularly suitable for continuous use in industrial applications and, in the super silent versions, for applications with automatic transfer switch in the civil sector. They are also
available, on request, with different engine options, including Cummins, Volvo, Deutz and Mitsubishi.

Technical specifications TECNOGEN JD35TK Generator:

Are you looking for a generator similar to the JD35TK but with different features? CLICK HERE and discover our full range.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
