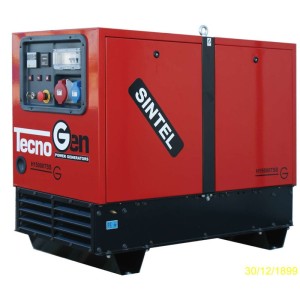

TECNOGEN H2700
      TECNOGEN H2700

      TECNOGEN H2700

      Maximum single-phase power: 3 KW
      Maximum three-phase power: 10. 4 KW
      Fuel: Gasoline
      Voltage: 230 V / 400 V
      Frequency: 50 Hz
      Motor: Honda GX690
      Start: Electric
      Length: 1070 mm
      Width: 560 mm
      Height: 930 mm
      Weight: 210 Kg

      Custom Quote
      Product: TECNOGEN H2700

      PERSONAL DATA


      Ask a question
      Product: TECNOGEN H2700
      Offer on letterhead
      Product: TECNOGEN H2700
      TECNOGEN
      H 15000 TSS - C

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      3
      Maximum power single phase (KVA)
      3.8
      Maximum power three phase (KW)
      10.4
      Maximum power three phase (KVA)
      13
      Fuel
      Gasoline
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Engine capacity (cm³)
      688
      Number cylinders
      2
      Cooling
      Air
      Fuel tank capacity (L)
      20
      Consumption (L/h)
      7
      Running time (h)
      2.8
      Acoustic power
      88 dB(A)
      Length (mm)
      1070
      Width (mm)
      560
      Height (mm)
      930
      Dry weight (Kg)
      210
      Silenced
      No
      Super silenced
      Yes
      ATS Switch device
      Optional
      Voltage regulator
      Compound / AVR (optional)
      Engine manufacturer
      Honda

      Specific References

      New

      TECNOGEN H15000TSS 10,4 KW generating set

      Generator set Three-phase TECNOGEN H15000TSS of 10,4 KW and single-phase of 3 KW with Honda engine of 3000 rpm powered by gasoline. The TECNOGEN H15000TSS generating set is easy to use and has small dimensions, easy to handle and easy to maintain. The TECNOGEN H15000TSS generating set is equipped with electric start. This genset is perfect for both hobby and professional use, thanks to the reliable Honda gasoline-powered engine and all the high quality components of which it is composed.

      Why buy a genset H15000TSS?
      First of all, they solve problems of lack of electricity during blackouts in various environments, from homes to businesses. The TECNOGEN H15000TSS generator set is also used to provide electricity at construction sites and for hobby use. The professional generators are light machines, easy to transport, compact and robust, simple to use and with low management costs. They present, moreover, an excellent quality/price ratio.

      On the TECNOGEN H15000TSS generating set it is possible to install lifting hooks, very convenient to move the power generator with an overhead crane or a small crane.

      The following are the main features:
      Maximum single-phase power: 3 KW
      Maximum three-phase power: 10. 4 KW
      Fuel: Gasoline
      Voltage: 230 V / 400 V
      Frequency: 50 Hz
      Motor: Honda GX690
      Start: Electric
      Length: 1070 mm
      Width: 560 mm
      Height: 930 mm
      Weight: 210 Kg

      All TECNOGEN range
      TENOGEN generator sets are available in both single-phase and three-phase versions, with powers from 2.3 to 21 KVA MAX, equipped with gasoline or diesel engines, air-cooled, 3000 rpm, electric start and/or manual start with recoil starter. Compact, simplified and economical, they boast an excellent price/performance/size/weight ratio. Easily transportable thanks to the reduced dimensions due to an essential equipment, they are suitable for all those who need an economic source of energy, however, assembled with first-class components that ensure absolute reliability. TECNOGEN gasoline versions of COMPACT line, thanks to the Honda engines of the latest generation, fall within the parameters of the noise directive 2000/14/EC.

      Are you looking for a different model of current generator or generator set? Visit the section dedicated to land based generators.

      Images and technical data are not binding.
