MASE MPL 33 I-SY THREE-PHASE GENERATOR 33KVA AVR

Name: MASE MPL 33 I-SY THREE-PHASE GENERATOR 33KVA AVR
Brand: MASE
SKU: 008756
Price: 16927.5 EUR
Availability: InStock

Reference 008756

Phase Type: Single/Phase/Three-phase
Single-phase continuous use power: 10 KVA / 8 KW
Single-phase maximum power: 11 KVA / 8.8 KW
Three-phase continuous use power: 30 KVA / 24 KW
Three-phase maximum power: 33 KVA / 26.4 KW
Motor: Yanmar 4TNV98
Motor speed: 1500 rpm
Emissions regulation: Stage III
Starting: Electric
Fuel: Diesel
Voltage: 230 / 400 V
Frequency: 50 Hz
Panel sockets:1 x 400V 63A / 1 x 400V 32A / 1 x 230V - 32A / 1 x 230V - 16A
Voltage regulator: AVR
Tank capacity: 40 l
Autonomy at 75% load: 6. 25 h
Consumption at 75% load: 6.4 Lt/h
Acoustic power: 96 dB(A) (71 dB(A) @ 7m)
Length: 1900 mm
Width: 910 mm
Height: 1164 mm
Dry weight:690 Kg

List price

22,570.00 € tax incl.

18,500.00 € tax excl.

Discounted Price

16,927.50 € tax incl.

13,875.00 € tax excl.

Shipping from 359.90 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 008756

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 8.8
Continuous power single phase (KW): 8
Maximum power single phase (KVA): 11
Continuous power single phase (KVA): 10
Maximum power three phase (KW): 26.4
Continuous power three phase (KW): 24
Maximum power three phase (KVA): 33
Continuous power three phase (KVA): 30
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 63A / 1 x 400V 32A / 1 x 230V - 32A / 1 x 230V - 16A
Engine: Yanmar 4TNV98
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 3319
Number cylinders: 4
Cooling: Water
Alternator: Synchronous
Fuel tank capacity (L): 40
Consumption (L/h): 6.4 at 75% load
Running time (h): 6.25 at 75% of the load
Acoustic power: 96 dB(A)
Acoustic pressure: 71 dB(A) at 7 m
Length (mm): 1900
Width (mm): 910
Height (mm): 1164
Dry weight (Kg): 690
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional
Voltage regulator: AVR
Engine manufacturer: Yanmar

Specific References

Condition New

MASE MPL 33 I-SY THREE-PHASE GENERATOR 33KVA AVR

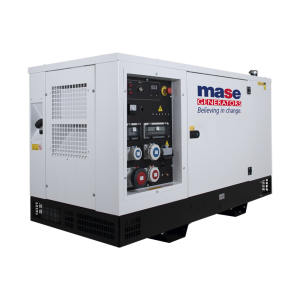

The MASE MPL 33 I-SY three-phase generator is equipped with a Yanmar 4TNV98 diesel engine, capable of delivering a maximum power of 33 KVA, complete with AVR voltage regulator.

The MASE MPL 33 I-SY generator consists of a synchronous alternator with AVR voltage regulator, which ensures a stable voltage of ± 1%.

The MASE MPL 33 I-SY is equipped with a Electrical start with a 12 V battery and low fuel consumption, consuming only 6.4 liters per hour at 75% load.

This generator set is equipped with a soundproof cabin that allows it to be super quiet, with a sound pressure output of only 71 dB(A) @ 7 m.

ATS AUTOMATIC STARTING FRAME

The MASE MPL 33 I-SY is designed for the use of the ATS Authomatic Transfer Switchl. Thanks to it, you will no longer have to worry about blackouts because if the mains fails, this panel is able to automatically start the MASE MPL 33 I-SY generator and allow you to continue your activity without losing your work data.

Voltage Regulator AVR

The MASE MPL 33 I-SY is equipped with a voltage regulator. The AVR is a device that allows you to keep the output more constant and less dependent on the load. Thanks to this board there are fewer drops or spikes in current and this makes it safer to use the various devices connected, improving performance and durability.

TECHNICAL FEATURES MASE MPL 33 I-SY

Phase Type: SinglePhase/ThreePhase
Continuous Use SinglePhase Power: 10 KVA / 8 KW
Maximum SinglePhase Power: 11 KVA / 8.8 KW
Continuous Use ThreePhase Power: 30 KVA / 24 KW
Maximum ThreePhase Power: 33 KVA / 26.4 KW
Motor: Yanmar 4TNV98
Motor Speed: 1500 rpm
Emission Standard: Stage III
Start: Electric
Fuel: Diesel
Voltage: 230 / 400 V
Frequency: 50 Hz
Socket panel: 1 x 400V 63A / 1 x 400V 32A / 1 x 230V 16A
Voltage regulator: AVR
Tank capacity: 40 l
Runtime at 75% load: 6. 25 h
Consumption at 75% load: 6.4 Lt/h
Acoustic power: 96 dB(A) (71 dB(A) @ 7m)
Length: 1900 mm
Width: 910 mm
Height: 1164 mm
Dry weight:690 kg

Are you looking for a generator with different technical features? Here you can find the dedicated area of the generator MASE or other specialized brands.

The image is purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
