GENSET MG 12001 IHPAA GENERATOR SINGLE PHASE 11KVA AVR STAGEV

GENSET MG 12001 IHPAA is a singlephase generator equipped with a Honda GX 630 OHV (STAGE V) engine powered by Gasoline, capable of delivering a maximum power of 11KVA.

The GENSET MG 12001 IHPAA has also a low fuel consumption: only 5.5 Lt/h at 75% of the load. The GENSET MG 12001 IHPAA thanks to the high quality and efficiency of its components, is ideal for various types of work: from small hobby work to large construction sites.

The generator is easy to install and operate, as well as easy to start and stop thanks to the clear and intuitive controls. GENSET MG 12001 IHPAA is equipped with a Honda GX 630 OHV STAGE V gasoline engine. They are very reliable engines that guarantee efficient combustion and low fuel consumption, they are also equipped with a protection system that causes the engine to stop if the oil level is too low.

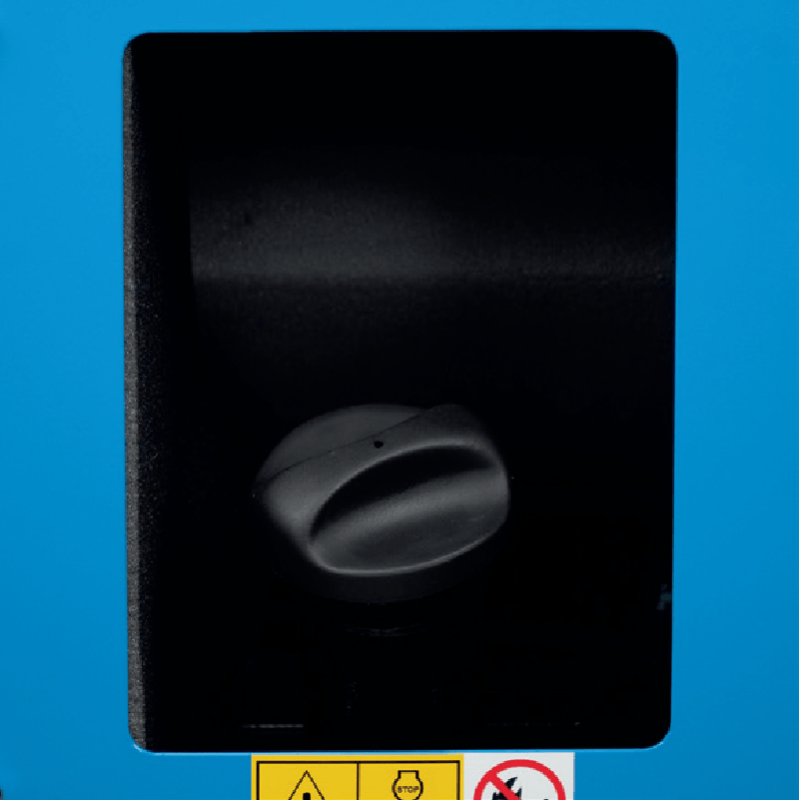

GENSET MG 12001 IHPAA are equipped with a 29-liter tank with a large cap that is easy to unscrew even with work gloves.

GENSET MG 12001 IHPAA has an all-steel structure and a large metal tank. The generator guarantees an efficient and silent operation thanks to the Honda GX 630 OHV which allows to deliver a maximum power of 11 KVA.

The generator set comes with:
- Automatic stop for low oil level
- 12 V battery

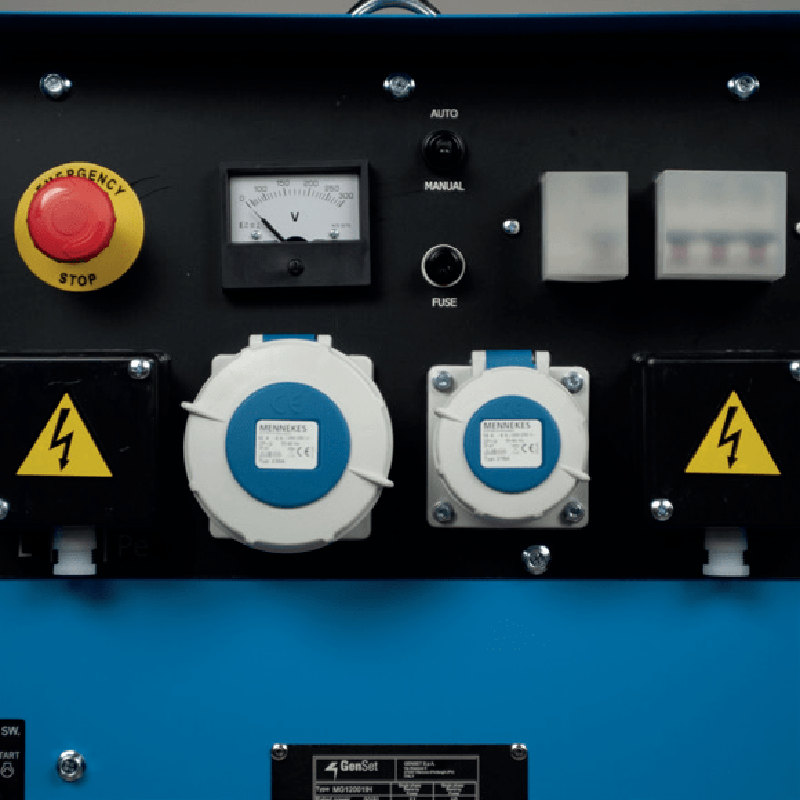

- 1 single-phase socket CEE 16 A, 230 V - 50 Hz
- 1 singlephase socket CEE 32 A, 230 V - 50 Hz
- Power output protections
- Differential switch
- Voltmeter
- Hour meter

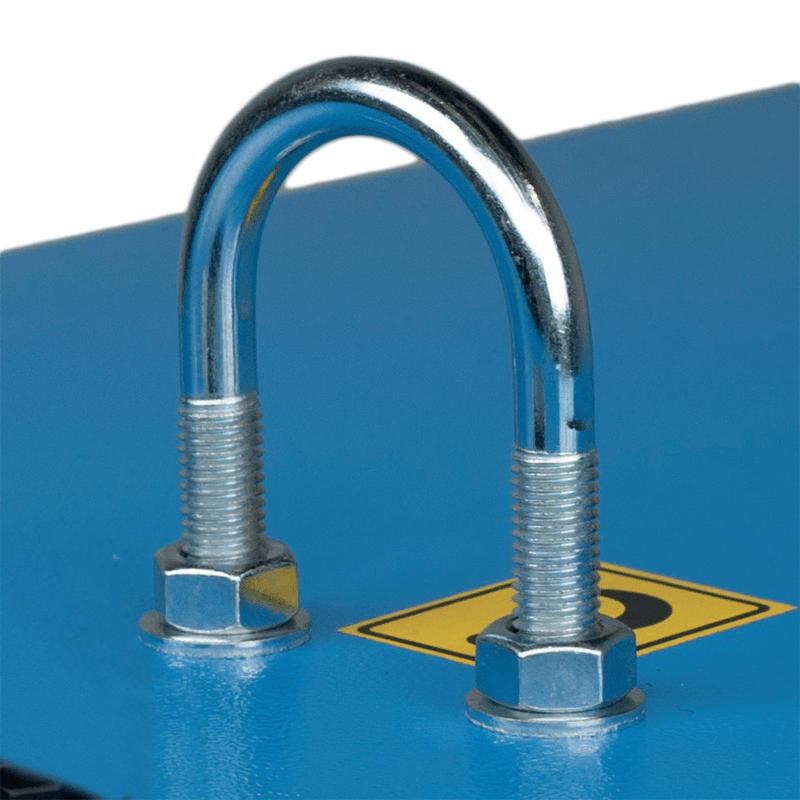

- Central lifting hook

TECHNICAL FEATURES GENSET MG 12001 IHPAA

Maximum singlephase output: 11 KVA
Singlephase maximum output: 8.8 KW
Singlephase continuous use output: 10 KVA
Singlephase continuous use output: 8 KW
Fuel: Gasoline
Voltage: 230 V
Frequency: 50 Hz
Engine: Honda GX 630 OHV (STAGE V)
Starter: Electric
Tank capacity: 29l
Consumption: 5.5 Lt/h
Acoustic power: 90 dB (A) (65 dB at 7 mt)
Protection class: IP 23
Length: 904 mm
Width: 507 mm
Height: 823 mm
Weight: 148 Kg
Super silenced
AVR

Looking for a power generator with different characteristics? Here you can find the full range of products from GENSET or other brands specializing in the field

Images and technical data are not binding and may be subject to revision by the supplier.
