WFM 7500-TSHE AVR

Name: WFM 7500-TSHE AVR
Brand: WFM
SKU: 04060
Price: 3023.16 EUR
Availability: InStock

Reference 04060

Maximum single-phase power: 1.8 KW
Maximum single-phase power: 2.3 KVA
Maximum three-phase power: 5.6 KW
Maximum three-phase power: 7 KVA
Fuel: Petrol
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Honda GX390
Start-up: Electric
Consumption: 3.1 litres at 100% load
Length: 1100 mm
Width: 540 mm
Height: 650 mm
Weight: 140 kg

Prezzo

2,478.00 € tax excl.

3,023.16 € tax incl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 04060

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 1.8
Maximum power single phase (KVA): 2.3
Maximum power three phase (KW): 5.6
Maximum power three phase (KVA): 7
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400

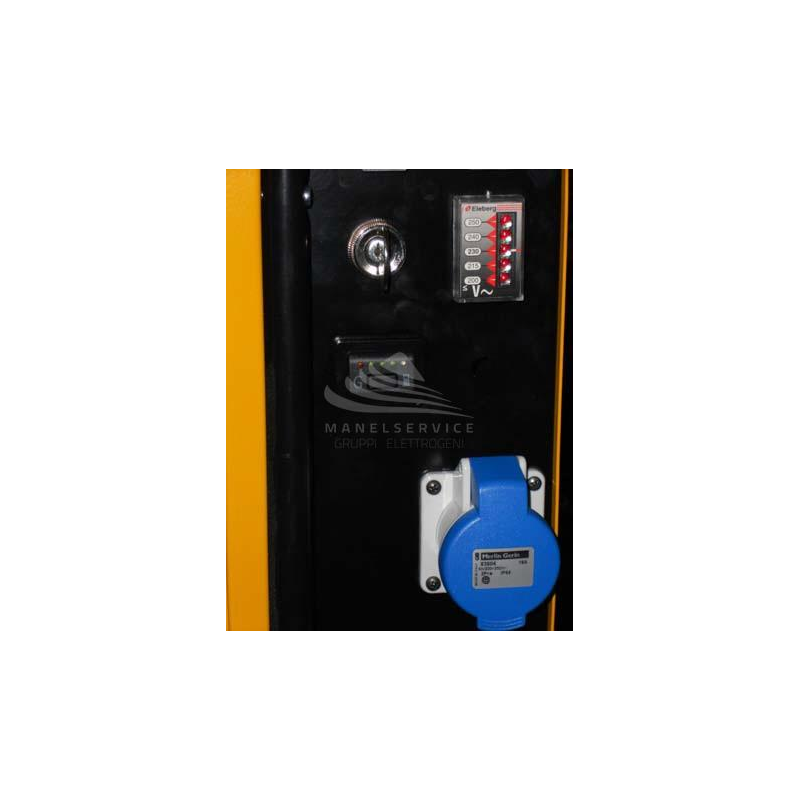

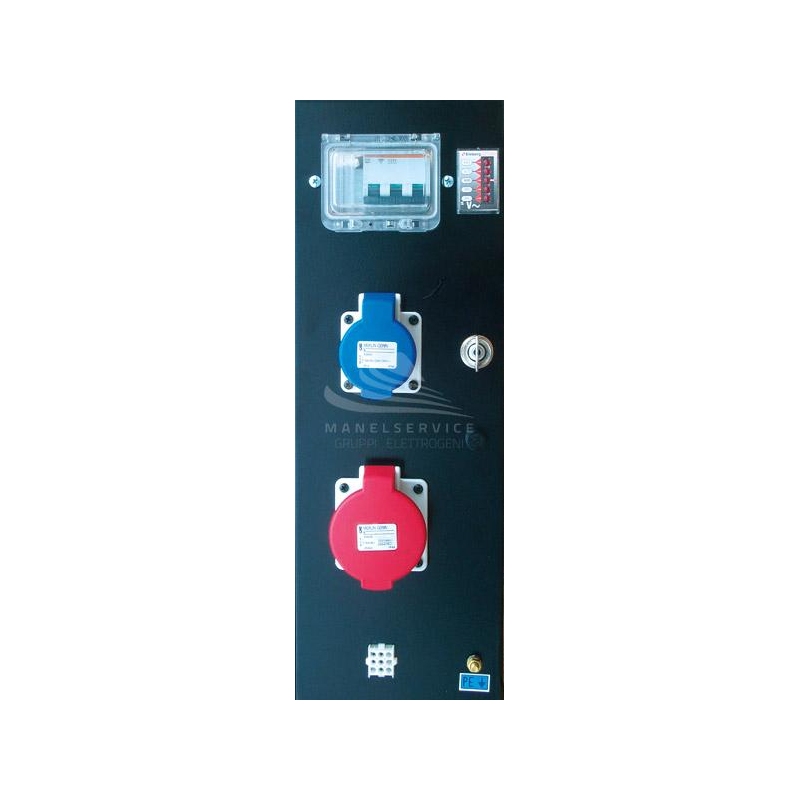

Sockets configuration: 1 CEE 5P 400V 16A + 1 CEE 3P 230V 16A
Engine: Honda GX390, OHV
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 389
Number cylinders: 1
Oil capacity (L): 1.1
Cooling: Air
Fuel tank capacity (L): 15
Consumption (L/h): 3.1 at 100% of the load
Running time (h): 4.83 at 100% of the load
Acoustic power: 88 dB(A)
Acoustic pressure: 63 dB(A) at 7 m
Length (mm): 1100
Width (mm): 540
Height (mm): 650
Dry weight (Kg): 140
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional
Voltage regulator: AVR
Engine manufacturer: Honda

Specific References

Condition New

GENERATORS WITH AVR

Generator sets with Honda petrol or Lombardini diesel engines, in open version on base or in soundproofed frame with power ratings from 4.5 to 12 KVA, single-phase or single-phase/three-phase, 3000 rpm, air-cooled with recoil starter or key starter, including battery and electrical panel with sockets and standard protection.
Indispensable for electronic users as they are all equipped with an output voltage stabiliser of less than 1%.
Compliance with Directive 2000/14/EC of 01/01/2006 concerning noise levels based on the model.

Recommended for domestic and professional users who connect highly sensitive electronic equipment:
- Inverter welders
- Power tools with circuit boards
- Electronics, accumulators
- Plasma TVs, computers
- Latest generation boilers
- Telephone switchboards
- Burglar alarms
- Uninterruptible power supplies
- HI-FI systems

Main features:

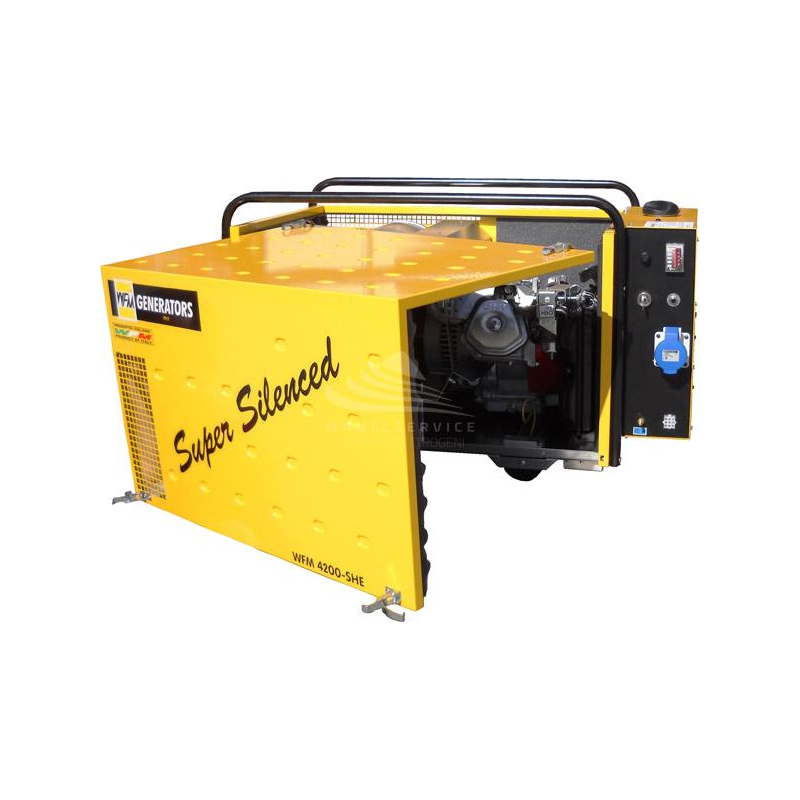

- Open or soundproof protective frame
- Original Honda or Lombardini engine
- Low oil level protection
- Silencer muffler
- Leading Italian brand alternator
- Recoil or electric start with 12V battery supplied with acid
- Full load test with test certificate
- User manual compliant with safety standards

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
