Data sheet

Phase

Single phase / Three phase

Maximum power single phase (KW)

2.9

Maximum power single phase (KVA)

3.6

Maximum power three phase (KW)

8.8

Maximum power three phase (KVA)

11

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

230 / 400

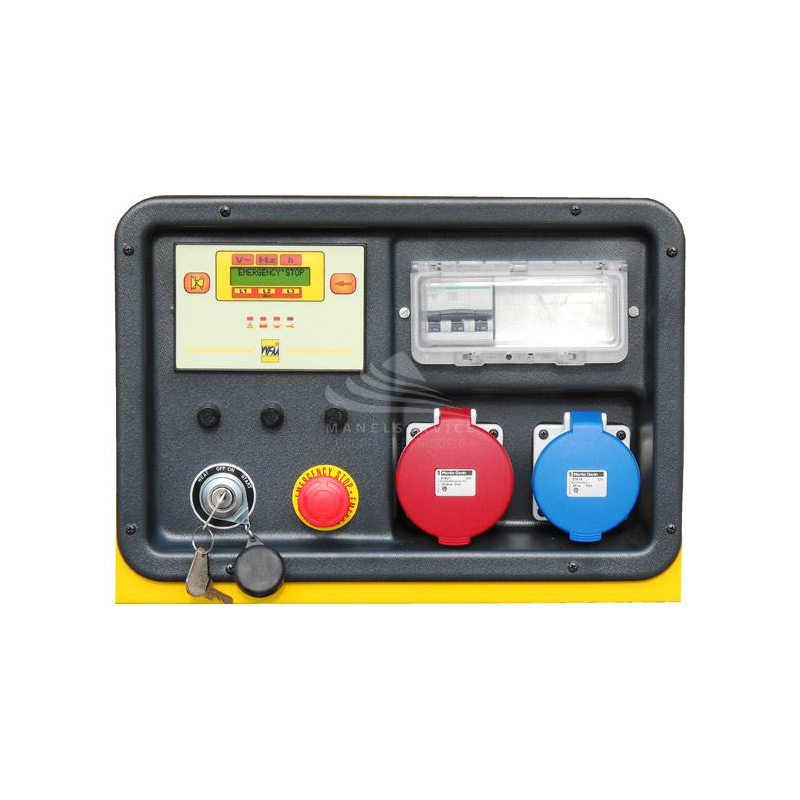

Sockets configuration

1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE

Engine

Perkins 403D-11G

Engine rpm (rpm)

1500

Starting system

Electric

Engine capacity (cm³)

1496

Number cylinders

3

Oil capacity (L)

6

Cooling

Coolant Liquid

Fuel tank capacity (L)

46

Consumption (L/h)

4 at 100% of the load

Running time (h)

7.66 at 100% of the load

Acoustic power

91 dB(A)

Acoustic pressure

66 dB(A) at 7 m

Length (mm)

1480

Width (mm)

680

Height (mm)

1140

Dry weight (Kg)

500

Silenced

Yes

Super silenced

Yes

ATS Switch device

Optional

Voltage regulator

No

Engine manufacturer

Perkins
